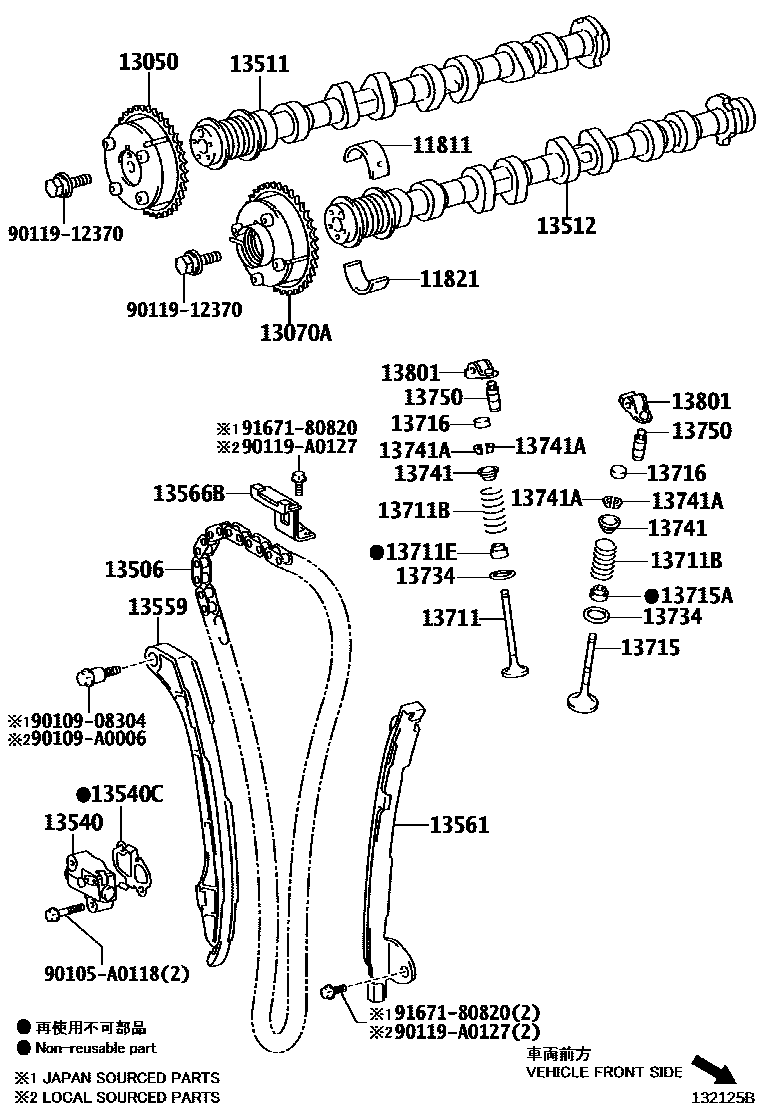

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
(L)
(J)
11821BEARING, CAMSHAFT, NO.2
(L)
(J)
13050GEAR ASSY, CAMSHAFT TIMING
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
13506CHAIN SUB-ASSY
*212 OR *364
13511CAMSHAFT
sub13501-36050
13512CAMSHAFT, NO.2
sub13502-36030
13540TENSIONER ASSY, CHAIN, NO.1
sub13540-0V031
13540CGASKET(FOR CHAIN TENSIONER)
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13566BGUIDE, TIMING CHAIN
13711VALVE, INTAKE
(J)
13711BSPRING, COMPRESSION(FOR INNER)
(J)
(L)
13711ESEAL, INTAKE VALVE STEM OIL
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
(L)
(J)
13741ALOCK, VALVE SPRING RETAINER
(J),*212 OR *364
(L),*212 OR *364
13750ADJUSTER ASSY, VALVE LASH
sub13750-0P040
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
90105A0118
main90105-A0118
9010908304
main90109-08304
90109A0006
main90109-A0006
9011912370
main90119-12370
90119A0127
main90119-A0127
9167180820
main91671-80820
29 parts on this diagram · 1 diagram in section
