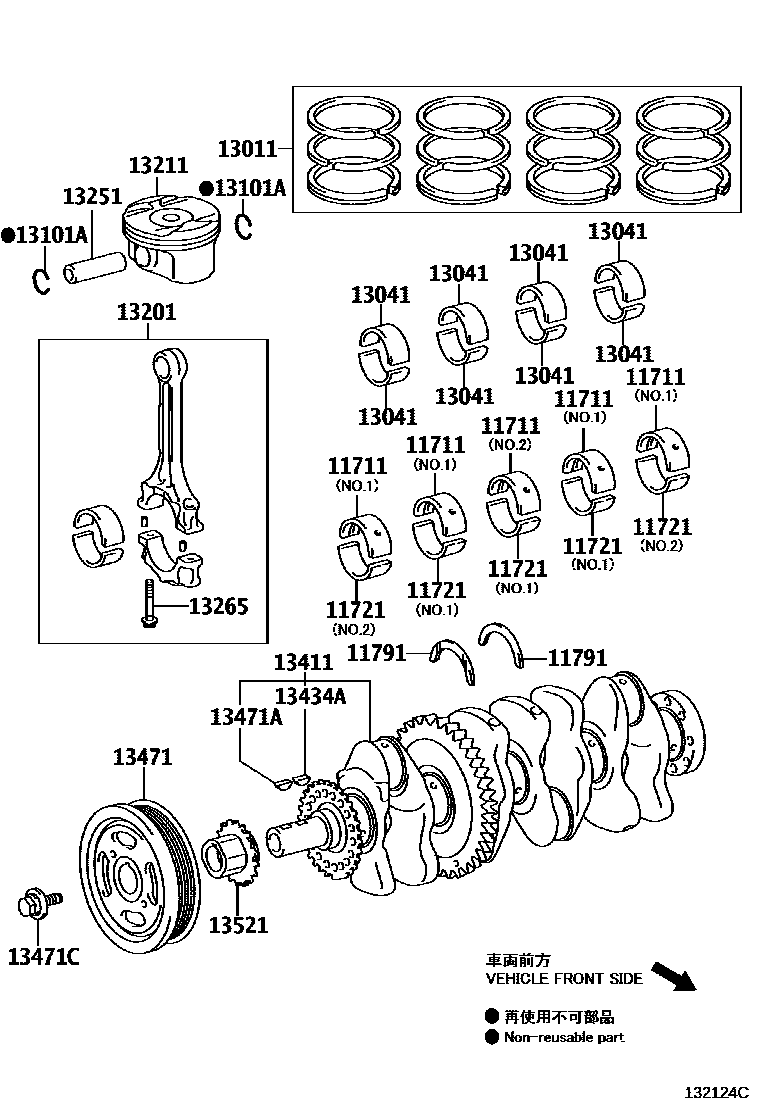

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK 1,(L),NO.1,2 REFER R/M
MARK 2,(L),NO.1,2 REFER R/M
MARK 3,(L),NO.1,2 REFER R/M
MARK 4,(L),NO.1,2 REFER R/M
MARK 1,(J),NO.1,2 REFER R/M
MARK 2,(J),NO.1,2 REFER R/M
MARK 3,(J),NO.1,2 REFER R/M
MARK 4,(J),NO.1,2 REFER R/M
11721BEARING, CRANKSHAFT, NO.2
MARK 1,(L),NO.1,2 REFER R/M
MARK 2,(L),NO.1,2 REFER R/M
MARK 3,(L),NO.1,2 REFER R/M
MARK 4,(L),NO.1,2 REFER R/M
MARK 1,(J),NO.1,2 REFER R/M
MARK 2,(J),NO.1,2 REFER R/M
MARK 3,(J),NO.1,2 REFER R/M
MARK 4,(J),NO.1,2 REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
13011RING SET, PISTON
STD
13041BEARING, CONNECTING ROD
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13211PISTON
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13251PIN, PISTON
MARK A,(J),REFER R/M
MARK B,(J),REFER R/M
MARK C,(J),REFER R/M
13265BOLT, CONNECTING ROD
13411CRANKSHAFT
sub13401-36011
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
*212 OR *364
(J),*212 OR *364
(L),*212 OR *364
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L)
(J)
16 parts on this diagram · 1 diagram in section
