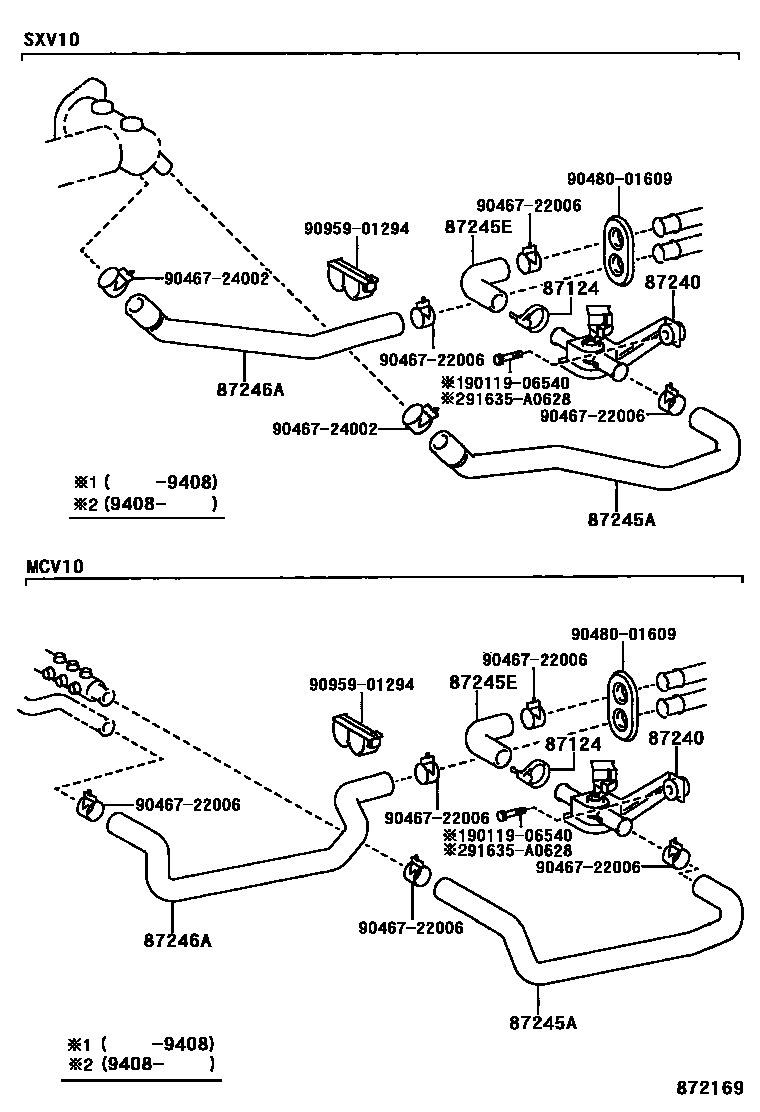

HEATING & AIR CONDITIONING - WATER PIPING

87124CLAMP, HEATER

main87124-28030iMCV10,SXV10..NAP199209-199511

main90467-22004iMCV10,SXV10..NAP199603-199607

sub90467-21010

main90467-22006iMCV10,SXV10..NAP199511-199603

sub90467-21010

87240VALVE ASSY, HEATER WATER

main87240-06010iMCV10,SXV10..NAP199209-199607

87245AHOSE, HEATER WATER, INLET A

main87245-06030iSXV10..NAP199209-199607

sub87245-33070

main87245-06060iMCV10..NAP199309-199607

87245EHOSE, HEATER WATER, INLET E

main87245-06050iMCV10,SXV10..NAP199209-199607

87246AHOSE, HEATER WATER, OUTLET A

main87245-06040iSXV10..NAP199209-199607

sub87245-33090

main87245-06070iMCV10..NAP199309-199607

9011906540

main90119-06540

9046722006

main90467-22006

9046724002

main90467-24002

9048001609

main90480-01609

9095901294

main90959-01294

91635A0628

main91635-A0628

11 parts on this diagram · 1 diagram in section
