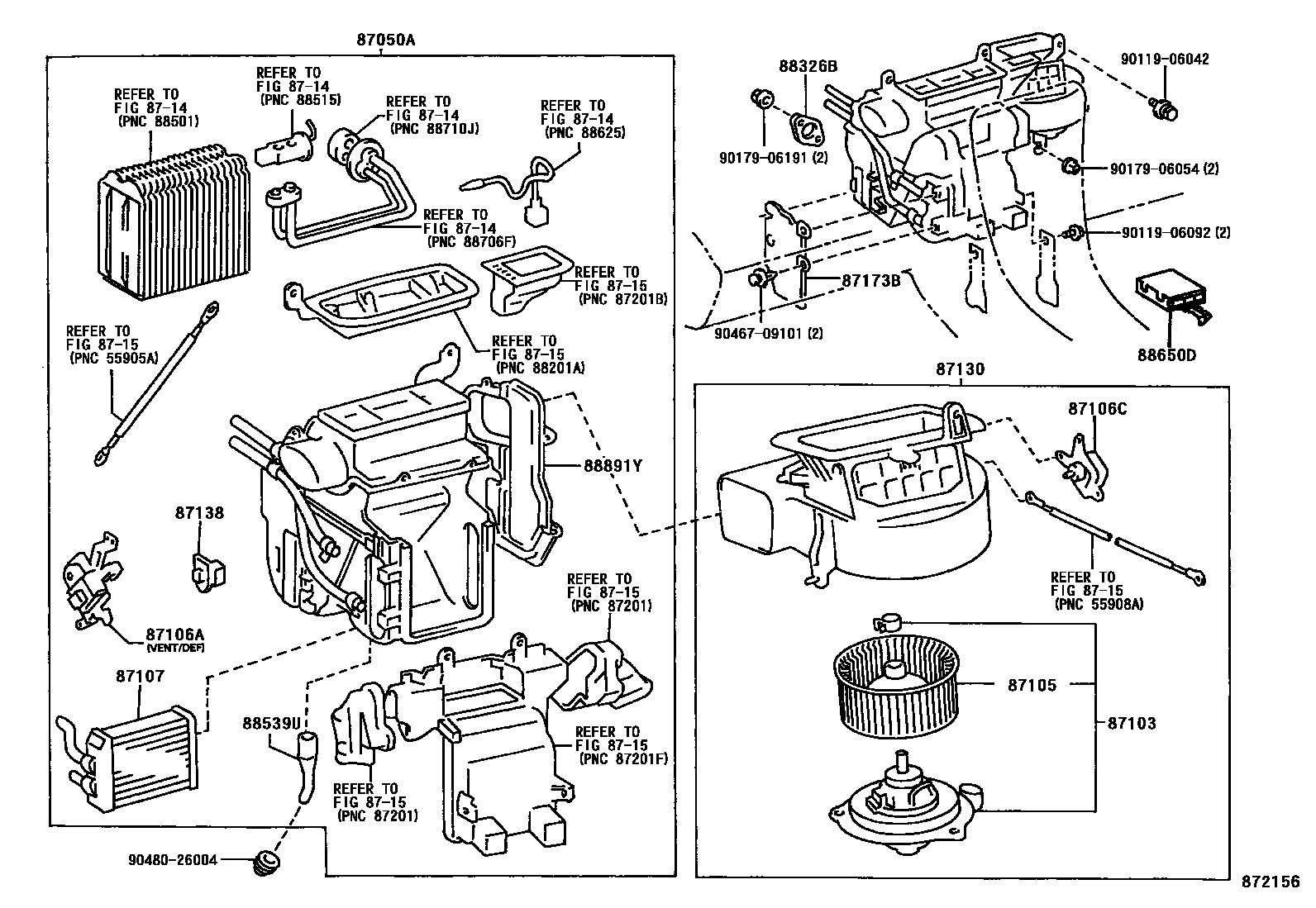

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87050ARADIATOR ASSY, AIR CONDITIONER

main87050-06020iSXV10..NAP199209-199309

main87050-06100iMCV10,SXV10..NAP..(DX,LE,SE)199309-199607

sub87050-33270

main87050-06110iMCV10,SXV10..NAP..XE199309-199607

sub87050-33310

main87050-06140iSXV10..NAP..WG199309-199607

sub87050-33290

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-06010iMCV10,SXV10..NAP199209-199507

sub87103-06011

main87103-06011iMCV10,SXV10..NAP199507-199607

sub87103-33021

87105FAN SUB-ASSY, HEATER BLOWER

main87105-06010iMCV10,SXV10..NAP199209-199507

87106ASERVO SUB-ASSY, DAMPER

main87106-06010iMCV10,SXV10..NAP199209-199607

sub87106-33030

87106CSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-06030iMCV10,SXV10..NAP..XE199309-199607

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-06010iMCV10,SXV10..NAP199209-199607

87130BLOWER ASSY, HEATER, FRONT

main87130-06010iSXV10..NAP..WG199209-199607

sub87130-33030

main87130-06020iMCV10,SXV10..NAP..XE199309-199607

sub87130-33040

main87130-06030iMCV10,SXV10..NAP..(DX,LE,SE)199309-199607

sub87130-33080

87138RESISTOR, HEATER BLOWER

main87138-06010iMCV10,SXV10..NAP..(DX,GL,LE,SE,XL)199209-199607

main87138-06020iMCV10,SXV10..NAP..XE199309-199607

sub87138-33020

8714

8715

87173BPROTECTOR, HEATER

main87173-06010iMCV10,SXV10..NAP199209-199607

sub87173-33010

88326BPLATE, COVER

main88326-06010iMCV10,SXV10..NAP..(GL,XE,XL)199209-199607

88539UHOSE, COOLER DRAIN

main88539-06010iMCV10,SXV10..NAP199209-199607

88650DAMPLIFIER ASSY

main88650-06020iSXV10..NAP199209-199309

sub88650-33020

main88650-06030iMCV10..NAP199309-199607

sub88650-33041

main88650-06040iSXV10..NAP199309-199607

sub88650-33050

88891YCOVER, COOLER,NO.1

main88891-06010iMCV10,SXV10..NAP199209-199408

main88891-06010iMCV10,SXV10..NAP199408-199607

*ND USA

main88891-33030iMCV10,SXV10..NAP199408-199607

*ND

9011906042

main90119-06042

9011906092

main90119-06092

9017906054

main90179-06054

9017906191

main90179-06191

9046709101

main90467-09101

9048026004

main90480-26004

21 parts on this diagram · 1 diagram in section
