AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-06020iMCV10,SXV10..NAP..SED199309-199607

TRWTED

main89170-33020iMCV10,SXV10..NAP..SED199309-199607

NIPPONDENSO

sub89170-06020

89173SENSOR, AIRBAG, FRONT

main89173-09050iMCV10,SXV10..NAP..SED199309-199607

RH

main89173-09060iMCV10,SXV10..NAP..SED199309-199607

LH

89178BRACKET, AIRBAG, NO.2

main89178-09010iMCV10,SXV10..NAP..SED199309-199508

main89178-09010iMCV10,SXV10..NAP..SED199508-199607

KYOHO USA

main89178-39015iMCV10,SXV10..NAP..SED199508-199607

KYOHO

9011908744

main90119-08744

9011908803

main90119-08803

9014980026

main90149-80026

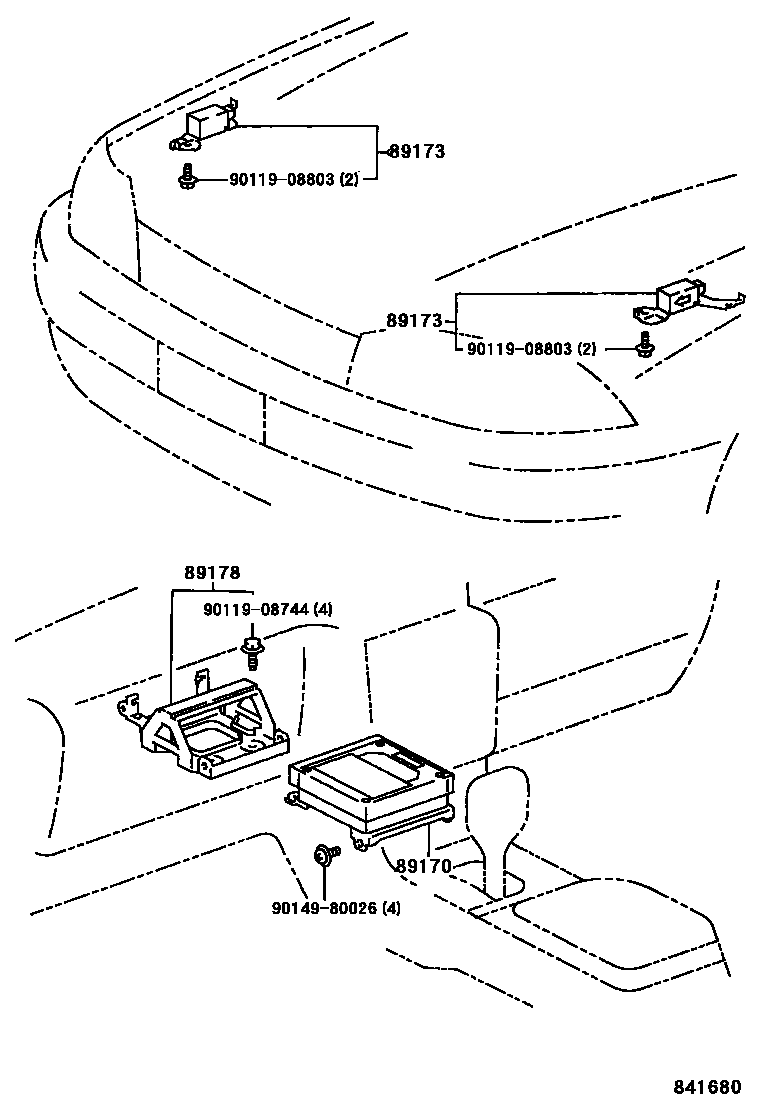

6 parts on this diagram · 1 diagram in section
