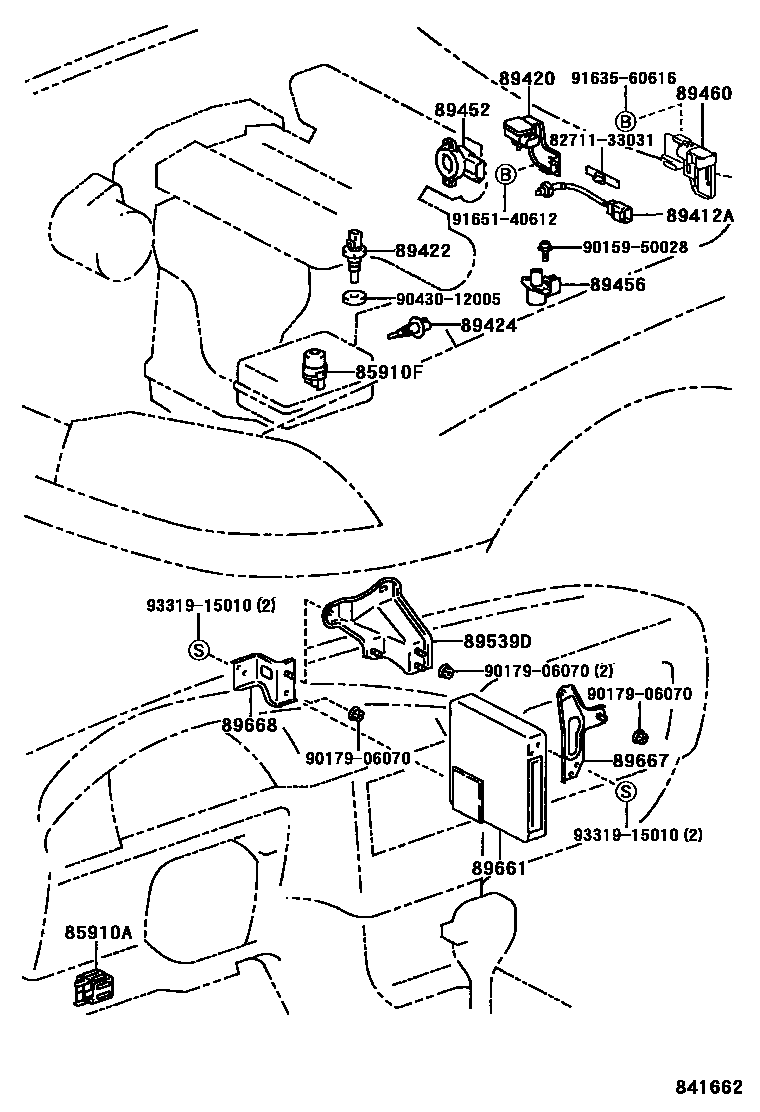

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-33010iMCV10,SXV10..NAP199209-199607

85910FRELAY, COMPUTER (FOR EFI)

main90084-98009iMCV10,SXV10..NAP199408-199607

BOSCH

main90987-02004iSXV10..NAP199209-199309

main90987-02009iMCV10,SXV10..NAP..SED199408-199607

MARUCO

main90987-02009iMCV10,SXV10..NAP..SED199408-199607

MARUKO

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-33040iSXV10..NAP..SED199309-199408

sub89412-33030

main89412-33040iSXV10..NAP..SED199408-199508

MATSUSHITA

sub89412-33030

main89412-33050iMCV10..NAP199309-199607

89420SENSOR ASSY, VACUUM

main89420-06010iSXV10..NAP199209-199607

MATSUSHITA

main89420-06020iSXV10..NAP199209-199607

NIPPONDENSO

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iSXV10..NAP199209-199607

main89422-35010iMCV10..NAP199309-199607

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iSXV10..NAP199209-199607

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-06010iSXV10..NAP199309-199408

sub89452-22090

main89452-22090iSXV10..NAP199410-199607

main89452-22090iMCV10..NAP199408-199410

AISIN

main89452-22090iMCV10..NAP199408-199410

AISAN

main89452-32060iMCV10..NAP199309-199607

main89452-33010iSXV10..NAP199209-199309

sub89452-22090

sub89452-32060

89456RESISTOR, VARIABLE

main89456-50010iSXV10..NAP..WG199209-199607

89460SENSOR ASSY, VAPOR PRESSURE

main89460-33020iSXV10..NAP..SED199508-199607

89539DBRACKET, COMPUTER

main89539-33050iMCV10,SXV10..NAP199309-199607

89661COMPUTER, ENGINE CONTROL

main89661-06150iSXV10..NAP..SED199309-199508

main89661-06180iMCV10..NAP..XE199309-199408

main89661-06190iMCV10..NAP..SE199309-199408

main89661-06220iMCV10..NAP199408-199508

main89661-06250iMCV10..NAP199508-199607

main89661-06310iSXV10..NAP..SED199508-199607

sub89661-06311

main89661-33230iSXV10..NAP..MTM199209-199408

main89661-33240iSXV10..NAP..ATM..GL199209-199408

main89661-33510iSXV10..NAP..ATM..GL199408-199607

main89661-33530iSXV10..NAP..MTM199408-199607

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-06030iMCV10,SXV10..NAP..SED199309-199408

main89667-33010iSXV10..NAP199209-199309

main89667-33050iMCV10,SXV10..NAP199309-199607

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-06030iSXV10..NAP..SED199309-199607

main89668-06040iMCV10..NAP199309-199408

main89668-33010iSXV10..NAP199209-199309

main89668-33040iSXV10..NAP..WG199309-199607

main89668-33050iMCV10..NAP199408-199511

8271133031WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33031

9015950028

main90159-50028

9017906070

main90179-06070

9043012005

main90430-12005

9163560616

main91635-60616

9165140612

main91651-40612

9331915010

main93319-15010

20 parts on this diagram · 2 diagrams in section
