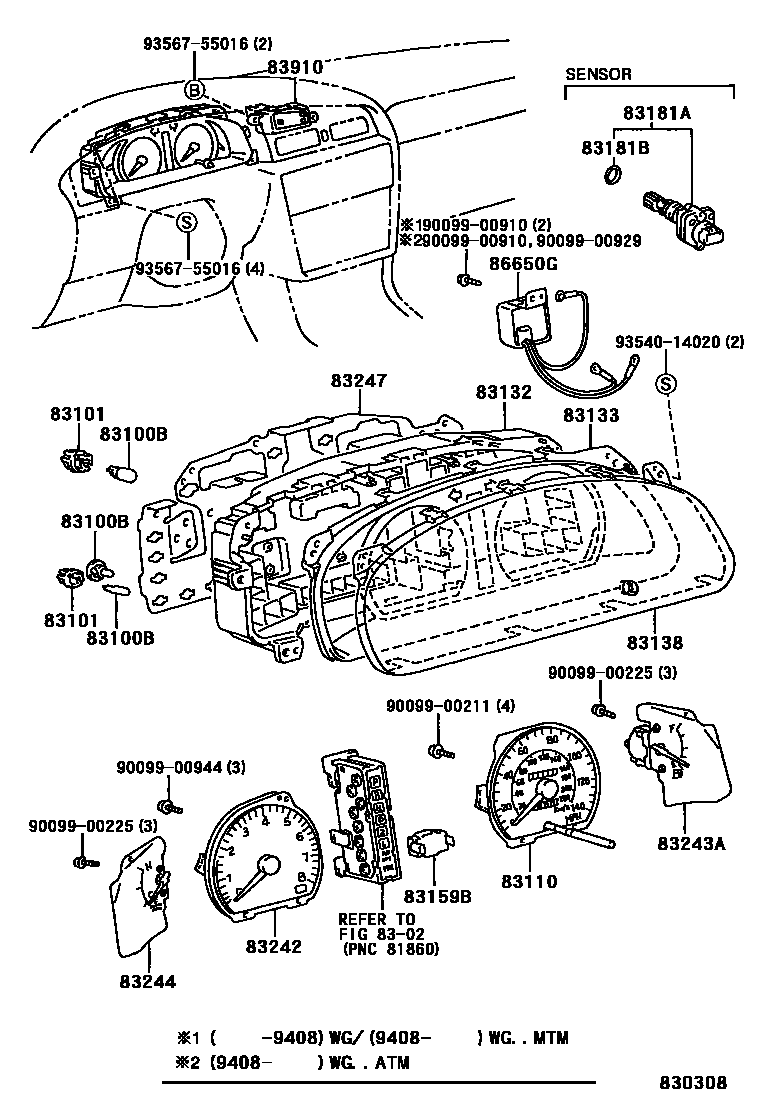

METER

0001 1 0002 1

8302

83100BBULB, COMBINATION METER, NO.1

main83109-24020iSXV10..NAP..WG199209-199408

12V3.4W W(GREEN CAP),TYPE D:REFER TO ILLUSTRATION

main83109-30070iMCV10,SXV10..NAP199209-199607

14V 2.0W,W/O SOCKET,TYPE A:REFER TO ILLUSTRATION

main83119-06010iMCV10,SXV10..NAP..SED199408-199607

14V 2.0W,TYPE B:REFER TO ILLUSTRATION

main83119-06020iMCV10,SXV10..NAP199408-199607

14V 2.0W,TYPE C:REFER TO ILLUSTRATION

main83119-24290iMCV10,SXV10..NAP..SED199309-199607

14V 3.78W,TYPE D:REFER TO ILLUSTRATION

main83119-24310iMCV10,SXV10..NAP..SED199309-199408

14V 2.0W,TYPE C:REFER TO ILLUSTRATION

sub83119-24470

main83119-24330iMCV10,SXV10..NAP..SED199309-199408

14V 2.0W,TYPE B:REFER TO ILLUSTRATION

main83119-24470iSXV10..NAP..WG199209-199408

12V 1.4W,TYPE C:REFER TO ILLUSTRATION

main83119-32010iMCV10,SXV10..NAP199209-199607

14V 3.0W,TYPE E:REFER TO ILLUSTRATION

main90981-11018iSXV10..NAP..DX199209-199607

12V 1.2W W/O SOCKET,TYPE F:REFER TO ILLUSTRATION

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iMCV10,SXV10..NAP199309-199607

14V 3.78W

main83101-14030iSXV10..NAP..WG199209-199408

14 3.78W

main83101-14040iSXV10..NAP..(LE,XE)199209-199607

OD=11.3 BLACK

main83101-14040iSXV10..NAP..DX199309-199408

OD=11.3 BALCK

main83101-32020iMCV10,SXV10..NAP199209-199607

OD=12.2 BLUE

83110SPEEDOMETER ASSY

main83110-06020iMCV10,SXV10..NAP..SED199309-199607

main83110-06070iSXV10..NAP..WG199209-199607

83132CASE, COMBINATION METER

main83132-06010iMCV10,SXV10..NAP199408-199607

main83132-33070iMCV10,SXV10..NAP199209-199408

83133PLATE, COMBINATION METER, NO.1

main83133-06010iMCV10,SXV10..NAP..ATM..(GL,LE,XE)199408-199607

main83133-06020iSXV10..NAP..DX;SXV10..NAP..MTM199408-199607

main83133-33030iMCV10,SXV10..NAP..ATM..(GL,LE,SE,XE)199209-199408

main83133-33050iSXV10..NAP..DX;SXV10..NAP..MTM199209-199408

83138GLASS, SPEEDOMETER

main83138-06010iMCV10,SXV10..NAP199408-199607

main83138-33030iMCV10,SXV10..NAP199209-199408

83159BRELAY ASSY, METER

main83159-22170iMCV10,SXV10..NAP..SED199309-199607

83181ASENSOR, SPEEDOMETER

main83181-12030iSXV10..NAP..MTM199209-199607

main83181-12040iMCV10,SXV10..NAP..ATM199209-199607

main83181-32030iSXV10..NAP..MTM199408-199506

sub83181-12030

83181BRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018iMCV10,SXV10..NAP199209-199607

83242TACHOMETER ASSY, ENGINE

main83242-06030iSXV10..NAP199408-199607

main83242-06040iMCV10..NAP199408-199607

main83242-33070iSXV10..NAP199209-199408

main83242-33350iMCV10..NAP199309-199408

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-06010iMCV10,SXV10..NAP199408-199607

main83243-33030iMCV10,SXV10..NAP199209-199408

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-06020iMCV10,SXV10..NAP..SED199408-199607

main83244-06030iSXV10..NAP..WG199408-199607

main83244-33130iSXV10..NAP..WG199209-199408

main83244-33190iMCV10,SXV10..NAP..SED199309-199408

83247PLATE, METER CIRCUIT

main83247-06010iMCV10,SXV10..NAP..(LE,XE)199408-199607

main83247-06020iSXV10..NAP..DX199408-199607

main83247-06030iSXV10..NAP..WG199408-199607

main83247-33110iMCV10,SXV10..NAP..(LE,SE,XE)199309-199408

main83247-33150iSXV10..NAP..DX199309-199408

main83247-33450iSXV10..NAP..WG199209-199408

83910CLOCK ASSY

main83910-06010iMCV10,SXV10..NAP199209-199408

main83910-06011iMCV10,SXV10..NAP199408-199607

86650GBUZZER ASSY

main86650-33010iSXV10..NAP..WG199209-199607

9009900211

main90099-00211

9009900225

main90099-00225

9009900910

main90099-00910

9009900929

main90099-00929

9009900944

main90099-00944

9354014020

main93540-14020

9356755016

main93567-55016

23 parts on this diagram · 2 diagrams in section
