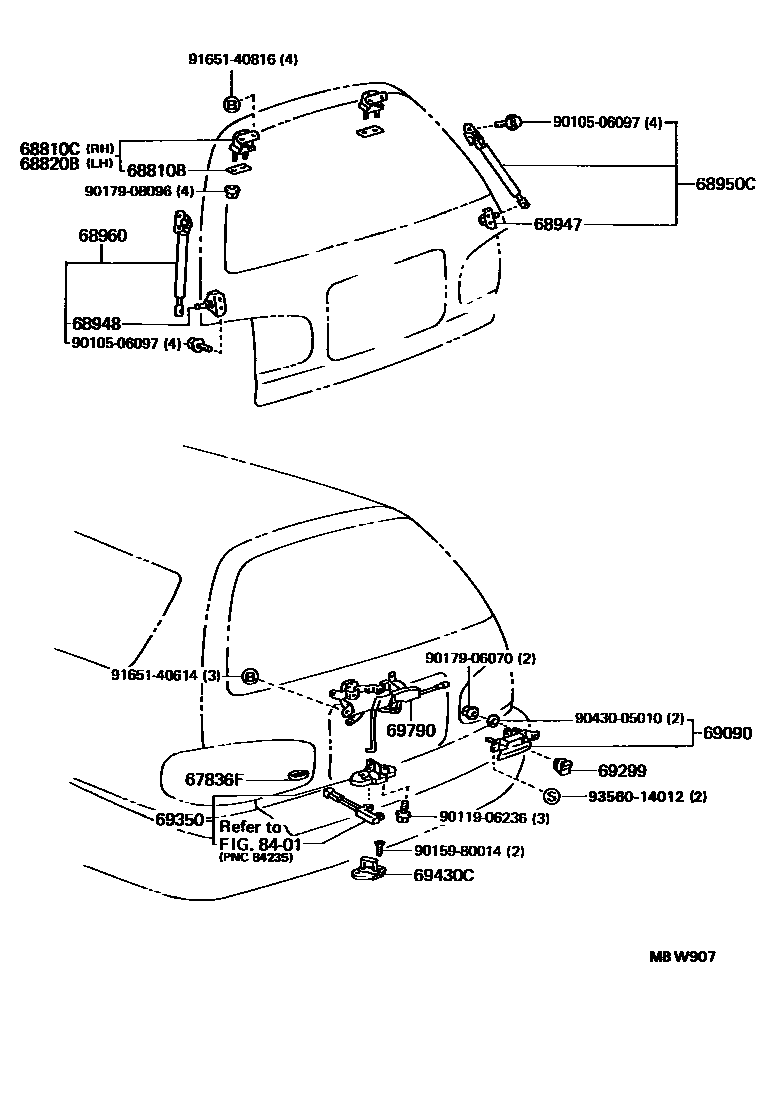

BACK DOOR LOCK & HANDLE
67836FCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
68810BPAD, BACK DOOR HINGE
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
69090HANDLE ASSY, BACK DOOR, OUTSIDE
69299GROMMET, BACK DOOR HANDLE
69350LOCK ASSY, BACK DOOR
69790CONTROL ASSY, BACK DOOR LOCK
8401
9010506097
main90105-06097
9011906236
main90119-06236
9015980014
main90159-80014
9017906070
main90179-06070
9017908096
main90179-08096
9043005010
main90430-05010
9165140614
main91651-40614
9165140816
main91651-40816
9356014012
main93560-14012
23 parts on this diagram · 1 diagram in section
