REAR DOOR PANEL & GLASS

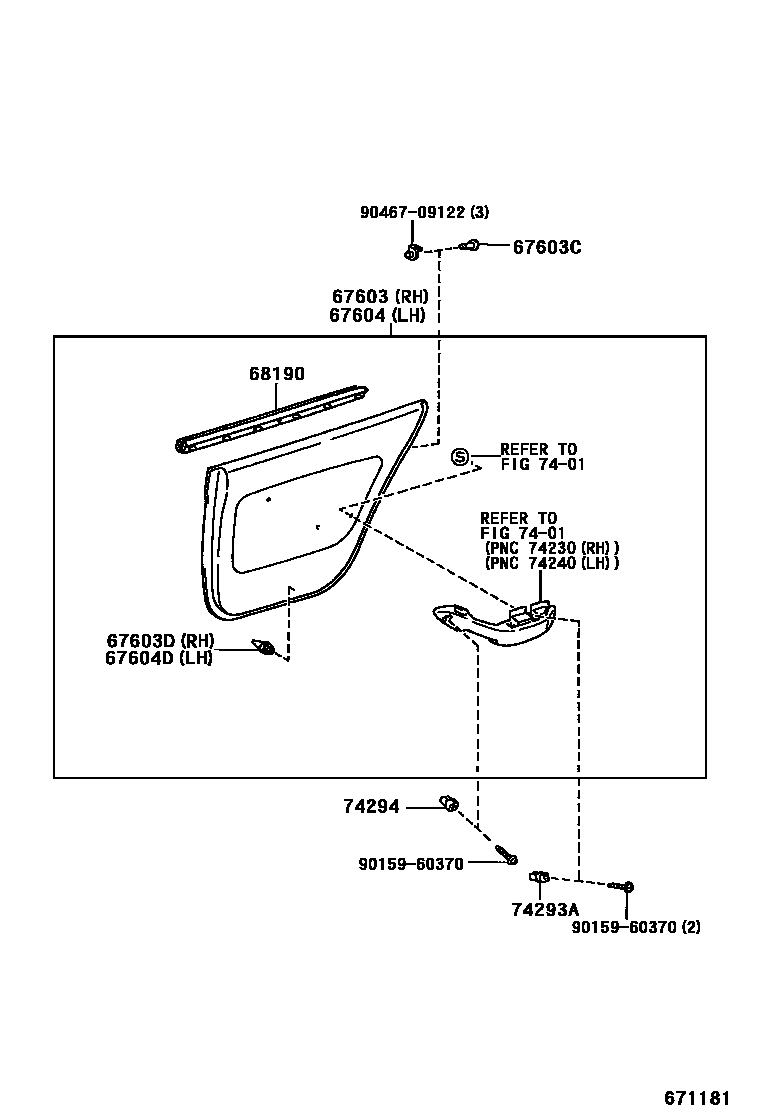

Parts diagram
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
main67630-06021-B0i199309-199508
MADIUM GRAY,TRIM1#
sub67630-33070
sub67630-06021
main67630-06021-E0i199309-199508
OAK,TRIM4#
sub67630-33070
sub67630-06021
main67630-06021-K0i199309-199508
TAUPE,TRIM9#
sub67630-33070
sub67630-06021
main67630-06022-B2i199508-199607
MD.GRAY,TRIM1#
main67630-06022-E2i199508-199607
OAK,TRIM4#
main67630-06022-K2i199508-199607
TAUPE,TRIM9#
main67630-06041-B0i199309-199408
MEDIUM GRAY,TRIM1#
main67630-06041-E0i199309-199408
OAK,TRIM4#
main67630-06041-K0i199309-199408
TAUPE,TRIM9#
main67630-06051-B0i199309-199408
MEDIUM GRAY,TRIM1#
main67630-06051-E0i199309-199408
OAK,TRIM4#
main67630-06051-K0i199309-199408
TAUPE,TRIM9#
main67630-06052-B1i199408-199607
MD.GRAY,TRIM1#
sub67630-06052
main67630-06052-E1i199408-199607
OAK,TRIM4#
sub67630-06052
main67630-06052-K1i199408-199607
TAUPE,TRIM9#
sub67630-06052
main67630-06061-B0i199309-199408
MEDIUM GRAY,TRIM1#
main67630-06061-E0i199309-199408
OAK,TRIM4#
main67630-06061-K0i199309-199408
TAUPE,TRIM9#
main67630-06062-B1i199408-199607
MD.GRAY,TRIM1#
main67630-06062-E1i199408-199607
OAK,TRIM4#
main67630-06062-K1i199408-199607
TAUPE,TRIM9#
main67630-06071-B0i199309-199607
W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
sub67630-33220
sub67630-06071
main67630-06071-E0i199309-199607
W(LEATHER SEAT)-*104,OAK,TRIM4#
sub67630-33220
sub67630-06071
main67630-06100-B0i199209-199309
MEDIUM GRAY,TRIM1#
main67630-06100-E0i199209-199309
OAK,TRIM4#
main67630-06100-J0i199209-199309
DARK BLUE,TRIM8#
main67630-06101-B0i199309-199508
MADIUM GRAY,TRIM1#
sub67630-06101
main67630-06101-E0i199309-199508
OAK,TRIM4#
sub67630-06101
main67630-06102-B2i199508-199607
MD.GRAY,TRIM1#
main67630-06102-E2i199508-199607
OAK,TRIM4#
main67630-06130-B0i199209-199309
MEDIUM GRAY,TRIM1#
main67630-06130-E0i199209-199309
OAK,TRIM4#
main67630-06130-J0i199209-199309
DARK BLUE,TRIM8#
main67630-06131-B0i199309-199408
MEDIUM GRAY,TRIM1#
main67630-06131-E0i199309-199408
OAK,TRIM4#
main67630-06132-B1i199408-199607
MD.GRAY,TRIM1#
main67630-06132-E1i199408-199607
OAK,TRIM4#
67603CCAP(FOR REAR DOOR TRIM BOARD)
main90467-07066-B0i199209-199607
MEDIUM GRAY,TRIM1#
sub90467-07066
main90467-07066-E0i199209-199607
OAK,TRIM4#
sub90467-07066
main90467-07066-J0i199209-199309
DARK BLUE,TRIM8#
sub90467-07066
main90467-07066-K0i199309-199607
TAUPE,TRIM9#
sub90467-07066
67603DRETAINER, REAR DOOR TRIM, RH
main67771-06070i199209-199607
sub67771-06030
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
main67640-06021-B0i199309-199508
MADIUM GRAY,TRIM1#
sub67640-06021
sub67640-33070
main67640-06021-E0i199309-199508
OAK,TRIM4#
sub67640-06021
sub67640-33070
main67640-06021-K0i199309-199508
TAUPE,TRIM9#
sub67640-06021
sub67640-33070
main67640-06022-B2i199508-199607
MD.GRAY,TRIM1#
main67640-06022-E2i199508-199607
OAK,TRIM4#
main67640-06022-K2i199508-199607
TAUPE,TRIM9#
main67640-06041-B0i199309-199408
MEDIUM GRAY,TRIM1#
main67640-06041-E0i199309-199408
OAK,TRIM4#
main67640-06041-K0i199309-199408
TAUPE,TRIM9#
main67640-06051-B0i199309-199408
MEDIUM GRAY,TRIM1#
main67640-06051-E0i199309-199408
OAK,TRIM4#
main67640-06051-K0i199309-199408
TAUPE,TRIM9#
main67640-06052-B1i199408-199607
MD.GRAY,TRIM1#
main67640-06052-E1i199408-199607
OAK,TRIM4#
main67640-06052-K1i199408-199607
TAUPE,TRIM9#
main67640-06061-B0i199309-199408
MEDIUM GRAY,TRIM1#
main67640-06061-E0i199309-199408
OAK,TRIM4#
main67640-06061-K0i199309-199408
TAUPE,TRIM9#
main67640-06062-B1i199408-199607
MD.GRAY,TRIM1#
main67640-06062-E1i199408-199607
OAK,TRIM4#
main67640-06062-K1i199408-199607
TAUPE,TRIM9#
main67640-06071-B0i199309-199607
W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
sub67640-33220
sub67640-06071
main67640-06071-E0i199309-199607
W(LEATHER SEAT)-*104,OAK,TRIM4#
sub67640-33220
sub67640-06071
main67640-06100-B0i199209-199309
MEDIUM GRAY,TRIM1#
main67640-06100-E0i199209-199309
OAK,TRIM4#
main67640-06100-J0i199209-199309
DARK BLUE,TRIM8#
main67640-06101-B0i199309-199508
MADIUM GRAY,TRIM1#
sub67640-06101
main67640-06101-E0i199309-199508
OAK,TRIM4#
sub67640-06101
main67640-06102-B2i199508-199607
MD.GRAY,TRIM1#
main67640-06102-E2i199508-199607
OAK,TRIM4#
main67640-06130-B0i199209-199309
MEDIUM GRAY,TRIM1#
main67640-06130-E0i199209-199309
OAK,TRIM4#
main67640-06130-J0i199209-199309
DARK BLUE,TRIM8#
main67640-06131-B0i199309-199408
MEDIUM GRAY,TRIM1#
main67640-06131-E0i199309-199408
OAK,TRIM4#
main67640-06132-B1i199408-199607
MD.GRAY,TRIM1#
main67640-06132-E1i199408-199607
OAK,TRIM4#
67604DRETAINER, REAR DOOR TRIM, LH
main67771-06070i199209-199607
sub67771-06030
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
main68190-06010i199309-199408
RH
main68190-06020i199209-199607
main68190-06050i199408-199607
RH
main68240-06030i199309-199408
LH
sub68240-06040
main68240-06040i199408-199607
LH
7401
74293APLATE, REAR DOOR ARMREST, NO.1
main74293-32010i199209-199607
74294PLATE, REAR DOOR ARMREST, NO.2
main74294-32010i199209-199607
9015960370
main90159-60370
9046709122
main90467-09122

11 parts on this diagram · 3 diagrams in section
