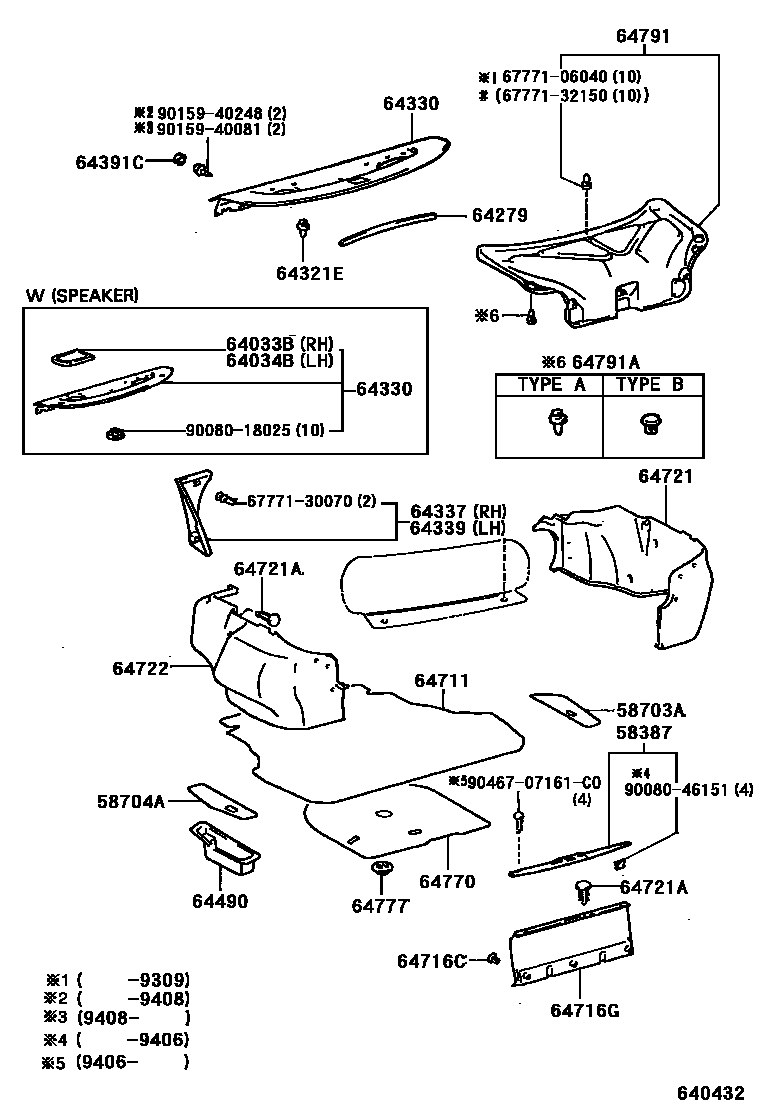

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-06010-C0iMCV10,SXV10..NAP..SED199309-199401

BLACK,TRIM1#,4#,9#

sub58387-06011

sub90467-07161

main58387-06011-C0iMCV10,SXV10..NAP..SED199401-199607

BLACK,TRIM1#,4#,9#

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-06010iMCV10,SXV10..NAP..SED199309-199607

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-06010iMCV10,SXV10..NAP..(DX,SE)199309-199607

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-06020-B1iMCV10,SXV10..NAP..SED199309-199408

MEDIUM GRAY,TRIM1#

main64033-06020-E0iMCV10,SXV10..NAP..SED199309-199408

OAK,TRIM4#

main64033-06020-K1iMCV10,SXV10..NAP..SED199309-199408

TAUPE,TRIM9#

main64033-06040-B0iMCV10,SXV10..NAP..SED199408-199607

MD.GRAY,TRIM1#

main64033-06040-E0iMCV10,SXV10..NAP..SED199408-199607

OAK,TRIM4#

main64033-06040-K0iMCV10,SXV10..NAP..SED199408-199607

TAUPE,TRIM9#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-06020-B1iMCV10,SXV10..NAP..SED199309-199408

MEDIUM GRAY,TRIM1#

main64034-06020-E0iMCV10,SXV10..NAP..SED199309-199408

OAK,TRIM4#

main64034-06020-K1iMCV10,SXV10..NAP..SED199309-199408

TAUPE,TRIM9#

main64034-06040-B0iMCV10,SXV10..NAP..SED199408-199607

MD.GRAY,TRIM1#

main64034-06040-E0iMCV10,SXV10..NAP..SED199408-199607

OAK,TRIM4#

main64034-06040-K0iMCV10,SXV10..NAP..SED199408-199607

TAUPE,TRIM9#

64279PROTECTOR, ROOM PARTITION

main64279-33012-C0iMCV10,SXV10..NAP..SED199309-199408

BLACK,TRIM1#,4#,9#

sub64279-33012

main64279-33012-C1iMCV10,SXV10..NAP..SED199408-199607

BLACK,TRIM1#,4#,9#

sub64279-33012

64321EBRACKET, PACKAGE TRAY TRIM

main64321-32010iMCV10,SXV10..NAP..SED199309-199607

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-06030-B0iMCV10..NAP..SE199309-199408

MEDIUM GRAY,TRIM1#,(L)

main64330-06030-E0iMCV10..NAP..SE199309-199408

OAK,TRIM4#,(L)

main64330-06030-K0iMCV10..NAP..SE199309-199408

TAUPE,TRIM9#,(L)

main64330-06040-B0iMCV10,SXV10..NAP..(DX,LE,XE)199309-199408

MEDIUM GRAY,TRIM1#,(L)

main64330-06040-E0iMCV10,SXV10..NAP..(DX,LE,XE)199309-199408

OAK,TRIM4#,(L)

main64330-06040-K0iMCV10,SXV10..NAP..(DX,LE,XE)199309-199408

TAUPE,TRIM9#,(L)

main64330-06041-B0iMCV10,SXV10..NAP..SED199408-199607

MEDIUM GRAY,TRIM1#

main64330-06041-E0iMCV10,SXV10..NAP..SED199408-199607

OAK,TRIM4#

main64330-06041-K0iMCV10,SXV10..NAP..SED199408-199607

TAUPE,TRIM9#

main64330-33080-E0iMCV10..NAP..SE199309-199311

OAK,TRIM4#,(J)

sub64330-33080

main64330-33080-K0iMCV10..NAP..SE199309-199311

TAUPE,TRIM9#,(J)

sub64330-33080

main64330-33080-S0iMCV10..NAP..SE199309-199311

MEDIUM GRAY,TRIM1#,(J)

sub64330-33080

main64330-33090-E0iMCV10,SXV10..NAP..(DX,LE,XE)199309-199311

OAK,TRIM4#,(J)

sub64330-33090

main64330-33090-K0iMCV10,SXV10..NAP..(DX,LE,XE)199309-199311

TAUPE,TRIM9#,(J)

sub64330-33090

main64330-33090-S0iMCV10,SXV10..NAP..(DX,LE,XE)199309-199311

MEDIUM GRAY,TRIM1#,(J)

sub64330-33090

64337GARNISH, PACKAGE TRAY TRIM, RH

main64337-06010-C0iMCV10,SXV10..NAP..SED199309-199408

OFF BLACK,TRIM1#,4#,9#

main64337-06011-C1iMCV10,SXV10..NAP..SED199408-199607

BLACK,TRIM1#,4#,9#

64339GARNISH, PACKAGE TRAY TRIM, LH

main64339-06010-C0iMCV10,SXV10..NAP..SED199309-199408

OFF BLACK,TRIM1#,4#,9#

main64339-06011-C1iMCV10,SXV10..NAP..SED199408-199607

BLACK,TRIM1#,4#,9#

64391CCAP

main90339-10005-B2iMCV10,SXV10..NAP..SED199309-199409

MEDIUM GRAY,TRIM1#

sub90339-10005

main90339-10005-E0iMCV10,SXV10..NAP..SED199309-199409

OAK,TRIM4#

sub90339-10005

main90339-10005-K1iMCV10,SXV10..NAP..SED199309-199409

TAUPE,TRIM9#

sub90339-10005

64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE

main64490-06010-C0iMCV10,SXV10..NAP..(LE,XE)199309-199607

BLACK,TRIM1#,4#,9#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-06010-C0iMCV10,SXV10..NAP..(DX,SE)199309-199501

BLACK,TRIM1#,4#,9#

main64711-06011-C0iSXV10..NAP..DX199501-199607

BLACK,TRIM1#,4#,9#

main64711-06020-C1iMCV10,SXV10..NAP..(LE,XE)199309-199501

OFF BLACK,TRIM1#,4#,9#

main64711-06021-C1iMCV10,SXV10..NAP..(LE,XE)199501-199607

BLACK,TRIM1#,4#,9#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05085-C2iMCV10,SXV10..NAP..SED199309-199607

BLACK,TRIM1#,4#,9#

sub90467-05085

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-06010-C1iMCV10,SXV10..NAP..SED199310-199607

OFF BLACK,TRIM1#,4#,9#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-06010-C0iMCV10,SXV10..NAP..SED199309-199408

BLACK,TRIM1#,4#,9#

main64721-06010-C1iMCV10,SXV10..NAP..SED199408-199607

BLACK,TRIM1#,4#,9#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-C0iMCV10,SXV10..NAP..SED199309-199607

BLACK,TRIM1#,4#,9#

sub90467-07042

sub90467-06175

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-06010-C0iMCV10,SXV10..NAP..SED199309-199408

BLACK,TRIM1#,4#,9#

main64722-06010-C1iMCV10,SXV10..NAP..SED199408-199607

BLACK,TRIM1#,4#,9#

64770COVER ASSY, SPARE WHEEL

main64770-06020iMCV10,SXV10..NAP..SED199309-199607

64777CLAMP, SPARE WHEEL COVER

main64777-32030iMCV10,SXV10..NAP..SED199309-199607

64791COVER, BACK DOOR TRIM

main64791-06011-C1iMCV10,SXV10..NAP..SED199309-199607

OFF BLACK,TRIM1#,4#,9#

64791ACLIP(FOR BACK DOOR TRIM)

main90467-07059-22iMCV10,SXV10..NAP..SED199310-199311

BLACK,TRIM1#,4#,9#,TYPE A

sub90467-07059

main90467-07146iMCV10,SXV10..NAP..SED199311-199607

TYPE A

main90467-08076-C0iMCV10,SXV10..NAP..SED199309-199607

BLACK,TRIM1#,4#,9#,TYPE B

sub90467-08076

6777106040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-06040

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

6777132150WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32150

9008018025

main90080-18025

9008046151

main90080-46151

9015940081

main90159-40081

9015940248

main90159-40248

9046707161C0

main90467-07161C0

30 parts on this diagram · 1 diagram in section
