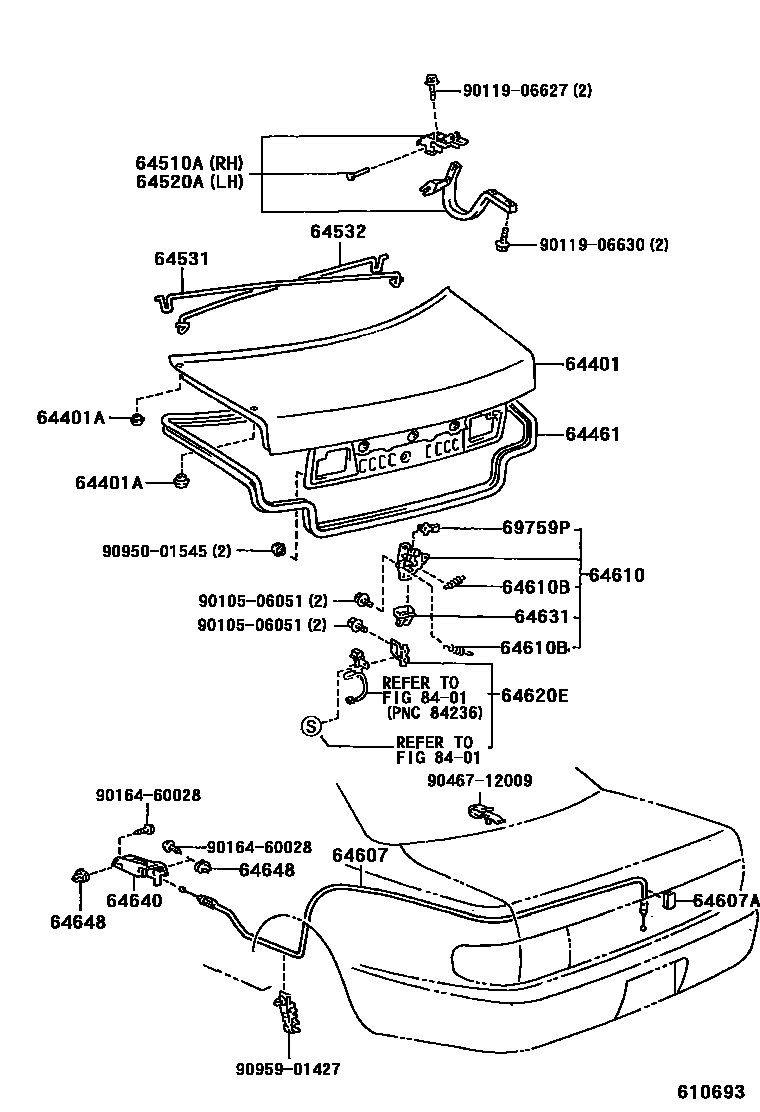

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-06041iSXV10..NAP..DX199309-199311

sub64401-06042

sub75447-06030

main64401-06042iMCV10,SXV10..NAP..(LE,XE)199309-199408

sub64401-06043

main64401-06043iMCV10,SXV10..NAP..SED199408-199607

main64401-06072iMCV10..NAP..SE199309-199408

sub64401-06023

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06059iMCV10,SXV10..NAP..SED199309-199607

FRONT

main90541-19002iMCV10,SXV10..NAP..SED199309-199607

REAR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-06010iMCV10,SXV10..NAP..SED199309-199607

64510AHINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-06010iMCV10,SXV10..NAP..SED199309-199607

64520AHINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-06010iMCV10,SXV10..NAP..SED199309-199607

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-06010iMCV10,SXV10..NAP..(DX,LE,XE)199309-199607

main64531-06020iMCV10..NAP..SE199309-199408

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-06010iMCV10,SXV10..NAP..(DX,LE,XE)199309-199607

main64532-06020iMCV10..NAP..SE199309-199408

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-06010iMCV10,SXV10..NAP..SED199403-199607

main64607-33010iMCV10,SXV10..NAP..SED199309-199403

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-18020iMCV10,SXV10..NAP..SED199309-199607

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-06010iMCV10,SXV10..NAP..SED199309-199607

64610BSPRING, TENSION(FOR LOCK)

main90080-50071iMCV10,SXV10..NAP..SED199309-199408

WD=0.55, CW=16.75

main90080-50071iMCV10,SXV10..NAP..SED199408-199607

WD=0.55,CW=16.75

main90080-50072iMCV10,SXV10..NAP..SED199408-199607

WD=0.55,CW=17.25

main90080-50072iMCV10,SXV10..NAP..SED199309-199408

WD=0.55, CW=17.25

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-06010iMCV10,SXV10..NAP..SED199309-199607

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-06010iMCV10,SXV10..NAP..SED199309-199607

64640OPENER ASSY, LUGGAGE DOOR LOCK

main64640-06010-B0iMCV10,SXV10..NAP..SED199309-199607

MEDIUM GRAY,TRIM1#

main64640-06010-E0iMCV10,SXV10..NAP..SED199309-199607

OAK,TRIM4#

main64640-06010-K0iMCV10,SXV10..NAP..SED199309-199607

TAUPE,TRIM9#

64648GROMMET, LUGGAGE DOOR LOCK OPENER

main64648-32010iMCV10,SXV10..NAP..SED199309-199408

main64648-AC010iMCV10,SXV10..NAP..SED199408-199607

69759PSNAP, DOOR LOCK CONTROL LINK

main69759-06010iMCV10,SXV10..NAP..SED199309-199607

8401

9010506051

main90105-06051

9011906627

main90119-06627

9011906630

main90119-06630

9016460028

main90164-60028

9046712009

main90467-12009

9095001545

main90950-01545

9095901427

main90959-01427

24 parts on this diagram · 1 diagram in section
