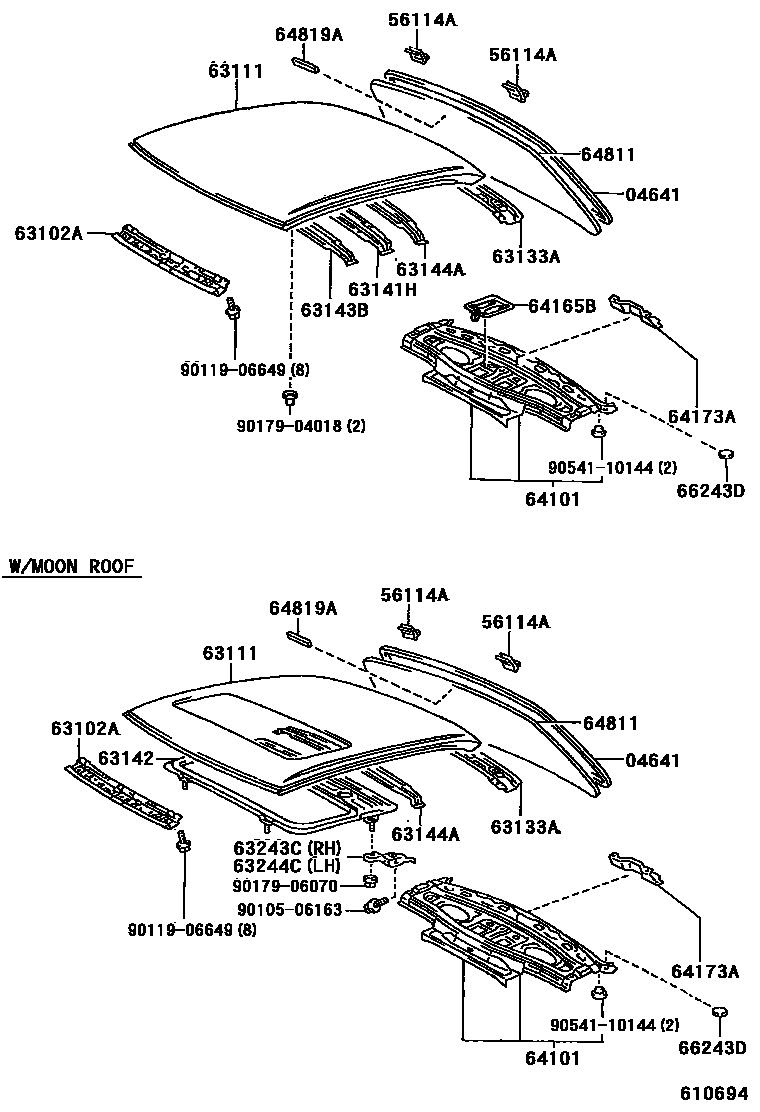

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1

04641DAM KIT, BACK WINDOW GLASS

main04562-12010iMCV10,SXV10..NAP..SED199309-199607

56114ARETAINER, BACK WINDOW GLASS

main56114-20010iMCV10,SXV10..NAP..SED199309-199607

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-06010iMCV10,SXV10..NAP199209-199607

63111PANEL, ROOF

main63111-06010iMCV10,SXV10..NAP..(LE,SE)199309-199607

main63111-06020iMCV10,SXV10..NAP..XE199309-199408

main63111-06020iMCV10,SXV10..NAP..XE199408-199607

W(*SNR)

main63111-06070iSXV10..NAP..GL199408-199410

sub63111-06210

main63111-06070iSXV10..NAP199211-199408

W/O(ANTENNA)

sub63111-06210

main63111-06140iSXV10..NAP199209-199211

W/O(ANTENNA)

sub63111-06070

main63111-06210iSXV10..NAP..GL199410-199607

main63111-06900iSXV10..NAP..DX199309-199607

main63111-06902iSXV10..NAP..WG199209-199408

sub63111-06910

main63111-06910iSXV10..NAP..XL199408-199607

63133AFRAME, BACK WINDOW, UPPER

main63133-33010iMCV10,SXV10..NAP..SED199309-199607

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-06010iSXV10..NAP..WG199209-199607

main63141-33011iMCV10,SXV10..NAP..(DX,LE,SE)199309-199607

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-33900iMCV10,SXV10..NAP..XE199309-199607

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-33010iMCV10,SXV10..NAP..(DX,LE,SE)199309-199607

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63106-06010iSXV10..NAP..WG199209-199607

main63144-33010iMCV10,SXV10..NAP..(DX,LE,SE)199309-199607

main63144-33030iMCV10,SXV10..NAP..XE199309-199408

main63144-33030iMCV10,SXV10..NAP..XE199408-199607

W(MOON ROOF)

63243CBRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH

main63243-33010iMCV10,SXV10..NAP..XE199309-199607

63244CBRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH

main63244-33010iMCV10,SXV10..NAP..XE199309-199607

64101PANEL SUB-ASSY, UPPER BACK

main64101-06030iMCV10,SXV10..NAP..(DX,LE,XE)199309-199408

sub64101-06040

sub64173-33010

main64101-06040iMCV10..NAP..SE199309-199607

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-33010iMCV10,SXV10..NAP..SED199309-199607

64173ABRACKET, HIGH MOUNTING STOP LAMP

main64173-33010iMCV10,SXV10..NAP..SED199408-199607

64811GLASS, BACK WINDOW

main64811-06010iMCV10,SXV10..NAP..SED199309-199607

*EHTT,T=3.5, GREEN

sub64811-06080

64819ASPACER, BACK WINDOW GLASS, NO.2

main64819-33010iMCV10,SXV10..NAP..SED199309-199408

TYPE B

main64819-33010iMCV10,SXV10..NAP..SED199408-199607

66243DPROTECTOR, REAR BODY, NO.1

main66243-20010iMCV10,SXV10..NAP..SED199309-199408

main90950-06063iMCV10,SXV10..NAP..SED199408-199607

9010506163

main90105-06163

9011906649

main90119-06649

9017904018

main90179-04018

9017906070

main90179-06070

9054110144

main90541-10144

22 parts on this diagram · 4 diagrams in section
