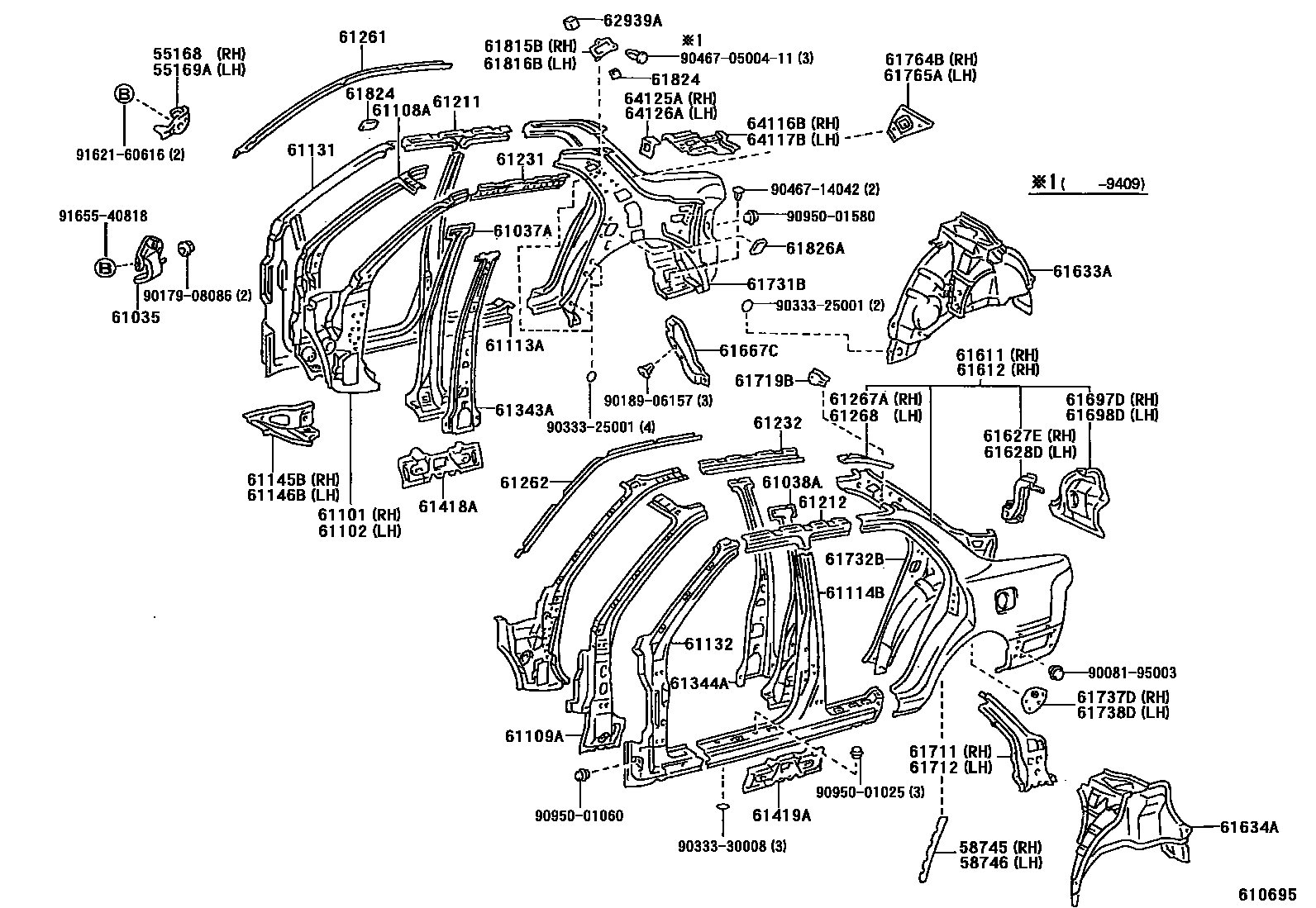

SIDE MEMBER

0001 1 0002 1

55168BRACKET, FRONT FENDER MOUNTING, RH

main55168-32010iMCV10,SXV10..NAP¥380199209-199607

55169ABRACKET, FRONT FENDER MOUNTING, LH

main55169-32010iMCV10,SXV10..NAP¥380199209-199607

58745PROTECTOR, QUARTER PANEL, FRONT RH

main58745-33020iSXV10..NAP..WG¥1,120199209-199607

58746PROTECTOR, QUARTER PANEL, FRONT LH

main58746-33020iSXV10..NAP..WG¥1,120199209-199607

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-33010iMCV10,SXV10..NAP¥2,060199209-199607

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-33020iMCV10,SXV10..NAP¥11,800199209-199405

sub61037-33060¥11,800

main61037-33060iMCV10,SXV10..NAP¥11,800199405-199607

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-33020iMCV10,SXV10..NAP¥11,800199209-199405

sub61038-33060¥11,800

main61038-33060iMCV10,SXV10..NAP¥11,800199405-199607

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-06900iSXV10..NAP199209-199301

sub61101-06902

main61101-06902iMCV10,SXV10..NAP199301-199607

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-06901iSXV10..NAP199209-199301

sub61102-06904

main61102-06903iMCV10..NAP..XE199309-199607

main61102-06904iSXV10..NAP;MCV10..NAP..SE199301-199607

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-06900iSXV10..NAP199209-199309

main61108-06904iMCV10,SXV10..NAP¥17,500199309-199607

sub61108-06902¥17,400

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-06900iSXV10..NAP199209-199309

main61109-06901iMCV10,SXV10..NAP¥12,100199407-199607

main61109-06904iMCV10,SXV10..NAP199309-199407

sub61109-06903

61113APANEL, SIDE, OUTER NO.2 RH

main61113-06010iMCV10,SXV10..NAP¥10,700199209-199607

61114BPANEL, SIDE, OUTER NO.2 LH

main61114-06010iMCV10,SXV10..NAP¥10,700199209-199607

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-06010iMCV10,SXV10..NAP¥7,700199209-199607

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-06010iMCV10,SXV10..NAP¥7,700199209-199607

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-33010iMCV10,SXV10..NAP¥2,940199209-199607

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-33010iMCV10,SXV10..NAP¥2,940199209-199607

61211RAIL, ROOF SIDE, OUTER RH

main61211-06020iMCV10,SXV10..NAP¥3,680199209-199607

61212RAIL, ROOF SIDE, OUTER LH

main61212-06020iMCV10,SXV10..NAP¥3,680199209-199607

61231RAIL, ROOF SIDE, INNER RH

main61231-06010iSXV10..NAP..WG¥8,000199209-199607

main61231-33010iMCV10,SXV10..NAP..SED¥6,300199309-199607

61232RAIL, ROOF SIDE, INNER LH

main61232-06010iSXV10..NAP..WG¥8,000199209-199607

main61232-33010iMCV10,SXV10..NAP..SED¥6,300199309-199607

61261CHANNEL, ROOF DRIP, RH

main61261-06010iMCV10,SXV10..NAP..SED199309-199607

main61261-06020iSXV10..NAP..WG¥3,490199209-199607

61262CHANNEL, ROOF DRIP, LH

main61262-06010iMCV10,SXV10..NAP..SED199309-199607

main61262-06020iSXV10..NAP..WG¥3,490199209-199607

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-06010iMCV10,SXV10..NAP..SED199309-199607

main61267-06020iSXV10..NAP..WG¥2,120199209-199607

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-06010iMCV10,SXV10..NAP..SED199309-199607

main61268-06020iSXV10..NAP..WG¥2,120199209-199607

61343APILLAR, CENTER BODY, INNER RH

main61343-33010iMCV10,SXV10..NAP¥14,000199209-199405

sub61343-33020¥14,600

main61343-33020iMCV10,SXV10..NAP¥14,600199405-199607

61344APILLAR, CENTER BODY, INNER LH

main61344-33010iMCV10,SXV10..NAP¥14,000199209-199405

sub61344-33020¥14,600

main61344-33020iMCV10,SXV10..NAP¥14,600199405-199607

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-32020iMCV10,SXV10..NAP¥2,360199209-199408

61419AREINFORCEMENT, ROCKER PANEL, LH

main61419-32020iMCV10,SXV10..NAP¥2,360199209-199408

61611PANEL, QUARTER, RH

main61601-06011iSXV10..NAP..DX199309-199607

main61601-06021iMCV10,SXV10..NAP..(LE,SE,XE)199309-199607

main61601-06030iSXV10..NAP..WG¥81,400199209-199410

sub61601-06040¥81,400

main61601-06040iSXV10..NAP..WG¥81,400199410-199607

61612PANEL, QUARTER, LH

main61602-06011iMCV10,SXV10..NAP..SED199309-199607

main61602-06020iSXV10..NAP..WG¥81,400199209-199410

sub61602-06040¥81,400

main61602-06030iSXV10..NAP..GL¥81,400199408-199410

sub61602-06050¥81,400

main61602-06030iSXV10..NAP¥81,400199209-199408

W(ANTENNA)

sub61602-06050¥81,400

main61602-06040iSXV10..NAP..XL¥81,400199410-199607

main61602-06050iSXV10..NAP..GL¥81,400199410-199607

61627EEXTENSION, QUARTER PANEL, REAR LOWER RH

main61627-06010iMCV10,SXV10..NAP..SED199309-199607

main61627-06020iSXV10..NAP..WG¥8,000199209-199607

61628DEXTENSION, QUARTER PANEL, REAR LOWER LH

main61628-06010iMCV10,SXV10..NAP..SED199309-199607

main61628-06020iSXV10..NAP..WG¥8,000199209-199607

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61603-06030iMCV10,SXV10..NAP..SED199309-199607

main61603-06900iSXV10..NAP..WG¥31,100199209-199607

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61604-06030iMCV10,SXV10..NAP..SED199309-199607

main61604-06900iSXV10..NAP..WG¥31,300199209-199607

61667CSEAL, QAURTER PANEL, NO.1

main61667-06010iMCV10,SXV10..NAP..SED199309-199607

main61667-06020iSXV10..NAP..WG¥2,440199209-199607

61697DHOUSING, QUARTER PANEL END, RH

main61697-06012iMCV10,SXV10..NAP..SED199309-199607

61698DHOUSING, QUARTER PANEL END, LH

main61698-06012iMCV10,SXV10..NAP..SED199309-199607

61711PANEL, ROOF SIDE, OUTER RH

main61711-06010iMCV10,SXV10..NAP..SED199309-199607

main61711-06020iSXV10..NAP..WG¥6,100199209-199607

61712PANEL, ROOF SIDE, OUTER LH

main61712-06010iMCV10,SXV10..NAP..SED199309-199607

main61712-06020iSXV10..NAP..WG¥6,100199209-199607

61719BBRACKET, ROOF SIDE, INNER

main61719-33010iMCV10,SXV10..NAP..SED¥460199309-199607

61731BPANEL, ROOF SIDE, INNER RH

main61731-06010iMCV10,SXV10..NAP..SED199309-199607

main61731-06030iSXV10..NAP..WG¥17,800199209-199607

61732BPANEL, ROOF SIDE, INNER LH

main61732-06010iMCV10,SXV10..NAP..SED199309-199607

main61732-06020iSXV10..NAP..WG¥18,000199209-199607

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-06010iMCV10,SXV10..NAP..SED199309-199607

61738DREINFORCEMENT, ROOF SIDE, INNER LH

main61738-06010iMCV10,SXV10..NAP..SED199309-199607

61764BREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH

main61764-33010iMCV10,SXV10..NAP..SED¥2,260199309-199607

61765AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH

main61765-33010iMCV10,SXV10..NAP..SED¥2,260199309-199607

61815BCOVER, ROOF SIDE, INNER UPPER RH

main61815-33010iMCV10,SXV10..NAP..SED¥520199309-199408

sub61815-33030¥1,060

main61815-33030iMCV10,SXV10..NAP..SED¥1,060199408-199607

61816BCOVER, ROOF SIDE, INNER UPPER LH

main61815-33030iMCV10,SXV10..NAP..SED¥1,060199408-199607

main61816-33010iMCV10,SXV10..NAP..SED¥520199309-199408

sub61815-33030¥1,060

61824PLATE, NOISE CONTROL, NO.1

main61824-06010iSXV10..NAP..WG199408-199607

main61824-06010iSXV10..NAP199209-199409

NO.2

61826APLATE, NOISE CONTROL, NO.3

main61826-06010iMCV10,SXV10..NAP199209-199607

62939ASILENCER, QUARTER VENT

main62939-06010iMCV10,SXV10..NAP..SED199309-199607

64116BREINFORCEMENT, UPPER BACK, RH

main64116-33010iMCV10,SXV10..NAP..SED¥1,760199309-199607

64117BREINFORCEMENT, UPPER BACK, LH

main64117-33010iMCV10,SXV10..NAP..SED¥1,760199309-199607

64125ABRACKET, UPPER BACK PANEL, RH

main64125-33010iMCV10,SXV10..NAP..SED¥1,320199309-199607

64126ABRACKET, UPPER BACK PANEL, LH

main64126-33010iMCV10,SXV10..NAP..SED¥1,320199309-199607

9008195003

main90081-95003

9017908086

main90179-08086¥160

9018906157

main90189-06157¥80

9033325001

main90333-25001¥140

9033330008

main90333-30008¥70

904670500411

main90467-0500411

9046714042

main90467-14042¥200

9095001025

main90950-01025¥240

9095001060

main90950-01060¥200

9095001580

main90950-01580¥230

9162160616

main91621-60616¥90

9165540818

main91655-40818¥140

68 parts on this diagram · 2 diagrams in section
