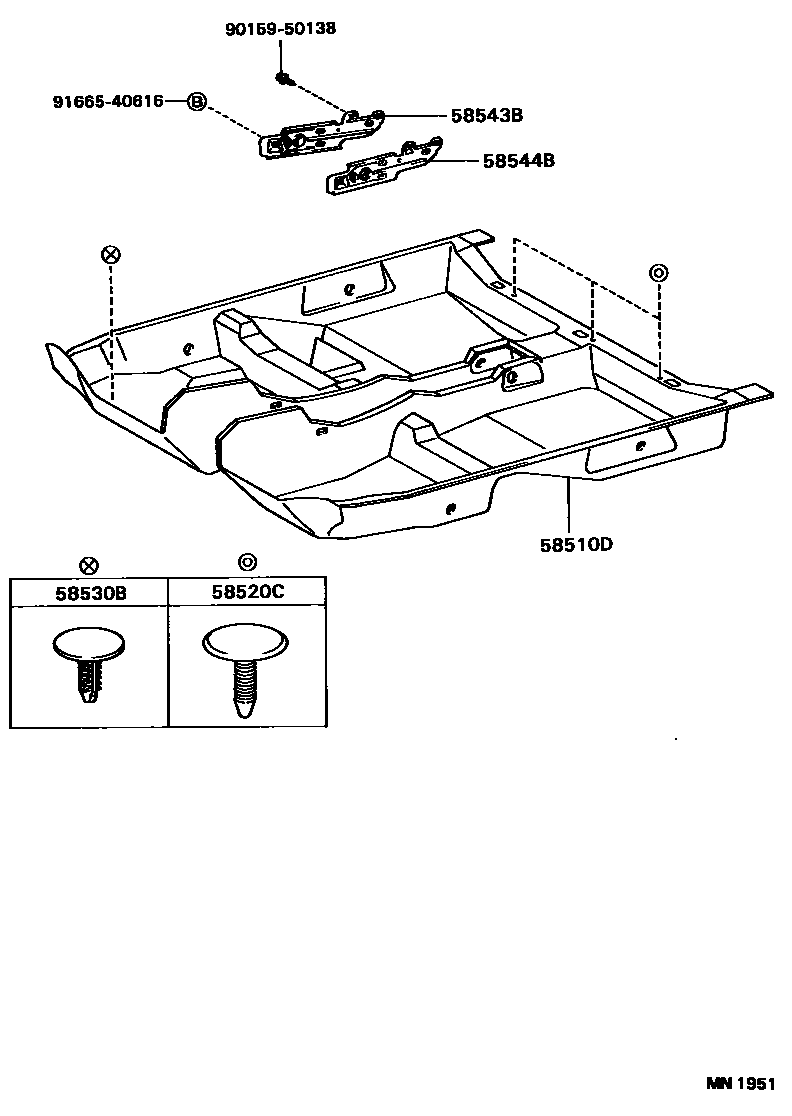

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-06030-B0iSXV10..NAP199209-199309

MEDIUM GRAY,TRIM1#

main58510-06030-E0iSXV10..NAP199209-199309

MEDIUM OAK,TRIM4#

main58510-06030-J0iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

main58510-06090-B0iMCV10,SXV10..NAP..(DX,SE)199309-199607

MEDIUM GRAY,TRIM1#

main58510-06090-E0iMCV10,SXV10..NAP..(DX,SE)199309-199607

MEDIUM OAK,TRIM4#

main58510-06090-K0iSXV10..NAP..(DX,LE)199309-199607

TAUPE,TRIM9#

main58510-06100-B0iMCV10,SXV10..NAP..(LE,XE)199309-199607

MEDIUM GRAY,TRIM1#

main58510-06100-E0iMCV10,SXV10..NAP..XE199309-199607

MEDIUM OAK,TRIM4#

main58510-06100-K0iMCV10,SXV10..NAP..XE199309-199607

TAUPE,TRIM9#

main58510-06120-B0iSXV10..NAP..WG199309-199607

MEDIUM GRAY,TRIM1#

main58510-06120-E0iSXV10..NAP..WG199309-199607

MEDIUM OAK,TRIM4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-01iSXV10..NAP199209-199309

BLACK,TRIM1#,4#,8#

sub90467-06016

sub90467-07049

main90467-06166-C0iMCV10,SXV10..NAP..SED199309-199607

BLACK,TRIM1#,4#,9#

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-06089-B0iMCV10,SXV10..NAP199209-199607

MEDIUM GRAY,TRIM1#

sub90467-06089

main90467-06089-E0iMCV10,SXV10..NAP199209-199408

OAK,TRIM4#

sub90467-06089

main90467-06089-E1iMCV10,SXV10..NAP199408-199607

MD.OAK,TRIM4#

sub90467-06089

main90467-06089-J0iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

sub90467-06089

main90467-06089-K0iMCV10,SXV10..NAP..SED199309-199607

TAUPE,TRIM9#

sub90467-06089

58543BBRACKET, FLOOR CARPET, RH

main58543-06010iMCV10,SXV10..NAP199209-199607

58544BBRACKET, FLOOR CARPET, LH

main58544-06010iMCV10,SXV10..NAP199209-199607

9015950138

main90159-50138

9166540616

main91665-40616

7 parts on this diagram · 1 diagram in section
