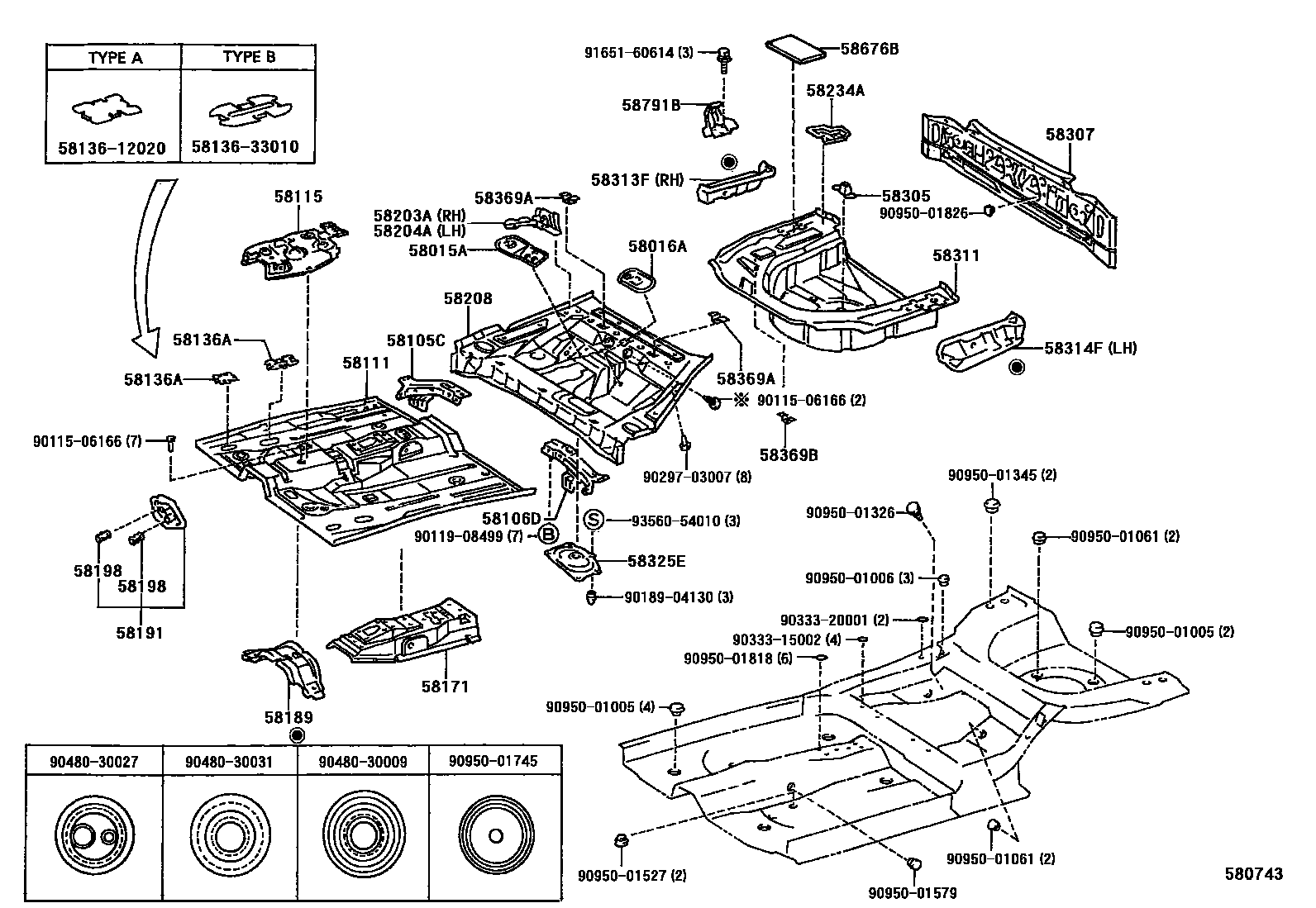

FLOOR PAN & LOWER BACK PANEL
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58105CGUSSET SUB-ASSY, WHEELHOUSE INNER, FRONT RH
58106DGUSSET SUB-ASSY, WHEELHOUSE INNER, FRONT LH
58111PAN, FRONT FLOOR
58136ACOVER, FRONT FLOOR SERVICE HOLE
TYPE A
TYPE B
58171REINFORCEMENT, PARKING BRAKE BASE
58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58234ABRACKET, EXHAUST PIPE MOUNTING, INNER
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
sub58325-06011
58369ABRACKET, FUEL TUBE, NO.3
58369BBRACKET, FUEL TUBE, NO.3
58676BPAD, REAR FLOOR SILENCER, NO.1 RH
58791BCARRIER, JACK
9011506166
main90115-06166
9011908499
main90119-08499
9018904130
main90189-04130
9029703007
main90297-03007
9033315002
main90333-15002
9033320001
main90333-20001
9048030009
main90480-30009
9048030027
main90480-30027
9048030031
main90480-30031
9095001005
main90950-01005
9095001006
main90950-01006
9095001061
main90950-01061
9095001326
main90950-01326
9095001345
main90950-01345
9095001527
main90950-01527
9095001579
main90950-01579
9095001745
main90950-01745
9095001818
main90950-01818
9095001826
main90950-01826
9165160614
main91651-60614
9356054010
main93560-54010
46 parts on this diagram · 2 diagrams in section
