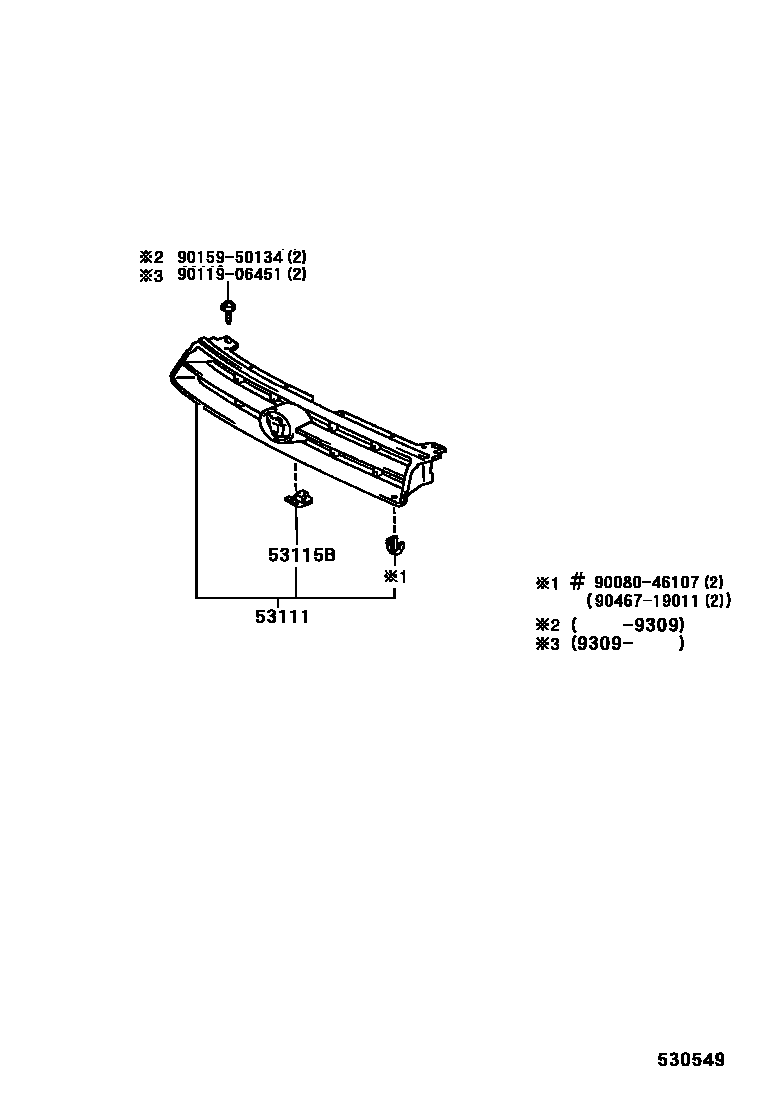

RADIATOR GRILLE

0001 1 0003 1

53111GRILLE, RADIATOR

main53101-AA010-A0iMCV10,SXV10..NAP..SED199408-199607

SUPER WHITE 2,040

main53101-AA010-B0iMCV10,SXV10..NAP..SED199408-199607

BLUISH SILVER M,1A0

main53101-AA010-C0iMCV10,SXV10..NAP..SED199408-199607

BLACK,202

main53101-AA010-D0iMCV10,SXV10..NAP..SED199408-199607

SU. RED 3,3J6

main53101-AA010-D1iMCV10,SXV10..NAP..SED199408-199508

RED M M,3K4

main53101-AA010-D2iMCV10,SXV10..NAP..SED199508-199607

MAGENTA MC.,3L3

main53101-AA010-E0iMCV10,SXV10..NAP..SED199408-199607

BEIGE ME,4M9

main53101-AA010-G0iMCV10,SXV10..NAP..SED199408-199607

GREENISH SILVER ME,6L3

main53101-AA010-G1iMCV10,SXV10..NAP..SED199408-199508

DK GREEN MICA,6M1

main53101-AA010-G2iMCV10,SXV10..NAP..SED199508-199607

DK. GREEN M.M,6P2

main53101-AA010-J0iMCV10,SXV10..NAP..SED199408-199607

DK BLUE M M,8K0

main53101-AA010-K0iMCV10,SXV10..NAP..SED199408-199607

GRAYISH PURPLE M,923

main53101-AA010-K1iMCV10,SXV10..NAP..(LE,XE)199512-199607

DARK TAUPE MCOP,927

main53111-06010iMCV10,SXV10..NAP199209-199607

53115BBRACKET, RADIATOR GRILLE

main53115-06010iMCV10,SXV10..NAP199209-199607

9008046107

main90080-46107

9011906451

main90119-06451

9015950134

main90159-50134

9046719011

main90467-19011

6 parts on this diagram · 2 diagrams in section
