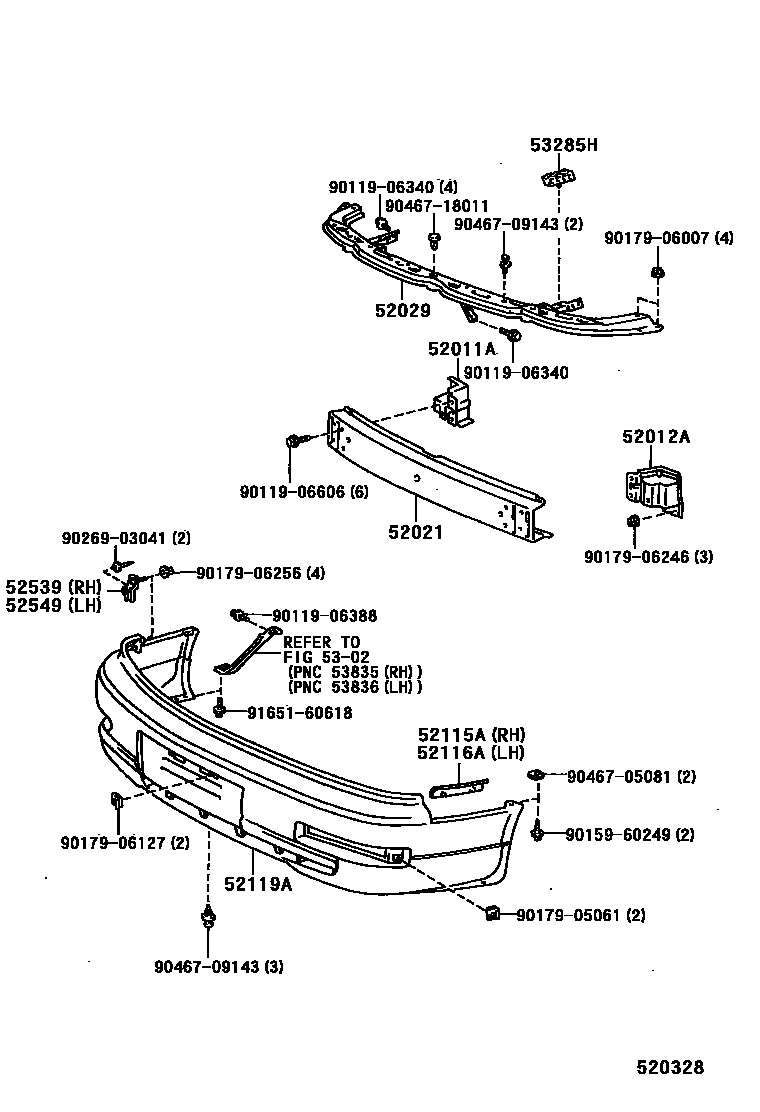

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-06010iMCV10,SXV10..NAP199209-199607

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-06010iMCV10,SXV10..NAP199209-199607

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-06012iMCV10,SXV10..NAP199209-199607

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-06010iMCV10,SXV10..NAP..SED199309-199408

main52029-33030iSXV10..NAP..WG199209-199607

main52029-AA010iMCV10,SXV10..NAP..SED199408-199607

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-33010iSXV10..NAP..WG199209-199607

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-33010iSXV10..NAP..WG199209-199607

52119ACOVER, FRONT BUMPER

main52119-06900iMCV10,SXV10..NAP..SED199309-199408

main52119-33901iSXV10..NAP..WG199209-199607

main52119-AA900iMCV10,SXV10..NAP..SED199408-199607

52539RETAINER, FRONT BUMPER SIDE, NO.3 RH

main52539-33020iSXV10..NAP..WG199209-199607

52549RETAINER, FRONT BUMPER SIDE, NO.3 LH

main52549-33020iSXV10..NAP..WG199209-199607

5302

53285HSEAL, RADIATOR SIDE AIR, NO.1

main53285-33010iMCV10,SXV10..NAP199209-199607

9011906340

main90119-06340

9011906388

main90119-06388

9011906606

main90119-06606

9015960249

main90159-60249

9017905061

main90179-05061

9017906007

main90179-06007

9017906127

main90179-06127

9017906246

main90179-06246

9017906256

main90179-06256

9026903041

main90269-03041

9046705081

main90467-05081

9046709143

main90467-09143

9046718011

main90467-18011

9165160618

main91651-60618

25 parts on this diagram · 2 diagrams in section
