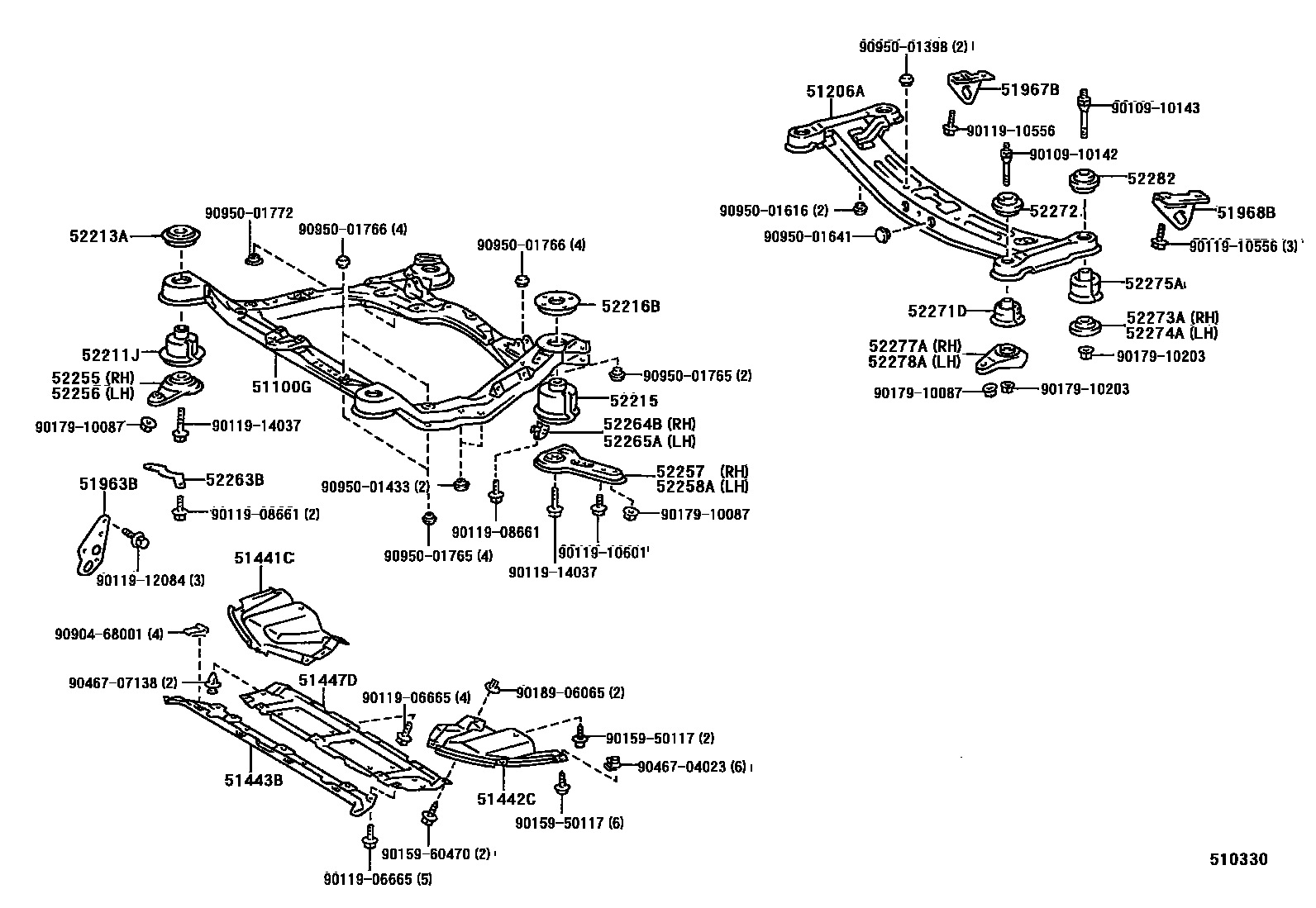

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51100GFRAME ASSY, FRONT

main51100-06010iMCV10,SXV10..NAP¥95,500199209-199607

sub51100-06020

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-06010iMCV10,SXV10..NAP¥20,100199209-199408

sub51206-06011

main51206-06011iMCV10,SXV10..NAP199408-199607

51441CCOVER, ENGINE UNDER, RH

main51441-06010iMCV10,SXV10..NAP..SED¥2,900199309-199607

main51441-33020iSXV10..NAP..WG¥3,350199209-199607

51442CCOVER, ENGINE UNDER, LH

main51442-06010iMCV10,SXV10..NAP..SED¥2,900199309-199607

main51442-33020iSXV10..NAP..WG¥3,350199209-199607

51443BCOVER, ENGINE UNDER, NO.3

main51443-06010iMCV10,SXV10..NAP¥2,900199209-199607

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-06010iMCV10,SXV10..NAP..SED¥2,340199309-199607

main51447-33020iSXV10..NAP..WG¥5,100199209-199607

51963BHOOK, TRANSPORT, FRONT RH

main51963-33010iMCV10,SXV10..NAP¥1,220199209-199607

(J)

main51963-AC010iMCV10,SXV10..NAP¥2,650199408-199607

(L)

51967BHOOK, TRANSPORT, REAR RH

main51967-06010iMCV10,SXV10..NAP..SED199309-199607

main51967-06020iSXV10..NAP..WG¥2,930199209-199607

main51967-AA010iMCV10..NAP¥2,330199408-199607

51968BHOOK, TRANSPORT, REAR LH

main51968-06010iMCV10,SXV10..NAP..SED199309-199607

main51968-06020iSXV10..NAP..WG¥1,650199209-199607

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-06010iMCV10,SXV10..NAP..(DX,LE,XE)¥3,940199309-199607

main52211-33030iMCV10,SXV10..NAP..(GL,SE,XL)¥5,800199209-199607

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06010iMCV10,SXV10..NAP..(DX,LE,XE)¥1,080199309-199607

main52213-33030iMCV10,SXV10..NAP..(GL,SE,XL)¥1,560199209-199607

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-06010iMCV10,SXV10..NAP..(DX,LE,XE)¥3,340199309-199607

main52215-33030iMCV10,SXV10..NAP..(GL,SE,XL)¥4,820199209-199607

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06010iMCV10,SXV10..NAP¥2,170199209-199607

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-33010iMCV10,SXV10..NAP¥2,150199209-199607

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-33010iMCV10,SXV10..NAP¥2,150199209-199607

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-33010iMCV10,SXV10..NAP¥3,940199605-199607

main52257-33010iMCV10,SXV10..NAP¥3,680199209-199605

sub51023-33010¥3,940

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-33010iMCV10,SXV10..NAP¥3,940199605-199607

main52258-33010iMCV10,SXV10..NAP¥3,680199209-199605

sub51024-33010¥3,940

52263BRETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.1

main52263-33010iSXV10..NAP¥1,120199209-199308

52264BRETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.2

main52264-33010iSXV10..NAP¥470199209-199308

52265ARETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.3

main52265-33010iSXV10..NAP¥470199209-199308

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-06030iMCV10,SXV10..NAP..(DX,LE,XE)199309-199607

main52271-33010iMCV10,SXV10..NAP..(GL,SE,XL)¥2,240199209-199607

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-33010iMCV10,SXV10..NAP..(GL,SE,XL)¥1,000199209-199607

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-32010iMCV10,SXV10..NAP¥480199209-199607

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-32010iMCV10,SXV10..NAP¥480199209-199607

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-06030iMCV10,SXV10..NAP..(DX,LE,XE)199309-199607

main52275-33010iMCV10,SXV10..NAP..(GL,SE,XL)¥2,490199209-199607

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52203-33010iMCV10,SXV10..NAP¥2,300199209-199607

52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH

main52204-33010iMCV10,SXV10..NAP¥2,300199209-199607

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-33010iMCV10,SXV10..NAP..(GL,SE,XL)¥750199209-199607

9010910142

main90109-10142¥400

9010910143

main90109-10143¥520

9011906665

main90119-06665¥160

9011908661

main90119-08661¥140

9011910556

main90119-10556¥230

9011910601

main90119-10601¥90

9011912084

main90119-12084¥320

9011914037

main90119-14037¥610

9015950117

main90159-50117¥120

9015960470

main90159-60470¥120

9017910087

main90179-10087¥110

9017910203

main90179-10203¥170

9018906065

main90189-06065¥80

9046704023

main90467-04023¥240

9046707138

main90467-07138¥260

9090468001

main90904-68001¥240

9095001398

main90950-01398¥100

9095001433

main90950-01433¥190

9095001616

main90950-01616¥200

9095001641

main90950-01641¥200

9095001765

main90950-01765¥120

9095001766

main90950-01766¥110

9095001772

main90950-01772¥200

51 parts on this diagram · 2 diagrams in section
