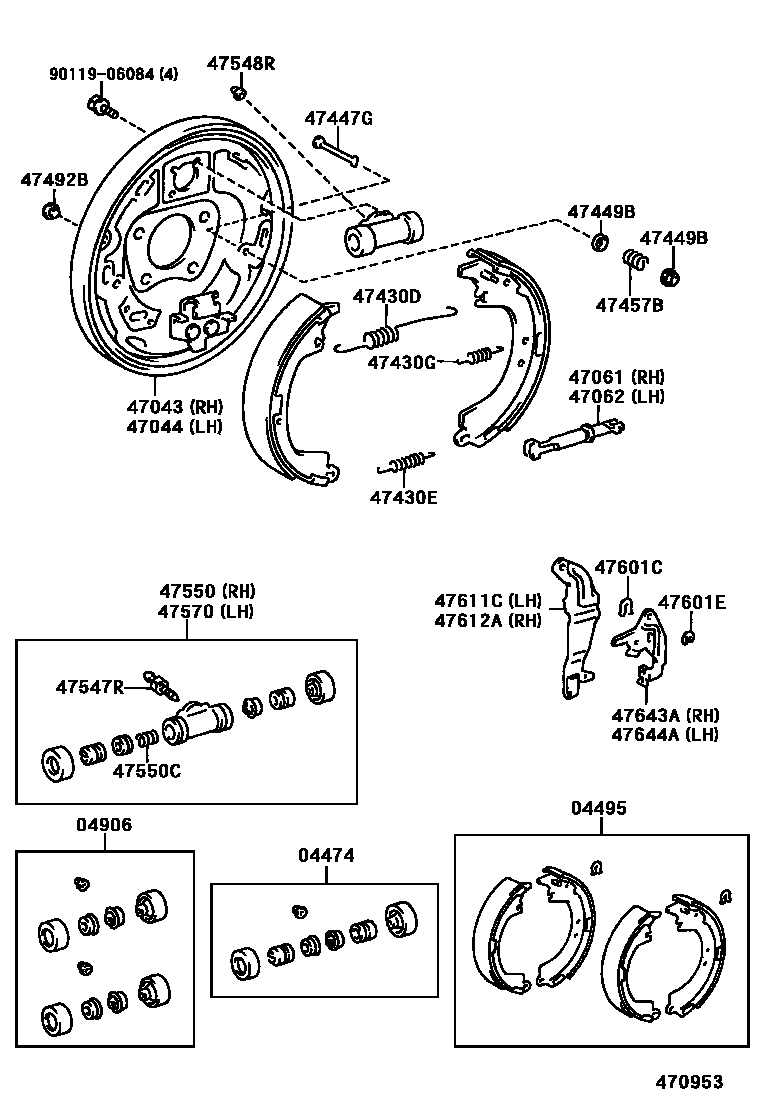

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-06010iSXV10..NAP..(DX,LE)199309-199411

main04474-33010iSXV10..NAP..(DX,LE)199411-199607

04495SHOE KIT, REAR BRAKE

main04495-06010iSXV10..NAP..(DX,LE)199309-199607

04906CUP KIT, REAR WHEEL CYLINDER

main04906-06010iSXV10..NAP..(DX,LE)199309-199411

main04906-33010iSXV10..NAP..(DX,LE)199411-199607

sub04906-28040

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-06020iSXV10..NAP..(DX,LE)199309-199607

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-06020iSXV10..NAP..(DX,LE)199309-199607

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-06010iSXV10..NAP..(DX,LE)199309-199411

main47061-33010iSXV10..NAP..(DX,LE)199411-199607

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-06010iSXV10..NAP..(DX,LE)199309-199411

main47062-33010iSXV10..NAP..(DX,LE)199411-199607

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90080-50069iSXV10..NAP..(DX,LE)199309-199607

RH

main90080-50070iSXV10..NAP..(DX,LE)199309-199607

LH

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90080-50068iSXV10..NAP..(DX,LE)199309-199607

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90080-50067iSXV10..NAP..(DX,LE)199309-199607

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-03010iSXV10..NAP..(DX,LE)199309-199411

main47447-06010iSXV10..NAP..(DX,LE)199411-199607

sub47447-07020

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-03010iSXV10..NAP..(DX,LE)199309-199411

main47449-06010iSXV10..NAP..(DX,LE)199411-199607

47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)

main90080-50066iSXV10..NAP..(DX,LE)199309-199607

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-06010iSXV10..NAP..(DX,LE)199309-199607

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-03020iSXV10..NAP..(DX,LE)199309-199411

main47547-22020iSXV10..NAP..(DX,LE)199411-199607

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iSXV10..NAP..(DX,LE)199309-199607

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-06010iSXV10..NAP..(DX,LE)199309-199411

main47550-33010iSXV10..NAP..(DX,LE)199411-199607

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90080-50082iSXV10..NAP..(DX,LE)199309-199411

main90501-09079iSXV10..NAP..(DX,LE)199411-199607

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-06010iSXV10..NAP..(DX,LE)199309-199411

main47570-33010iSXV10..NAP..(DX,LE)199411-199607

47601CWASHER, C(FOR REAR BRAKE)

main90080-20012iSXV10..NAP..(DX,LE)199408-199607

T=1.2

47601ERING, E(FOR REAR BRAKE)

main90082-61009iSXV10..NAP..(DX,LE)199309-199411

main96160-00500iSXV10..NAP..(DX,LE)199411-199607

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-06010iSXV10..NAP..(DX,LE)199309-199411

main47611-06020iSXV10..NAP..(DX,LE)199411-199607

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-06010iSXV10..NAP..(DX,LE)199309-199411

main47612-06020iSXV10..NAP..(DX,LE)199411-199607

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-06010iSXV10..NAP..(DX,LE)199309-199411

main47643-06020iSXV10..NAP..(DX,LE)199411-199607

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-06010iSXV10..NAP..(DX,LE)199309-199411

main47644-06020iSXV10..NAP..(DX,LE)199411-199607

9011906084

main90119-06084

26 parts on this diagram · 1 diagram in section
