04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-06020i199312-199607

main04479-07030i199408-199607

main04479-33010i199209-199312

main04479-50080i199309-199408

04491PAD KIT, DISC BRAKE, FRONT

main04491-06070i199312-199505

sub04465-33020

main04491-06090i199312-199505

sub04465-33050

main04491-07010i199408-199505

sub04465-33060

main04491-33011i199309-199312

sub04465-33020

main04491-33080i199209-199312

sub04465-33050

main04491-33110i199309-199408

sub04465-33060

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010i199209-199607

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-03010i199209-199309

sub47547-20010

main47547-20010i199309-199607

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208i199209-199607

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-02010i199510-199607

SUB

main47715-02010i199408-199510

main47715-02020i199510-199607

MAIN

main47715-06010i199209-199309

SUB

sub47715-50010

main47715-06020i199412-199607

SUB

main47715-06030i199412-199607

MAIN

main47715-24010i199309-199408

main47715-50010i199309-199412

SUB

main47715-50030i199209-199412

MAIN

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90080-10034i199209-199309

sub90105-08164

main90080-10043i199408-199607

main90080-10050i199312-199607

sub90016-AA103

main90105-08164i199309-199312

main90109-08214i199309-199408

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-06010i199209-199309

main47716-33010i199309-199607

main47716-33031i199309-199607

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-06020i199209-199309

main47716-33020i199309-199607

main47716-33041i199309-199607

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-06010i199209-199309

main47717-33010i199309-199607

main47717-33031i199309-199607

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-06020i199209-199309

main47717-33020i199309-199607

main47717-33041i199309-199607

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-06010i199209-199607

main47721-07010i199408-199607

main47721-33050i199309-199408

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-06010i199209-199607

main47722-07010i199408-199607

main47722-33050i199309-199408

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-06010i199209-199607

main47730-07020i199408-199607

main47730-33080i199309-199408

47731PISTON, FRONT DISC BRAKE

main47731-06010i199209-199309

sub47731-33010

main47731-06020i199312-199607

sub47731-06030

main47731-07020i199408-199607

main47731-33010i199309-199312

main47731-33030i199309-199408

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90080-52009i199209-199607

main90080-52064i199408-199607

sub90080-52104

main90522-49001i199309-199408

main90522-66001i199309-199312

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-07010i199408-199607

main47743-33010i199310-199408

main47743-50030i199309-199607

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47745-06010i199209-199309

sub47745-33010

main47745-06030i199312-199607

main47745-07010i199408-199607

main47745-33010i199309-199312

main47745-33030i199309-199408

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-06010i199209-199309

sub47744-33010

main47744-06030i199312-199607

main47744-07010i199408-199607

main47744-33010i199309-199312

main47744-33030i199309-199408

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-06010i199209-199309

sub47745-33010

main47745-06030i199312-199607

main47745-07010i199408-199607

main47745-33010i199309-199312

main47745-33030i199309-199408

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47744-06010i199209-199309

sub47744-33010

main47744-06030i199312-199607

main47744-07010i199408-199607

main47744-33010i199309-199312

main47744-33030i199309-199408

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-06010i199209-199607

main47750-07020i199408-199607

main47750-33080i199309-199408

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-06010i199209-199309

sub47769-07010

main47769-50010i199309-199607

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33010i199310-199607

main47771-50010i199309-199310

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-50010i199209-199607

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-06010i199209-199308

(L)

main47703-33010i199209-199302

(J)

main47781-06010i199308-199607

main47781-06020i199309-199607

sub47781-33020

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227i199209-199607

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-06010i199209-199308

(L)

main47704-33010i199209-199302

(J)

main47782-06010i199308-199607

main47782-06020i199309-199408

(L)

main47782-06020i199408-199607

main47782-32070i199309-199408

(J)

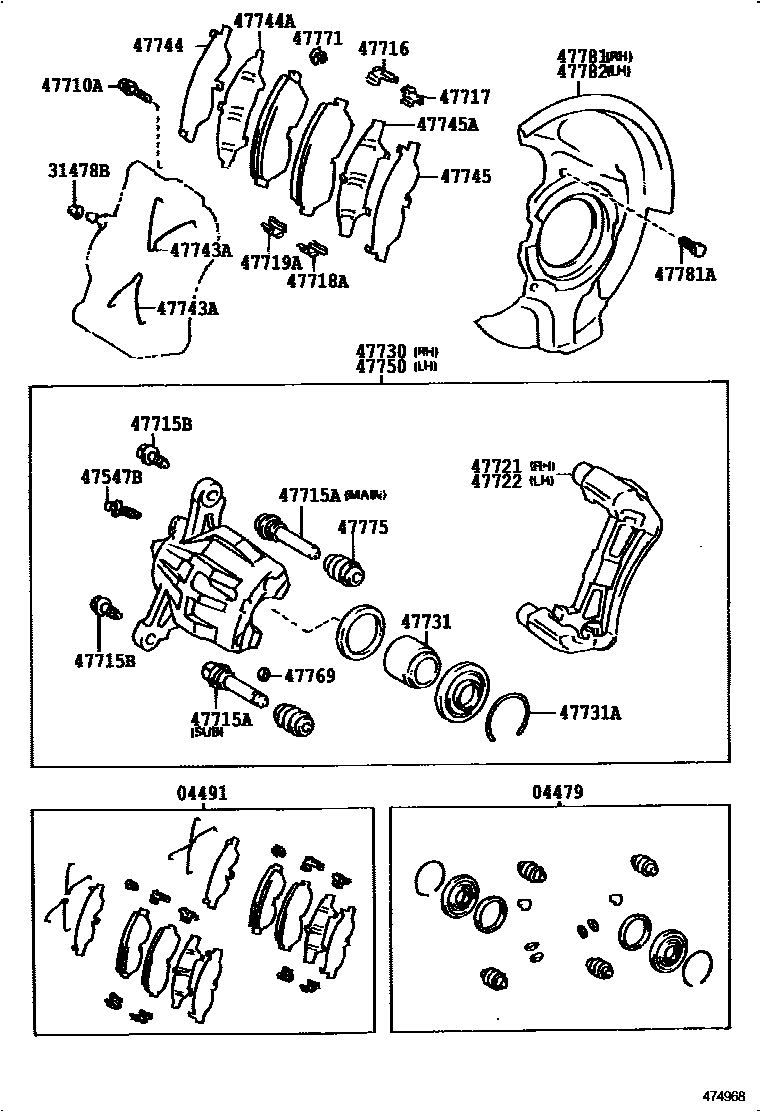

FRONT DISC BRAKE CALIPER & DUST COVER
