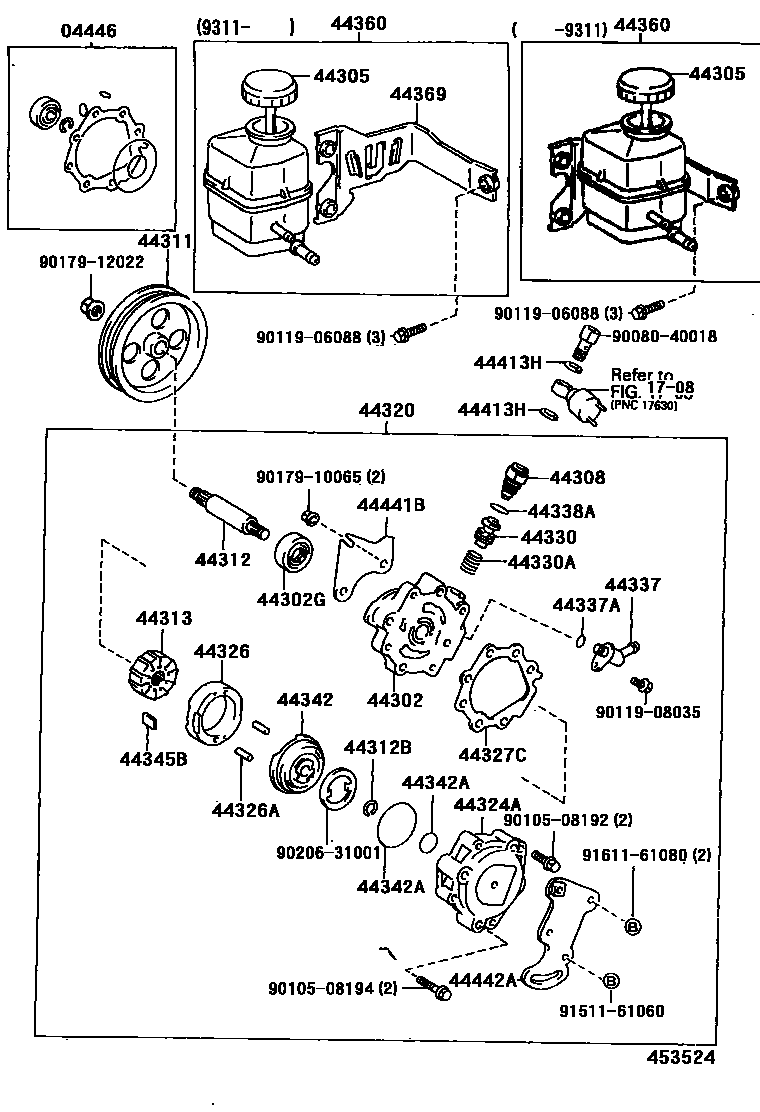

VANE PUMP & RESERVOIR (POWER STEERING)
1708
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44308UNION SUB-ASSY, PRESSURE PORT
RR
FR
44312SHAFT, VANE PUMP
(L)
OD=17.994-17.999
44313ROTOR, VANE PUMP
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
NO MARK
NO MARK,FRONT
MARK 1
MARK 1,FRONT
MARK 2,FRONT
MARK 2
MARK 3,FRONT
MARK 3
MARK 4
MARK 4,FRONT
NO MARK,REAR
MARK 1,REAR
MARK 2,REAR
MARK 3,REAR
MARK 4,REAR
44326RING, CAM(FOR VANE PUMP)
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
NO MARK
MARK 1
MARK 2,REAR
MARK 3,REAR
MARK 4,REAR
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
MARK 2,FRONT
MARK 3,FRONT
MARK 4,FRONT
MARK 5
MARK 6
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
L=28,OD=4.0
L=43,OD=4.0
L=23.3,OD=4.0
L=59.5,OD=4
44327CGASKET, VANE PUMP HOUSING
44330VALVE ASSY, FLOW CONTROL
MARK A
MARK B
MARK C
MARK D
MARK E
MARK F
MARK A
MARK B
MARK C
MARK D
MARK E
MARK F
MARK A,FRONT
MARK B,FRONT
MARK C,FRONT
MARK D,FRONT
MARK E,FRONT
MARK F,FRONT
MARK A,REAR
MARK B,REAR
MARK C,REAR
MARK D,REAR
MARK E,REAR
MARK F,REAR
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
FR
RR
44338ARING, O(FOR PRESSURE PORT UNION)
44342PLATE, VANE PUMP SIDE, REAR
44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)
INNER
OUTER
INNER
OUTER
44345BPLATE, VANE PUMP
L=14.997
L=14.997,REAR
L=14.995
L=14.995,REAR
L=14.993,REAR
L=14.993
L=14.991
L=14.991,REAR
L=14.989
L=15.000,FRONT
L=15.000
L=14.998
L=14.998,FRONT
L=14.996,FRONT
L=14.996
L=14.994
L=14.992
44360RESERVOIR ASSY, VANE PUMP OIL
44369BRACKET, OIL RESERVOIR, NO.1
44413HGASKET(FOR PRESSURE FEED TUBE NO.2)
44442ABRACKET, VANE PUMP, REAR
9008040018
main90080-40018
9010508192
main90105-08192
9010508194
main90105-08194
9011906088
main90119-06088
9011908035
main90119-08035
9017910065
main90179-10065
9017912022
main90179-12022
9020631001
main90206-31001
9151161060
main91511-61060
9161161080
main91611-61080
38 parts on this diagram · 4 diagrams in section
