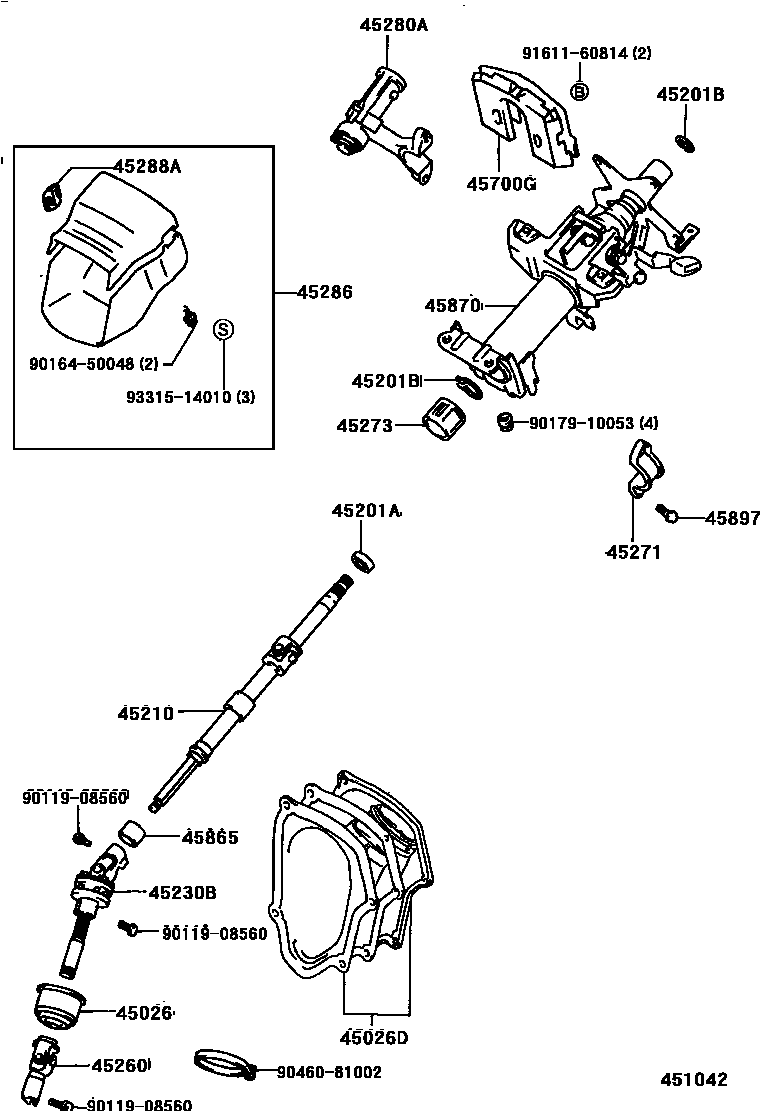

STEERING COLUMN & SHAFT
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026DCOVER SUB-ASSY, STEERING COLUMN HOLE
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,UPPER
T=1.20,LOWER
45210SHAFT ASSY, STEERING MAIN
45230BJOINT ASSY, STEERING SHAFT UNIVERSAL
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45288ASPACER, COLUMN COVER
45700GDAMPER ASSY, STEERING
45865COLLAR, STEERING MAIN SHAFT
45870TUBE ASSY, STEERING COLUMN
W(*80)
45897BOLT, STEERING LOCK SET
9011908560
main90119-08560
9016450048
main90164-50048
9017910053
main90179-10053
9046081002
main90460-81002
9161160814
main91611-60814
9331514010
main93315-14010
22 parts on this diagram · 1 diagram in section
