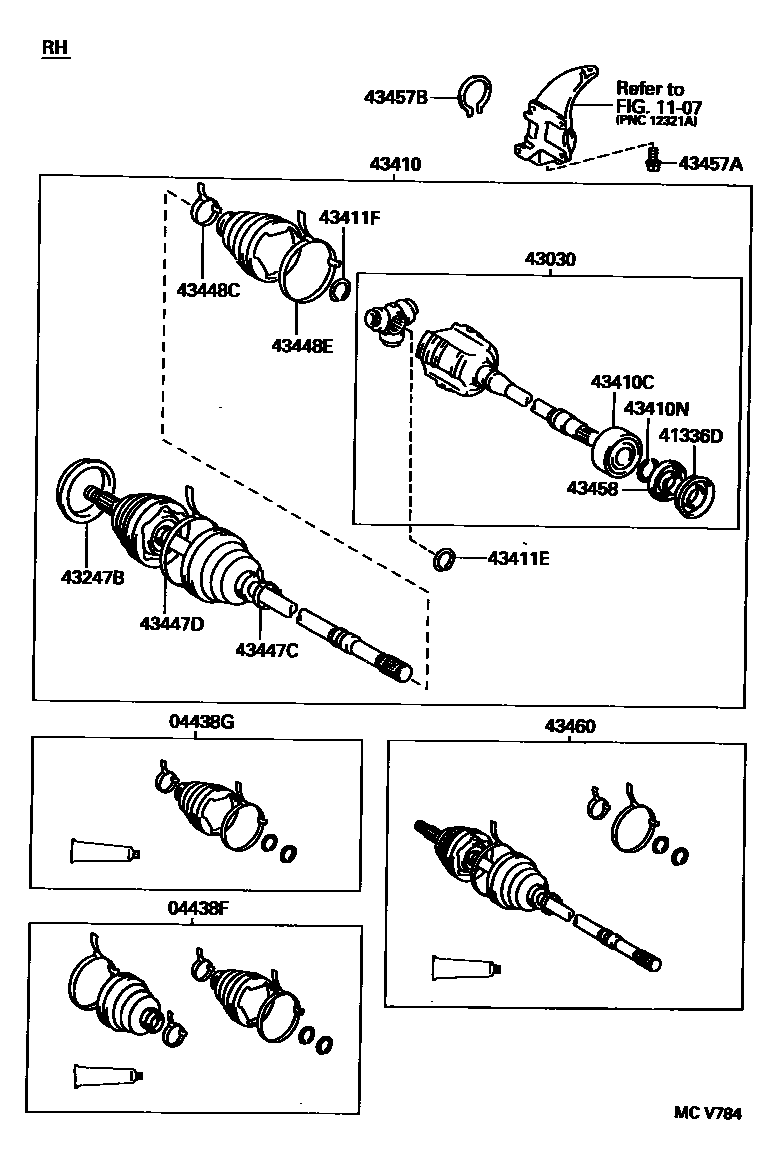

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1RH 0004 1LH 0005 1RH 0006 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-06020iSXV10..NAP..SED¥12,000199309-199408

main04438-06021iSXV10..NAP..SED¥12,000199408-199607

main04438-06060iMCV10..NAP¥12,400199309-199607

sub04438-06062¥12,400

main04438-20070iSXV10..NAP..MTM¥10,800199209-199607

main04438-20090iSXV10..NAP..ATM..GL¥10,800199209-199607

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-06010iSXV10..NAP..SED¥7,400199309-199408

main04438-06011iSXV10..NAP..SED¥7,800199408-199607

main04438-06050iMCV10..NAP¥6,600199309-199607

sub04438-06052¥8,100

main04438-20060iSXV10..NAP..MTM¥6,700199209-199511

sub04438-20330¥6,700

main04438-20080iSXV10..NAP..ATM..GL¥6,700199209-199607

main04438-20330iSXV10..NAP..MTM¥6,700199511-199607

sub04438-20361¥6,700

1107

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06010iSXV10..NAP..SED¥500199309-199607

main41336-06020iMCV10..NAP¥890199309-199607

main41336-20011iSXV10..NAP..WG¥510199209-199607

sub41336-20050¥430

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-06020iSXV10..NAP..SED¥36,800199309-199607

main43030-33010iSXV10..NAP..MTM¥33,400199209-199607

main43030-33020iSXV10..NAP..ATM..GL¥31,500199209-199607

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-06010iMCV10..NAP¥2,920199309-199607

W(*66)

main43247-06020iSXV10..NAP..SED199309-199607

main43247-33010iSXV10..NAP..WG¥2,400199209-199607

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06050iSXV10..NAP..SED¥87,300199309-199607

sub43410-06151¥79,500

main43410-06060iSXV10..NAP..(LE,XE)¥87,300199309-199607

W(*66)

sub43410-06161¥79,500

main43410-06080iMCV10..NAP¥86,800199309-199607

sub43410-06170¥79,500

main43410-33010iSXV10..NAP..MTM¥79,600199209-199607

sub43410-33011¥79,600

sub90178-22001¥310

main43410-33050iSXV10..NAP..ATM..GL¥79,200199209-199607

sub43410-33090¥79,400

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90080-36048iSXV10..NAP..SED¥3,880199411-199607

main90369-36001iSXV10..NAP..WG¥3,060199209-199607

sub90363-36001¥2,470

main90369-41001iMCV10..NAP¥3,190199309-199607

sub90363-41002¥2,750

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013iMCV10..NAP¥140199309-199607

main90081-52006iSXV10..NAP..SED¥350199309-199607

main90520-33008iSXV10..NAP..WG¥110199209-199607

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90080-52018iSXV10..NAP..SED¥180199309-199607

main90080-52036iMCV10..NAP¥170199309-199607

main90520-25034iSXV10..NAP..ATM..GL¥160199209-199607

main90520-26048iSXV10..NAP..MTM¥120199209-199607

43411FRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER RH)

main90080-52019iSXV10..NAP..SED¥180199309-199607

main90520-25033iSXV10..NAP..ATM..GL¥140199209-199607

main90520-25037iSXV10..NAP..MTM¥180199209-199607

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16050iSXV10..NAP..MTM¥330199209-199607

main90080-46084iSXV10..NAP..SED¥330199309-199607

main90080-46106iMCV10..NAP¥330199309-199408

main90949-01108iSXV10..NAP..ATM..GL¥320199209-199607

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16060iSXV10..NAP..MTM¥210199209-199607

main90080-46086iSXV10..NAP..SED¥440199309-199607

main90080-46109iMCV10..NAP¥480199309-199607

main90949-01107iSXV10..NAP..ATM..GL¥540199209-199607

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16050iSXV10..NAP..MTM¥330199209-199607

main90080-46084iSXV10..NAP..SED¥330199309-199607

main90080-46106iMCV10..NAP¥330199309-199607

main90081-46024iSXV10..NAP..(LE,XE)¥310199309-199408

W(*66)

main90949-01108iSXV10..NAP..ATM..GL¥320199209-199607

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-06010iSXV10..NAP..SED¥480199309-199607

main42345-16090iSXV10..NAP..MTM¥870199209-199607

W(*66)

main42346-22010iSXV10..NAP..ATM..GL¥620199209-199607

W(*66)

main90080-46173iMCV10..NAP¥460199309-199607

W(*66)

main90081-46023iSXV10..NAP..(LE,XE)¥370199309-199408

W(*66)

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iMCV10,SXV10..NAP¥200199209-199607

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-75002iSXV10..NAP¥140199209-199607

main90521-78002iMCV10..NAP¥160199309-199607

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06010iSXV10..NAP..SED¥760199309-199607

main43458-06020iMCV10..NAP¥650199309-199607

main43458-20011iSXV10..NAP..WG¥930199209-199607

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-09160iSXV10..NAP..SED¥40,600199309-199607

main43470-09180iMCV10..NAP¥40,600199309-199607

main43470-09190iSXV10..NAP..(LE,XE)¥50,600199309-199607

W(*66)

main43470-39175iSXV10..NAP..MTM¥41,000199209-199607

sub43470-39176¥41,000

sub90178-22001¥310

main43470-39235iSXV10..NAP..ATM..GL¥70,800199209-199607

sub43470-39255¥42,800

19 parts on this diagram · 6 diagrams in section
