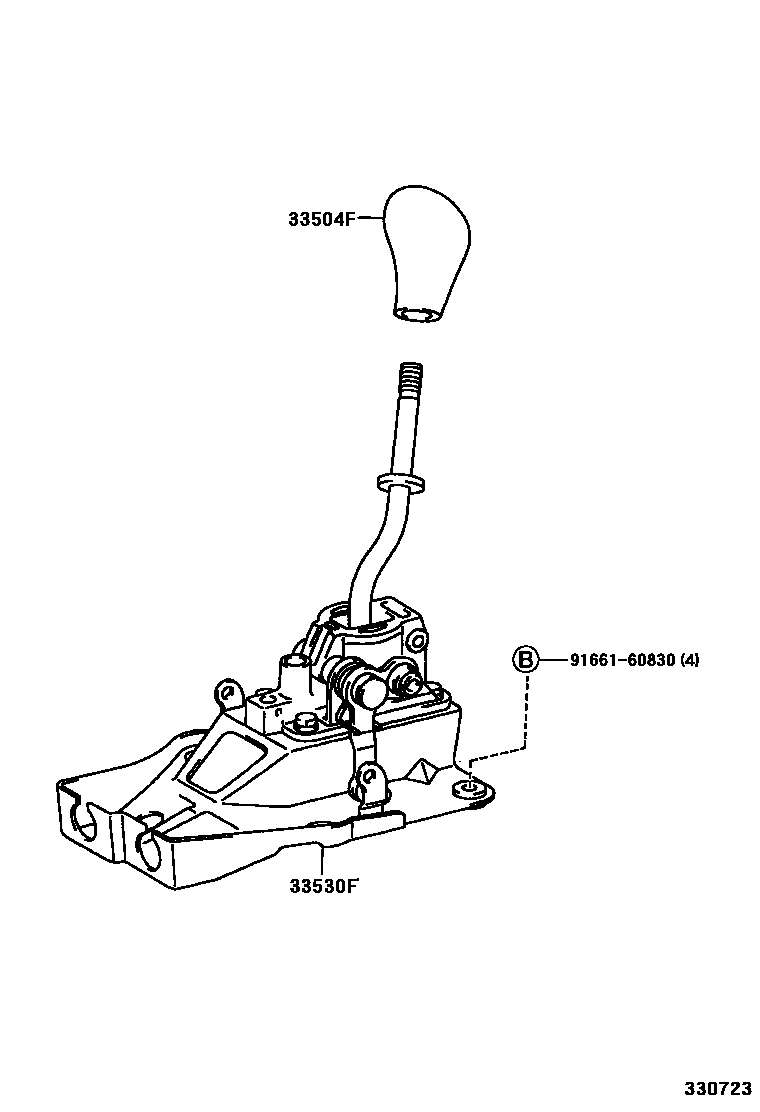

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B0iSXV10..NAP..XL199309-199408

MEDIUM GRAY,TRIM1#

sub33504-12180

main33504-12180-C0iSXV10..NAP..MTM199209-199309

BLACK,TRIM1#,4#,8#

sub33504-12180

main33504-12180-C0iSXV10..NAP..MTM199309-199607

BLACK,TRIM1#,4#

sub33504-12180

main33504-12180-E3iSXV10..NAP..XL199309-199408

OAK,TRIM4#

sub33504-12180

main33542-06010-B0iMCV10,SXV10..NAP..SED199408-199607

MD.GRAY,TRIM1#

main33542-06010-E0iMCV10,SXV10..NAP..SED199408-199607

OAK,TRIM4#

main33542-06010-K0iMCV10,SXV10..NAP..SED199408-199607

TAUPE,TRIM9#

main33542-33010-C0iSXV10..NAP..ATM199209-199308

BLACK,TRIM1#,4#,8#

sub33542-33010

main33542-33030-B0iMCV10,SXV10..NAP..(DX,LE,XE)199309-199408

MEDIUM GRAY,TRIM1#

sub33542-33030

main33542-33030-C0iMCV10..NAP..SE199309-199408

BLACK,TRIM1#,4#,9#

sub33542-33030

main33542-33030-C0iSXV10..NAP..ATM..GL199309-199607

BLACK,TRIM1#,4#

sub33542-33030

main33542-33030-E0iMCV10,SXV10..NAP..(DX,LE,XE)199309-199408

OAK,TRIM4#

sub33542-33030

main33542-33030-K0iMCV10,SXV10..NAP..(DX,LE,XE)199309-199408

TAUPE,TRIM9#

sub33542-33030

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-33060iSXV10..NAP..MTM199209-199607

9166160830

main91661-60830

3 parts on this diagram · 5 diagrams in section
