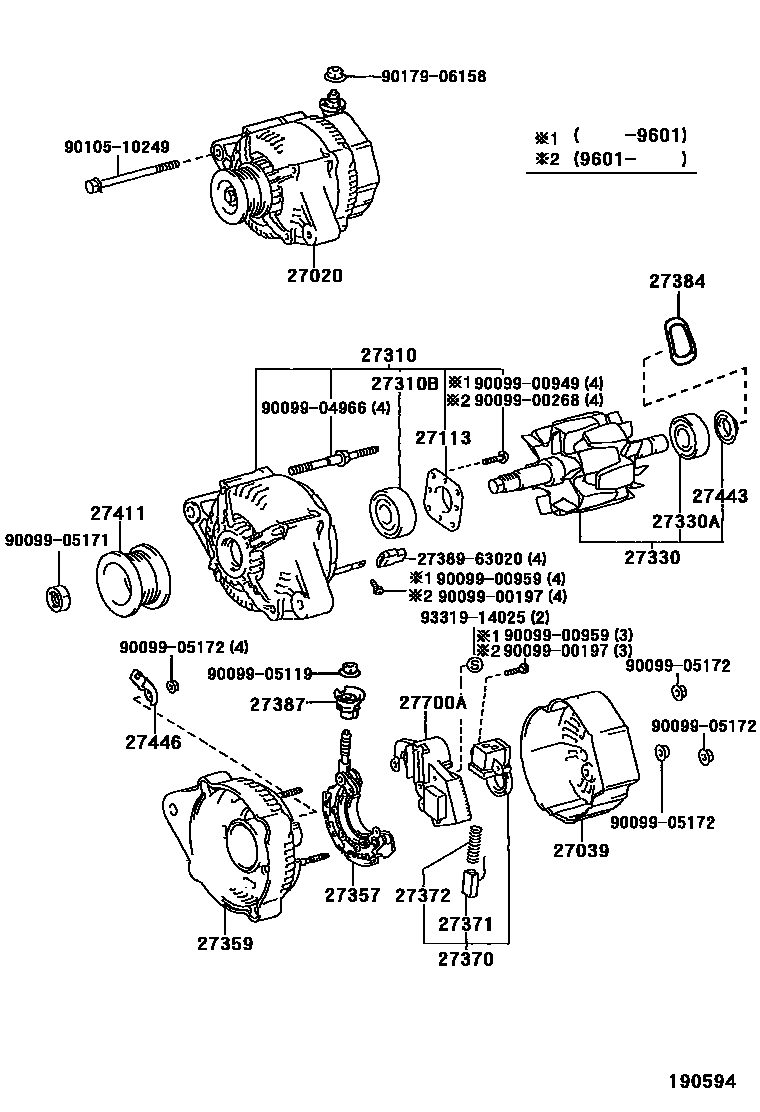

ALTERNATOR

0001 112V 70A 0002 112V 80A 0003 112V 80A

27020ALTERNATOR ASSY

main27060-03050i5SFE..SXV10..NAP..SED199309-199607

12V 80A

main27060-20010i1MZFE..MCV10..NAP199309-199408

12V 80A

main27060-20020i1MZFE..MCV10..NAP199408-199607

12V 80A

main27060-74370i5SFE..SXV10..NAP..WG199209-199607

12V 70A

27039COVER, ALTERNATOR REAR END

main27039-03050i5SFE..SXV10..NAP..SED199408-199607

main27039-20020i1MZFE..MCV10..NAP199404-199607

sub27039-28090

main27039-46190i1MZFE..MCV10..NAP199309-199404

sub27039-22050

main27039-55080i5SFE..SXV10..NAP..SED199309-199408

sub27039-70470

main27039-73020i5SFE..SXV10..NAP..WG199209-199607

sub27039-16380

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-0A020i5SFE..SXV10..NAP..SED199408-199607

main27312-42010i1MZFE..MCV10..NAP199309-199607

main27312-70200i5SFE..SXV10..NAP..WG199209-199607

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-03050i5SFE..SXV10..NAP..SED199408-199607

main27310-20020i1MZFE..MCV10..NAP199309-199408

main27310-20030i1MZFE..MCV10..NAP199408-199607

main27310-70100i5SFE..SXV10..NAP..WG199209-199607

main27310-74210i5SFE..SXV10..NAP..SED199309-199408

sub27310-74120

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10002i5SFE..SXV10..NAP..SED199408-199607

sub90099-10192

main90099-10178i5SFE..SXV10..NAP..WG199209-199607

main90099-10192i1MZFE,5SFE..MCV10,SXV10..NAP..SED199309-199607

27330ROTOR ASSY, ALTERNATOR

main27330-03050i5SFE..SXV10..NAP..SED199408-199607

sub27330-0D010

main27330-72101i5SFE..SXV10..NAP..WG199209-199607

main27330-72280i1MZFE..MCV10..NAP199408-199607

sub27330-74550

main27330-76030i1MZFE,5SFE..MCV10,SXV10..NAP..SED199309-199408

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90068-10001i5SFE..SXV10..NAP..SED199408-199607

main90099-10140i1MZFE,5SFE..MCV10,SXV10..NAP199209-199607

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-0A020i5SFE..SXV10..NAP..SED199408-199607

main27357-55080i1MZFE..MCV10..NAP199309-199607

main27357-63020i5SFE..SXV10..NAP..WG199209-199607

27359FRAME, ALTERNATOR RECTIFIER END

main27359-03050i5SFE..SXV10..NAP..SED199408-199607

main27359-20020i1MZFE..MCV10..NAP199309-199607

main27359-42010i5SFE..SXV10..NAP..SED199309-199408

sub27359-74330

main27359-43160i5SFE..SXV10..NAP..WG199209-199601

sub27359-43161

sub27384-16380

main27359-43161i5SFE..SXV10..NAP..WG199601-199607

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i5SFE..SXV10..NAP..WG199209-199607

main27370-75060i1MZFE,5SFE..MCV10,SXV10..NAP..SED199309-199607

27371BRUSH, ALTERNATOR

main27371-70300i5SFE..SXV10..NAP..WG199209-199607

27372SPRING, ALTERNATOR BRUSH

main27372-63020i5SFE..SXV10..NAP..WG199209-199607

sub27372-87501

27384WASHER

main27384-0A020i5SFE..SXV10..NAP..SED199408-199607

main27384-16380i5SFE..SXV10..NAP..WG199601-199607

main27384-50030i1MZFE,5SFE..MCV10,SXV10..NAP..SED199309-199607

27387INSULATOR, TERMINAL

main27387-0A020i5SFE..SXV10..NAP..SED199408-199607

main27387-42020i1MZFE..MCV10..NAP199309-199607

main27387-70170i5SFE..SXV10..NAP..WG199209-199607

27411PULLEY, ALTERNATOR

main27411-03050i5SFE..SXV10..NAP..SED199408-199607

main27411-16211i5SFE..SXV10..NAP..WG199209-199607

main27411-20020i1MZFE..MCV10..NAP199309-199607

main27411-42030i5SFE..SXV10..NAP..SED199309-199408

27443COVER, ALTERNATOR BEARING

main27443-0A020i5SFE..SXV10..NAP..SED199408-199607

main27443-63020i1MZFE,5SFE..MCV10,SXV10..NAP199209-199607

27446CLIP, ALTERNATOR CORD

main27446-03050i5SFE..SXV10..NAP..SED199408-199607

main27446-20020i1MZFE..MCV10..NAP199309-199607

main27446-74250i5SFE..SXV10..NAP199209-199607

27700AREGULATOR ASSY, GENERATOR

main27700-46060i1MZFE..MCV10..NAP199410-199607

main27700-62010i1MZFE..MCV10..NAP199309-199410

main27700-74030i5SFE..SXV10..NAP199209-199607

2738963020INSULATOR, TERMINAL

main27389-63020

9009900197

main90099-00197

9009900268

main90099-00268

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510249

main90105-10249

9017906158

main90179-06158

9331914025

main93319-14025

30 parts on this diagram · 3 diagrams in section
