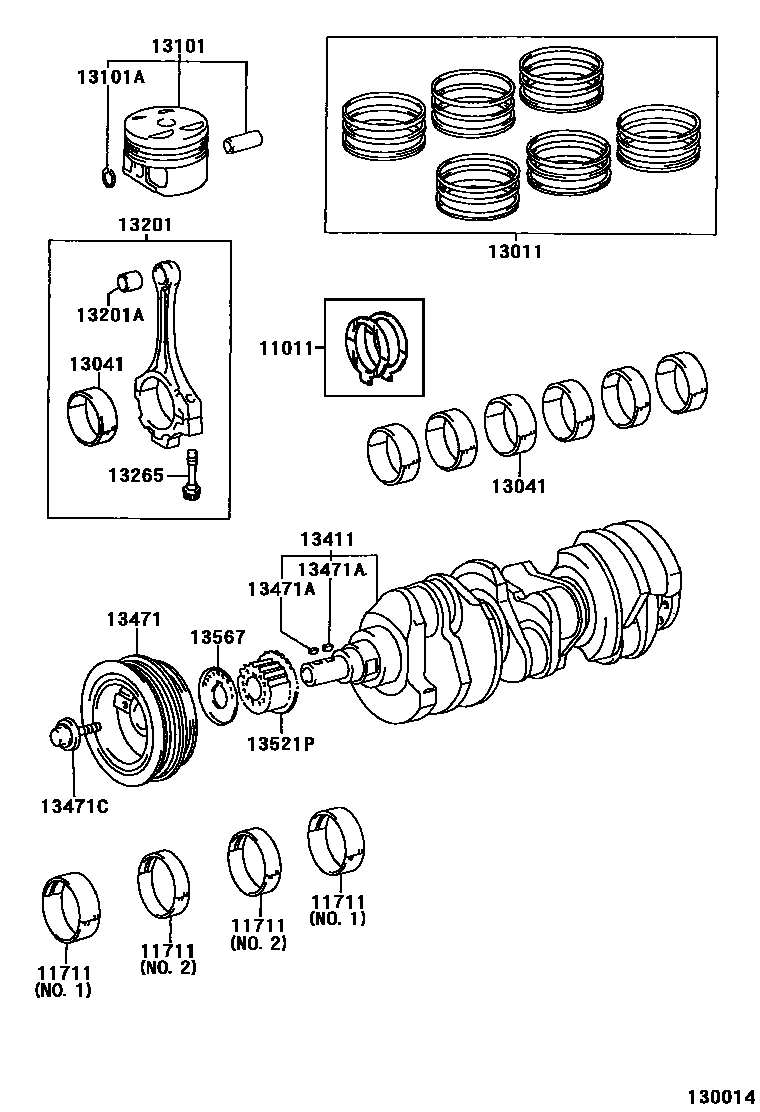

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD,(J)
11711BEARING, CRANKSHAFT
13011RING SET, PISTON
STD
STD
O/S 0.50
O/S 0.50
13041BEARING, CONNECTING ROD
MARK 1,(L)
MARK 2,(L)
MARK 3,(L)
MARK 4,(L)
13101PISTON SUB-ASSY, W/PIN
STD,MARK 1,(L)
STD,MARK 2,(L)
STD,MARK 3,(L)
STD,MARK 1,(J)
STD,MARK 2,(J)
STD,MARK 3,(J)
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
sub90520-22025
13201ROD SUB-ASSY, CONNECTING
sub13201-29155
13201ABUSH(FOR CONNECTING ROD SMALL END)
13471PULLEY, CRANKSHAFT
(L)
(L)
(J)
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521PPULLEY, CRANKSHAFT TIMING
(L)
(J)
(J)
13567GUIDE, TIMING BELT, NO.2
15 parts on this diagram · 3 diagrams in section
