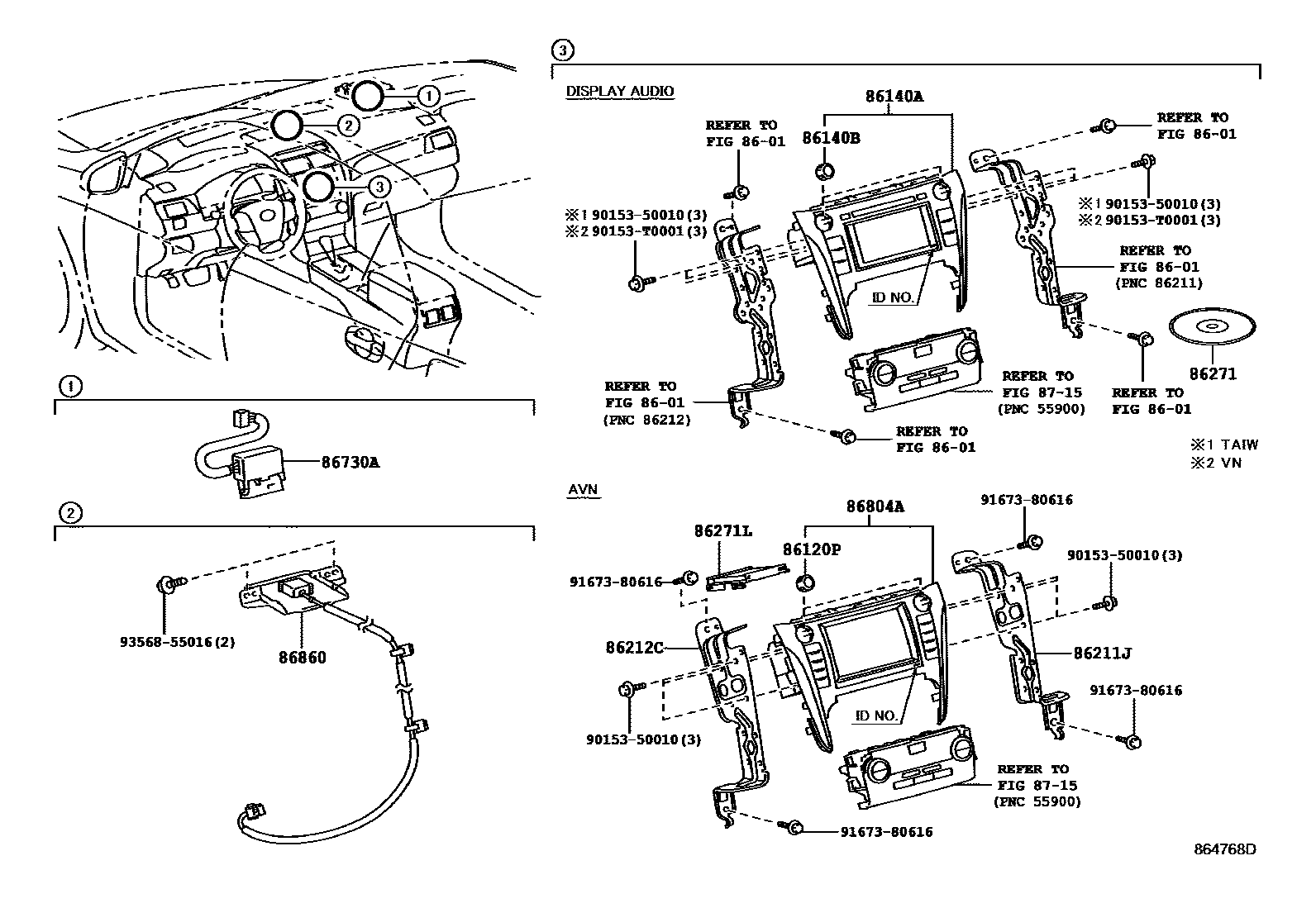

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0003 1 0006 1 0009 1

8601

86120PKNOB, NAVIGATION RECEIVER SWITCH

main90010-24166×2iAVV50..V..TH201203-201502

main90011-25276×2supersedes 90011-25276iAVV50..MA;ASV50,AVV50..(E,V)..TH201502-201809

AUDIO-RADIO LESS

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-06130iAVV50..V..TAIW201202-201503

PANASONIC,ID=59010

sub86140-06131

main86140-06160iAVV50..G..TH201203-201502

PANASONIC,ID=59013,AUDIO-AUDIO LESS

main86140-06170iASV50,AVV50..IND201207-201504

PANASONIC,ID=59010

main86140-06280iASV50,AVV50..IND201504-201610

FUJITSU TEN,ID100452

main86140-06110iASV50..VN201207-201504

PANASONIC,ID=59011,2.5Q PACKAGE

main86140-06270iASV50..VN201504-201611

PIONEER,ID=P10728,2.5Q PACKAGE

main86140-06830iASV50..VN201611-201903

PIONEER,2.5Q PACKAGE

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90010-24153×2iAVV50..V..TAIW201202-201503

main90011-25208×2iAVV50..IND;ASV50..IND,MA,TH;ASV50,AVV50..G..(IDN,TH)201203-201504

main90011-25275×2iASV50,AVV50..IND201801-201811

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-06150iASV51,AVV50..(G,N)..TAIW201705-202007

main86211-06160iAVV50..V..TH201203-201502

main86211-06230iASV5#,AVV50..IDN,MA,PHL,TH,VN201502-201903

main86211-06240iASV51,AVV50..(G,N)..TAIW201503-201705

main86211-33280iASV50,AVV50..IND201610-201811

main86211-33240supersedes 86211-06240iAVV50..V..TAIW201309-201503

AUDIO-AVN PREMIUM SYSTEM,8SPEAKER

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-06150iASV51,AVV50..(G,N)..TAIW201705-202007

main86212-06160iAVV50..V..TH201203-201502

main86212-06230iASV5#,AVV50..IDN,MA,PHL,TH,VN201502-201903

main86212-06240iASV51,AVV50..(G,N)..TAIW201503-201705

main86212-33280iASV50,AVV50..IND201610-201811

main86212-33240supersedes 86212-06240iAVV50..V..TAIW201309-201503

AUDIO-AVN PREMIUM SYSTEM,8SPEAKER

86271DISC, DISC PLAYER

main86271-0K011×6iASV50,AVV50..IND201610-201612

MICRO SD CARD

main86271-0K012×6iASV50,AVV50..IND201701-201712

MICRO SD CARD

main86271-0K013×6iASV50,AVV50..IND201801-201811

MICRO SD CARD

sub86271-0K014

main86271-60382iAVV50..MA;ASV50,AVV50..(E,V)..TH201502-201507

AUDIO-RADIO LESS,MICRO SD CARD

main86271-60383iAVV50..MA201709-201809

AUDIO-RADIO LESS,MICRO SD CARD

sub86271-60384

main86807-30150iAVV50..V..TH201203-201308

main86807-30151iAVV50..V..TH201309-201408

main86807-30152iAVV50..V..TH201409-201502

sub86807-30153

main86807-0W200supersedes 86271-60364iAVV50..V..TAIW201202-201207

MAP DISC(DOP)-WITH

sub86807-0W201

main86807-0W220supersedes 86271-60364iAVV50..V..TAIW201208-201307

MAP DISC(DOP)-WITH

main86807-0W221supersedes 86271-60364iAVV50..V..TAIW201308-201407

AUDIO-AVN PREMIUM SYSTEM,8SPEAKER

main86807-0W222supersedes 86271-60364iAVV50..V..TAIW201408-201503

AUDIO-AVN PREMIUM SYSTEM,8SPEAKER

86271LHARD DISC

main86271-33210iAVV50..V..TH201203-201207

main86271-33211iAVV50..V..TH201208-201307

main86271-33212iAVV50..V..TH201308-201407

main86271-33213iAVV50..V..TH201408-201502

sub86271-33214

main86271-33220iAVV50..V..TAIW201309-201503

AUDIO-AVN PREMIUM SYSTEM,8SPEAKER

86730AMICROPHONE ASSY, TELEPHONE

main86730-47030supersedes 86730-47030iAVV50..IND,TH;ASV50..G..IDN;ASV50..IND,MA,TH201203-201504

main86730-47040iAVV50..V..TAIW201503-201809

86804ASUB-ASSY, NAVIGATION COMPUTER

main86804-33290iAVV50..V..TH201203-201502

sub86804-33291

main86804-33280iAVV50..V..TAIW201309-201503

AUDIO-AVN PREMIUM SYSTEM,8SPEAKER

sub86804-33281

86860ANTENNA ASSY, NAVIGATION

main86860-33180iAVV50..V..TH201203-201502

main86860-33210supersedes 86860-33210iAVV50..MA;ASV50,AVV50..(E,V)..TH201502-201809

AUDIO-CD 6SPEAKER

main86860-33120supersedes 86860-33170iAVV50..V..TAIW201309-201503

AUDIO-AVN PREMIUM SYSTEM,8SPEAKER

8715

9015350010

main90153-50010

90153T0001

main90153-T0001

9167380616

main91673-80616

9356855016

main93568-55016

16 parts on this diagram · 4 diagrams in section
