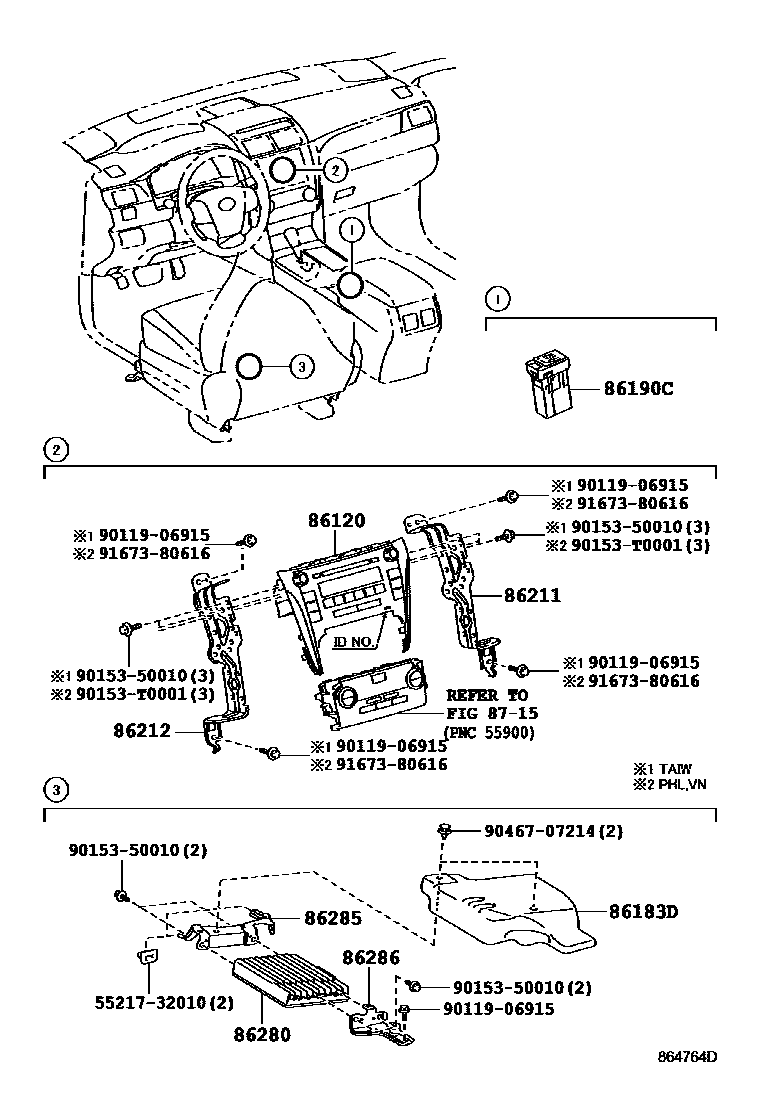

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0003 1 0006 1 0009 1 0012 1CONDENSER 0015 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-06820iACV51,ASV50..(E,N)..(IDN,MA)201203-201503

PIONEER,ID=P10117,AUDIO-RADIO LESS

main86120-06820iACV51,ASV50..(E,N)..(IDN,MA)201203-201503

PIONEER,ID=P10117

main86120-06830iACV51,ASV50,AVV50..(E,G,N)..TAIW201112-201503

PIONEER,ID=P10114

sub86120-06831

main86120-06830iACV51,ASV50,AVV50..(E,G,N)..TAIW201112-201503

PIONEER,ID=P10114,2.0E SPECIAL PACKAGE

sub86120-06831

main86120-06830iACV51,ASV50,AVV50..(E,G,N)..TAIW201112-201503

PIONEER,ID=P10114,2.0G SPECIAL PACKAGE

sub86120-06831

main86120-06840iASV50..G..PHL201203-201502

PIONEER,ID=P10115,AUDIO-RADIO LESS

main86120-06840iACV51,ASV50..PHL,VN201203-201504

PIONEER,ID=P10115

main86120-06880iASV50,AVV50..(E,G)..TH201203-201502

PIONEER,ID=P10116

main86120-06880iASV50,AVV50..(E,G)..TH201203-201502

PIONEER,ID=P10116,AUDIO-RADIO LESS

main86120-06880iASV50,AVV50..(E,G)..TH201203-201502

PIONEER,ID=P10116,AUDIO-CD 6SPEAKER

main86120-06A00iASV5#..(E,N)..(IDN,MA)201502-201608

PIONEER,ID=P10729,AUDIO-RADIO LESS

sub86120-06A01

main86120-06A00iASV5#..(E,N)..(IDN,MA)201502-201608

PIONEER,ID=P10729

sub86120-06A01

main86120-06A01iASV5#..(E,N)..(IDN,MA)201609-201809

PIONEER

main86120-06A01iASV5#..(E,N)..(IDN,MA)201609-201809

PIONEER,AUDIO-RADIO LESS

main86120-06A10iASV5#..PHL,VN201502-201903

PIONEER,ID=P10730

main86120-06A10iASV50..G..PHL201502-201809

PIONEER,ID=P10730,AUDIO-RADIO LESS

main86120-06A20iASV51..TH201502-201809

PIONEER,ID=P10727,AUDIO-CD 6SPEAKER

main86120-06A20iASV51..TH201502-201809

PIONEER,ID=P10727,AUDIO-RADIO LESS

main86120-06A20iASV50..TH201502-201809

PIONEER,ID=P10727

main86120-06A30iASV51,AVV50..(G,N)..TAIW201503-201705

PIONEER,ID=P10731

sub86120-06A31

86183DCOVER, AUDIO AMPLIFIER

main86183-33050-A0iAVV50..V..TAIW201202-201309

Q PACKAGE,SHELL,TRIM0#

sub86183-33050

main86183-33050-A0iAVV50..V..TAIW201309-201503

AUDIO-AVN PREMIUM SYSTEM,8SPEAKER,SHELL,TRIM0#

sub86183-33050

main86183-33050-A0iAVV50..V..TH201203-201502

SHELL,TRIM0#

sub86183-33050

main86183-33050-A1iASV50..TH201502-201811

FLAXEN,TRIM00

sub86183-33050

main86183-33050-A1iASV50..TH201502-201809

AUDIO-CD 6SPEAKER,FLAXEN,TRIM00

sub86183-33050

main86183-33050-A1iASV50..TH201502-201809

AUDIO-RADIO LESS,FLAXEN,TRIM00

sub86183-33050

main86183-33050-A1iASV50..TH201502-201809

SINGAPORE & BRUNEI SPEC,FLAXEN,TRIM00

sub86183-33050

main86183-33050-A1iAVV50..G..TH201502-201608

SINGAPORE SPEC,FLAXEN,TRIM00

sub86183-33050

main86183-33050-A1iAVV50..G..TH201502-201608

SPECIAL PACKAGE,FLAXEN,TRIM00

sub86183-33050

main86183-33050-C0iAVV50..IND201610-201811

BLACK,TRIM00

sub86183-33050

main86183-33050-C0iAVV50..V..TAIW201202-201309

Q PACKAGE,BLACK,TRIM2#

sub86183-33050

main86183-33050-C0iAVV50..V..TAIW201309-201503

AUDIO-AVN PREMIUM SYSTEM,8SPEAKER,BLACK,TRIM2#

sub86183-33050

main86183-33050-C0iAVV50..G..TH201502-201608

SINGAPORE SPEC,BLACK,TRIM00,2#,4#

sub86183-33050

main86183-33050-C0iAVV50..G..TH201502-201608

SPECIAL PACKAGE,BLACK,TRIM00,2#,4#

sub86183-33050

main86183-33050-C0iAVV50..G..TH201502-201608

AUDIO-AVN PREMIUM SYSTEM,10SPEAKER,BLACK,TRIM2#

sub86183-33050

main86183-33050-C0iASV50,AVV50..(E,V)..TH201502-201809

BLACK,TRIM00,2#,4#

sub86183-33050

main86183-33050-C0iASV50,AVV50..(E,V)..TH201502-201809

SINGAPORE & BRUNEI SPEC,BLACK,TRIM00,2#,4#

sub86183-33050

main86183-33050-C0iASV50,AVV50..(E,V)..TH201502-201809

AUDIO-CD 6SPEAKER,BLACK,TRIM00,2#,4#

sub86183-33050

main86183-33050-C0iASV50,AVV50..(E,V)..TH201502-201809

AUDIO-RADIO LESS,BLACK,TRIM00,2#,4#

sub86183-33050

main86183-33050-C0iAVV50..V..TAIW201503-201809

BLACK,TRIM00,2#

sub86183-33050

main86183-33050-C0iAVV50..V..TAIW201503-201809

BLACK,TRIM2#,4#

sub86183-33050

main86183-33050-C0iAVV50..V..TAIW201503-201809

MY DECONTENT PKG,BLACK,TRIM2#,4#

sub86183-33050

main86183-33050-C0iAVV50..G..TH201608-201809

AUDIO-AVN PREMIUM 12SP,BLACK,TRIM2#

sub86183-33050

main86183-33050-C0iASV50..IND201610-201811

BLACK,TRIM00,4#

sub86183-33050

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-33040iACV51,ASV50;AVV50..IND,TAIW,TH201202-201504

main86190-42040iAVV50..G..TH201502-201809

SINGAPORE SPEC

main86190-42040iAVV50..G..TH201502-201608

SINGAPORE SPEC&AUDIO-AVN PREMIUM SYSTEM,10SPEAKER

main86190-42040iASV51..TH;AVV50..V..TAIW201502-201809

BRUNEI SPEC

main86190-42040iASV51..E..MA201609-201809

main86190-48080iASV50..TH201502-201809

INDONESIA SPEC

main86190-48080iASV50..TH201502-201809

SINGAPORE SPEC&AUDIO-CD 6SPEAKER

main86190-48080iASV50..TH201502-201809

SINGAPORE SPEC&AUDIO-RADIO LESS

main86190-48080iASV50..TH201502-201809

BRUNEI SPEC&AUDIO-CD 6SPEAKER

main86190-48080iASV50..TH201502-201809

BRUNEI SPEC&AUDIO-RADIO LESS

main86190-48080iAVV50..MA201503-201809

MY DECONTENT PKG&AUDIO-RADIO LESS

main86190-48080iAVV50..G..TH201608-201809

SINGAPORE SPEC

main86190-48080iAVV50..G..TH201608-201809

SINGAPORE SPEC&AUDIO-AVN PREMIUM SYSTEM,10SPEAKER

main86190-48080iAVV50..G..TH201608-201809

AUDIO-AVN PREMIUM 12SP

main86190-48080iAVV50..MA;AVV50..V..TH;ASV50..MA,TH201502-201811

main86190-48080iASV50..VN201611-201903

2.5Q PACKAGE&AUDIO-DISP DVD 6SP(7INCH)

main86190-48080iASV51,AVV50..(E,G)..TH201502-201608

AUDIO-AVN PREMIUM SYSTEM,10SPEAKER

main86190-48080iASV50..VN201504-201611

2.5Q PACKAGE&AUDIO-DISPLAY DVD 6SPEAKER

main86190-76010iACV51,ASV50201112-201202

86211BRACKET, RADIO, NO.1

main86211-06140iAVV50..IND;AVV50..G..TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main86211-06140iASV5#..RHD..(E,N)201502-201809

AUDIO-RADIO LESS

main86211-06140iASV50..G..(IDN,MA)201502-201809

AUDIO-AUDIO LESS

main86211-06140iAVV50..MA201609-201809

MY DECONTENT PKG

main86211-06150iACV51,ASV50,AVV50..TAIW201112-201503

86212BRACKET, RADIO, NO.2

main86212-06140iASV5#..RHD..(E,N)201502-201809

AUDIO-AUDIO LESS

main86212-06140iAVV50..IND;AVV50..G..TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main86212-06140iASV5#..RHD..(E,N)201502-201809

AUDIO-RADIO LESS

main86212-06140iAVV50..MA201609-201809

MY DECONTENT PKG

main86212-06150iACV51,ASV50,AVV50..TAIW201112-201503

86280AMPLIFIER ASSY, STEREO COMPONENT

main86100-0W260iAVV50..V..TAIW201309-201310

AUDIO-AVN PREMIUM SYSTEM,8SPEAKER

sub86100-06470

sub86100-33510

main86100-0W260iAVV50..V..TH201203-201310

sub86100-06470

sub86100-33510

main86100-0W260iAVV50..V..TAIW201202-201309

Q PACKAGE

sub86100-06470

sub86100-33510

main86100-0W270iAVV50..V..TH201401-201502

main86100-33500iAVV50..V..TH201310-201401

main86100-33510iAVV50..V..TAIW201310-201503

AUDIO-AVN PREMIUM SYSTEM,8SPEAKER

sub86100-33511

main86280-06190iAVV50..MA201805-201809

AUDIO-CD 6SPEAKER

main86280-06190iAVV50..MA201805-201809

SINGAPORE & BRUNEI SPEC

main86280-06190iASV50..TH201805-201809

AUDIO-AVN PREMIUM 12SP

main86280-06190iASV50..TH201805-201809

MY DECONTENT PKG

main86280-06190iASV50..TH201805-201809

AUDIO-RADIO LESS

main86280-06190iAVV50..RHD;ASV50..IND,TH201805-201811

main86280-33230iASV51..TH201502-201608

AUDIO-RADIO LESS

main86280-33230iASV50..TH201502-201608

SINGAPORE & BRUNEI SPEC

main86280-33230iASV50..TH201502-201608

SINGAPORE SPEC

main86280-33230iASV50..TH201502-201608

SPECIAL PACKAGE

main86280-33230iASV50..TH201502-201608

AUDIO-CD 6SPEAKER

main86280-33230iASV50..TH201502-201608

AUDIO-AVN PREMIUM SYSTEM,10SPEAKER

main86280-33230iAVV50..MA201502-201609

main86280-33230iAVV50..MA201503-201609

MY DECONTENT PKG

main86280-33240iAVV50..V..TAIW201503-201712

sub86280-33241

main86280-33241iAVV50..V..TAIW201801-201809

main86280-33270iAVV50..MA201609-201805

MY DECONTENT PKG

main86280-33270iASV51..TH201608-201805

AUDIO-AVN PREMIUM 12SP

main86280-33270iASV51..TH201608-201805

AUDIO-RADIO LESS

main86280-33270iASV51..TH201608-201805

AUDIO-CD 6SPEAKER

main86280-33270iASV51..TH201608-201805

SINGAPORE & BRUNEI SPEC

main86280-33270iASV50,AVV50..IND201610-201805

86285BRACKET, AMPLIFIER, NO.1

main86285-33130iASV50..TH201502-201809

AUDIO-CD 6SPEAKER

main86285-33130iAVV50..V..TAIW201202-201309

Q PACKAGE

main86285-33130iAVV50..V..TH201203-201811

main86285-33130iAVV50..V..TAIW201309-201503

AUDIO-AVN PREMIUM SYSTEM,8SPEAKER

main86285-33130iAVV50..G..TH201502-201608

SINGAPORE SPEC

main86285-33130iAVV50..G..TH201502-201608

SPECIAL PACKAGE

main86285-33130iAVV50..G..TH201502-201608

AUDIO-AVN PREMIUM SYSTEM,10SPEAKER

main86285-33130iASV50..TH;AVV50..MA;AVV50..V..(TAIW,TH)201502-201809

SINGAPORE & BRUNEI SPEC

main86285-33130iASV50..TH;AVV50..MA;AVV50..V..(TAIW,TH)201502-201809

AUDIO-RADIO LESS

main86285-33130iAVV50..MA201503-201809

MY DECONTENT PKG

main86285-33130iAVV50..G..TH201608-201809

AUDIO-AVN PREMIUM 12SP

86286BRACKET, AMPLIFIER, NO.2

main86286-33130iASV50..TH201502-201809

AUDIO-CD 6SPEAKER

main86286-33130iASV50,AVV50..IND201203-201811

main86286-33130iASV51..TH201608-201809

AUDIO-AVN PREMIUM 12SP

main86286-33130iASV50..TH201502-201809

AUDIO-RADIO LESS

main86286-33130iAVV50..MA201503-201809

MY DECONTENT PKG

main86286-33130iAVV50..V..TAIW201202-201309

Q PACKAGE

main86286-33130iAVV50..V..TAIW201309-201503

AUDIO-AVN PREMIUM SYSTEM,8SPEAKER

main86286-33130iAVV50..G..TH201502-201608

SINGAPORE SPEC

main86286-33130iAVV50..G..TH201502-201608

SPECIAL PACKAGE

main86286-33130iAVV50..G..TH201502-201608

AUDIO-AVN PREMIUM SYSTEM,10SPEAKER

main86286-33130iASV50..TH;AVV50..MA;AVV50..V..(TAIW,TH)201502-201809

SINGAPORE & BRUNEI SPEC

8715

5521732010STRIP, DASH PANEL SILENCER FINISH

main55217-32010

9011906915

main90119-06915

9015350010

main90153-50010

90153T0001

main90153-T0001

9046707214

main90467-07214

9167380616

main91673-80616

15 parts on this diagram · 6 diagrams in section
