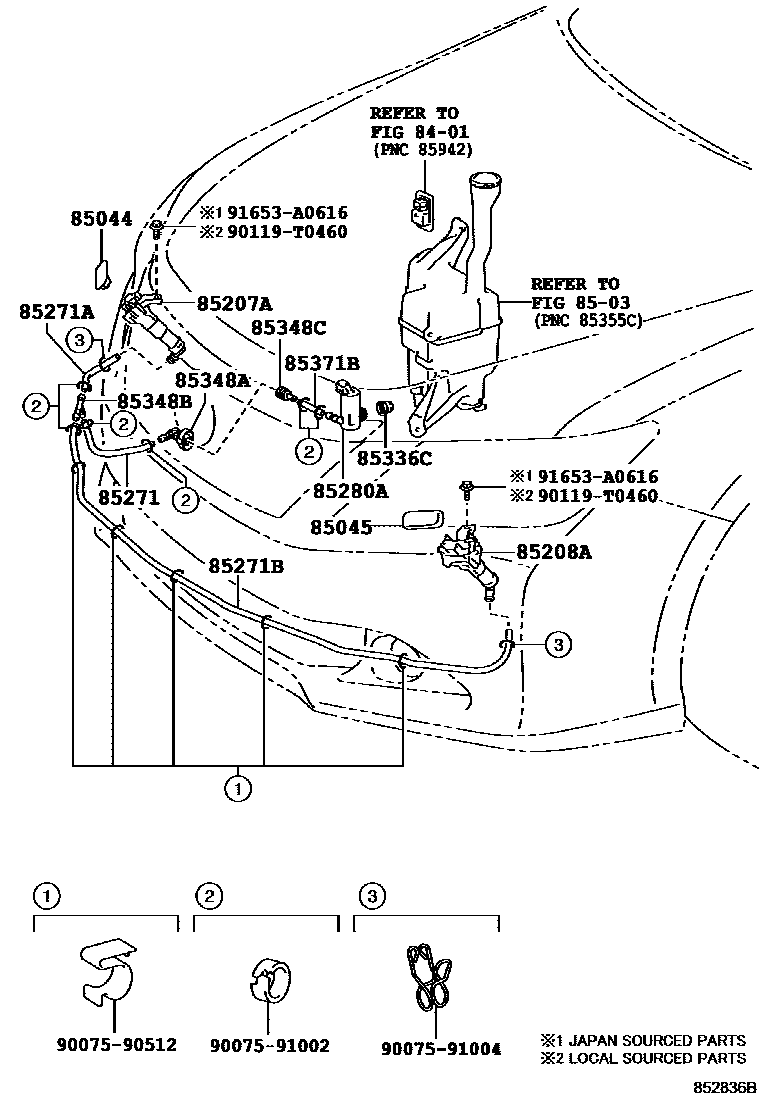

HEADLAMP CLEANER
8401
8503
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
L=220
L=180
85271AHOSE, HEADLAMP CLEANER, NO.2
L=35
L=120
85271BHOSE, HEADLAMP CLEANER, NO.3
L=1550
L=1800
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85336CPACKING, HEADLAMP CLEANER MOTOR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85371BHOSE, HEADLAMP CLEANER (FROM MOTOR TO JOINT)
L=35
9007590512
main90075-90512
9007591002
main90075-91002
9007591004
main90075-91004
90119T0460
main90119-T0460
91653A0616
main91653-A0616
20 parts on this diagram · 2 diagrams in section
