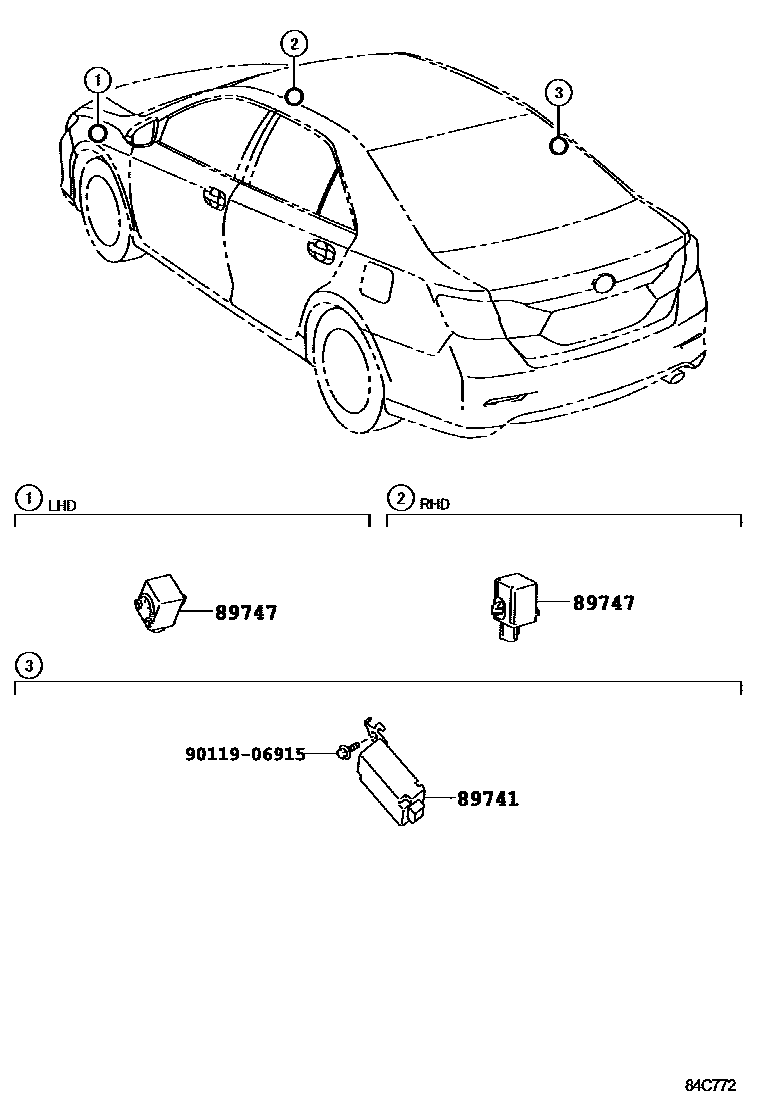

WIRELESS DOOR LOCK

0001 1W/O(SMART ENTRY) 0004 1W/O(SMART ENTRY) 0006 1W/(SMART ENTRY) 0009 1W/(SMART ENTRY)

89741RECEIVER, DOOR CONTROL

main89741-06100iACV51,ASV50..TH201203-201402

SINGAPORE SPEC OR BRUNEI SPEC

main89741-06100iASV50..VN201207-201504

2.5Q PACKAGE

main89741-06100iACV51..E..MA201203-201504

main89741-06110iASV50..E..IDN201203-201502

sub89741-06111

main89741-06150iASV51..N..TAIW201503-202007

main89741-06160iASV50..E..IDN201502-201809

sub89741-06161

main89741-33560iACV51,ASV50..N..TAIW201112-201503

2.0E SPECIAL PACKAGE

main89741-33560iASV51..N..TAIW201705-202007

LE PACKAGE

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iASV51,AVV50;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

main89747-30040iACV51,ASV50..TH201203-201402

SINGAPORE SPEC OR BRUNEI SPEC

main89747-30040iACV51..TAIW201112-201503

2.0E SPECIAL PACKAGE

main89747-30040iASV50..VN201207-201504

2.5Q PACKAGE

9011906915

main90119-06915

3 parts on this diagram · 4 diagrams in section
