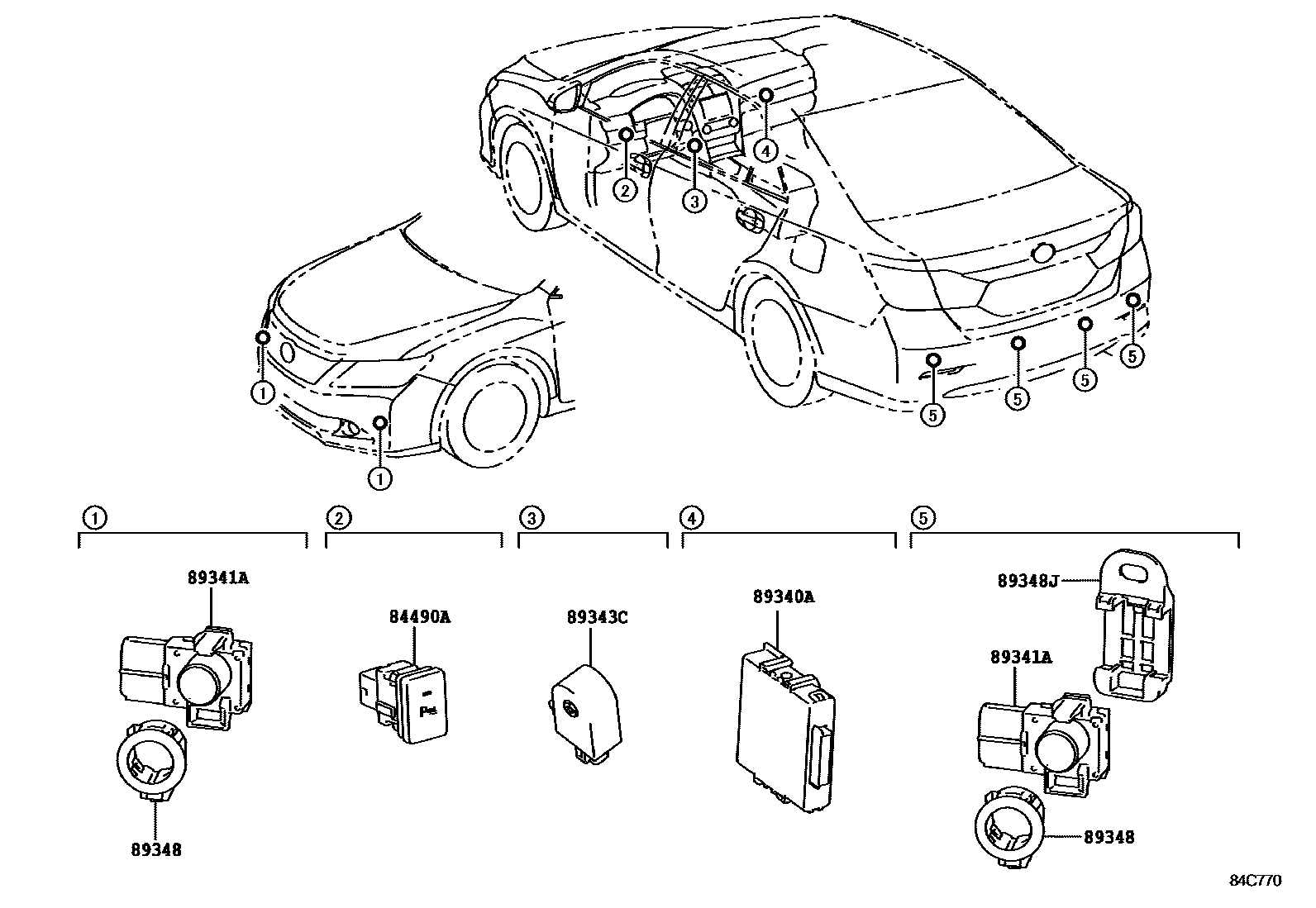

CLEARANCE & BACK SONAR

0001 1 0002 1 0003 1 0004 1

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-06101iAVV50;ASV50..G..IDN;ASV51..TAIW,TH,VN;ASV50..IND,MA,PHL,TH,VN201502-202007

main84490-33040iASV50..G..IDN;ASV50..MA,PHL,TAIW,TH,VN;ACV51,AVV50..(G,N,V)..(IND,TAIW,TH,VN)201112-201502

sub84490-33041

main84490-33041iACV51,ASV50,AVV50..IND,VN201503-201504

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-33110iASV50..IND,MA,TH,VN;ASV50,AVV50..G..(IDN,TAIW,TH)201202-201809

main89340-33120iASV51..VN201112-201903

main89340-33130iAVV50..V201202-201903

main89340-33280iASV51,AVV50..(G,N)..TAIW201604-202007

main89340-33290iAVV50..V..TAIW201604-201809

89341ASENSOR, ULTRASONIC, NO.1

main89341-12100-A1iAVV50..V..TAIW201604-201611

SUPER WHITE 2,040

sub89341-42060

main89341-12100-B3iAVV50..V..TAIW201604-201611

GRAY ME.,1G3

sub89341-42060

main89341-12100-B4iAVV50..V..TAIW201604-201611

SILVER ME.,1F7

sub89341-42060

main89341-12100-B5iAVV50..V..TAIW201604-201611

DK. STEEL MC.,1H2

sub89341-42060

main89341-12100-C1iAVV50..V..TAIW201604-201611

ATTITUDE BLACK MC.,218

sub89341-42060

main89341-33190-A0iAVV50..V..TAIW201112-201208

SUPER WHITE 2,040

sub89341-33210

sub89341-33190

main89341-33190-A1iAVV50..V..TH201203-201208

WHITE PEARL CS.,070

sub89341-33210

sub89341-33190

main89341-33190-B0iAVV50..G..TAIW201112-201208

SILVER ME.,1F7

sub89341-33210

sub89341-33190

main89341-33190-B1iASV50..MA,TH,VN;ASV50,AVV50..G..(IDN,TAIW,TH)201112-201208

GRAY ME.,1G3

sub89341-33210

sub89341-33190

main89341-33190-B2iACV51,ASV50..TAIW201112-201208

DK. STEEL MC.,1H2

sub89341-33210

sub89341-33190

main89341-33190-B4iAVV50..V..TH201203-201208

SILVER ME.,1D4

sub89341-33210

sub89341-33190

main89341-33190-B5iACV51..VN;ASV50..PHL201203-201208

MEDIUM SILVER ME.,1F8

sub89341-33210

sub89341-33190

main89341-33190-C0iAVV50..V201112-201208

ATTITUDE BLACK MC.,218

sub89341-33210

sub89341-33190

main89341-33190-E2iACV51..VN;ASV50..PHL201203-201208

BEIGE ME.,4R0

sub89341-33210

sub89341-33190

main89341-33190-J0iAVV50..G..TH201203-201208

TRUE BLUE M.M.,8W1

sub89341-33210

sub89341-33190

main89341-33190-J3iAVV50..G..TAIW201112-201208

BLUE ME.,8N0

sub89341-33210

sub89341-33190

main89341-33210iASV50..PHL201209-201302

main89341-33210-A0iACV51,ASV50..TAIW201209-201604

SUPER WHITE 2,040

main89341-33210-A1iAVV50..RHD..V201209-201903

WHITE PEARL CS.,070

main89341-33210-B0iACV51,ASV50..TAIW201209-201604

SILVER ME.,1F7

main89341-33210-B1iASV51,AVV50..(G,N)..TAIW201209-201811

GRAY ME.,1G3

main89341-33210-B2iACV51,ASV50..TAIW201209-201604

DK. STEEL MC.,1H2

main89341-33210-B3iACV51..VN201209-201903

SILVER ME.,1D4

main89341-33210-B4iAVV50..V..TH201209-201809

MEDIUM SILVER ME.,1F8

main89341-33210-C0iASV50..IND,MA,TH,VN;ASV50,AVV50..G..(IDN,TAIW,TH)201209-201903

ATTITUDE BLACK MC.,218

main89341-33210-E1iACV51..VN201209-201903

BEIGE ME.,4R0

main89341-33210-E5iASV50,AVV50..IND201502-201801

DK. BROWN M.M.,4U3

main89341-33210-E9iASV51..VN201707-201903

PHANTOM BROWN ME.,4W9

main89341-33210-J0iAVV50..G..TH201209-201811

TRUE BLUE M.M.,8W1

main89341-33210-J1iAVV50..G..TAIW201209-201503

BLUE ME.,8N0

main89341-33210-J7iASV50..G..IDN;ASV5#,AVV50..PHL,TH201502-201811

GRAYISH BLUE M.M.,8V5

main89341-42060-A0iASV51,AVV50..(G,N)..TAIW201612-202007

SUPER WHITE 2,040

main89341-42060-B1iAVV50..V..TAIW201612-202007

SILVER ME.,1F7

main89341-42060-B2iASV51,AVV50..(G,N)..TAIW201612-202007

GRAY ME.,1G3

main89341-42060-B3iASV51,AVV50..(G,N)..TAIW201612-202007

DK. STEEL MC.,1H2

main89341-42060-C2iAVV50..V..TAIW201612-202007

ATTITUDE BLACK MC.,218

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-72010iASV50..G..IDN;ASV50..IND,MA,PHL,TAIW,TH,VN;ACV51,AVV50..(G,N,V)..(IND,TAIW,TH,VN)201112-202007

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-33100-A0iAVV50..V..TAIW201112-201604

SUPER WHITE 2,040

sub89348-33100

main89348-33100-A1iASV50,AVV50..IND,VN201203-201903

WHITE PEARL CS.,070

sub89348-33100

main89348-33100-B0iAVV50..V..TAIW201112-201604

SILVER ME.,1F7

sub89348-33100

main89348-33100-B1iASV50..MA,TH,VN;ASV50,AVV50..G..(IDN,TAIW,TH)201112-201811

GRAY ME.,1G3

sub89348-33100

main89348-33100-B2iAVV50..G..TAIW201112-201604

DK. STEEL MC.,1H2

sub89348-33100

main89348-33100-B4iASV50..IND,MA,TH,VN;ASV50,AVV50..G..(IDN,TH)201203-201903

SILVER ME.,1D4

sub89348-33100

main89348-33100-B5iACV51..VN201203-201809

MEDIUM SILVER ME.,1F8

sub89348-33100

main89348-33100-C0iASV50..IND,MA,TH,VN;ASV50,AVV50..G..(IDN,TAIW,TH)201112-201903

ATTITUDE BLACK MC.,218

sub89348-33100

main89348-33100-E2iASV50..VN201203-201903

BEIGE ME.,4R0

sub89348-33100

main89348-33100-E6iASV50..G..IDN;ASV5#,AVV50..PHL,TH201502-201801

DK. BROWN M.M.,4U3

sub89348-33100

main89348-33100-J0iAVV50..G..TH201203-201811

TRUE BLUE M.M.,8W1

sub89348-33100

main89348-33100-J3iAVV50..V..TAIW201112-201503

BLUE ME.,8N0

sub89348-33100

main89348-33100-J9iAVV50..V..TAIW201502-201811

GRAYISH BLUE M.M.,8V5

sub89348-33100

main89348-33100-L1iASV51..VN201707-201903

PHANTOM BROWN ME.,4W9

sub89348-33100

89348JCLIP, ULTRASONIC SENSOR

main89348-12020iASV51,AVV50..TAIW201604-202007

main89348-33090iASV5#,AVV50..IND,VN201112-201903

6 parts on this diagram · 4 diagrams in section
