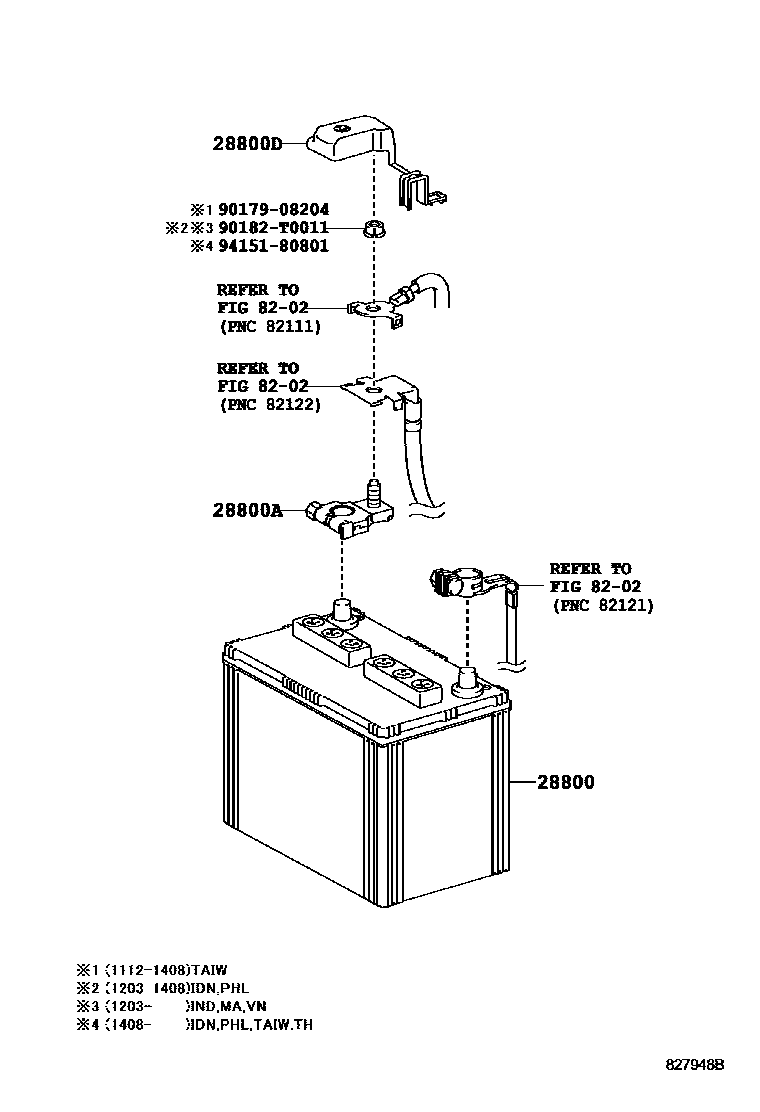

BATTERY & BATTERY CABLE

0001 1 0004 1 0007 112V BATTERY 0009 112V BATTERY 0012 1HV BATTERY 0013 1HV BATTERY 0014 1HV BATTERY

28800BATTERY

main28800-0H010i1AZFE,2ARFE..ACV51,ASV50..TAIW201112-202007

55D23L,YUASA

main28800-0H020i6ARFSE..ASV51..TAIW201112-202007

55D23L,GS

main28800-0H040i1AZFE,2ARFE..ACV51,ASV50..IDN,IND,PHL,TH201203-201212

55D23L

sub28800-0H041

main28800-0H041i1AZFE,2ARFE..ACV51,ASV50..IDN,IND,PHL,TH201301-201610

55D23L

sub28800-0H042

main28800-0H042i2ARFE,6ARFSE..ASV5#..IDN,IND,PHL,TH201611-201811

55D23L

main28800-0H080i1AZFE,2ARFE..ACV51,ASV50..VN201207-201504

55D23L,YUASA

main28800-0H080i2ARFE,6ARFSE..ASV5#..VN201504-201903

55D23L

main28800-0V050i1AZFE,2ARFE..ACV51,ASV50..MA201205-201503

55D23L,YUASA

main28800-28100i2ARFXE..AVV50201202-201811

S55D23R

sub28800-28101

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2ARFXE..AVV50..IND,TAIW,TH201112-202007

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33350i6ARFSE..ASV51;2ARFE..ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

main82821-47110i2ARFXE..AVV50..IND,TAIW,TH201202-201811

8202

9017908204

main90179-08204

90182T0011

main90182-T0011

9415180801

main94151-80801

7 parts on this diagram · 7 diagrams in section
