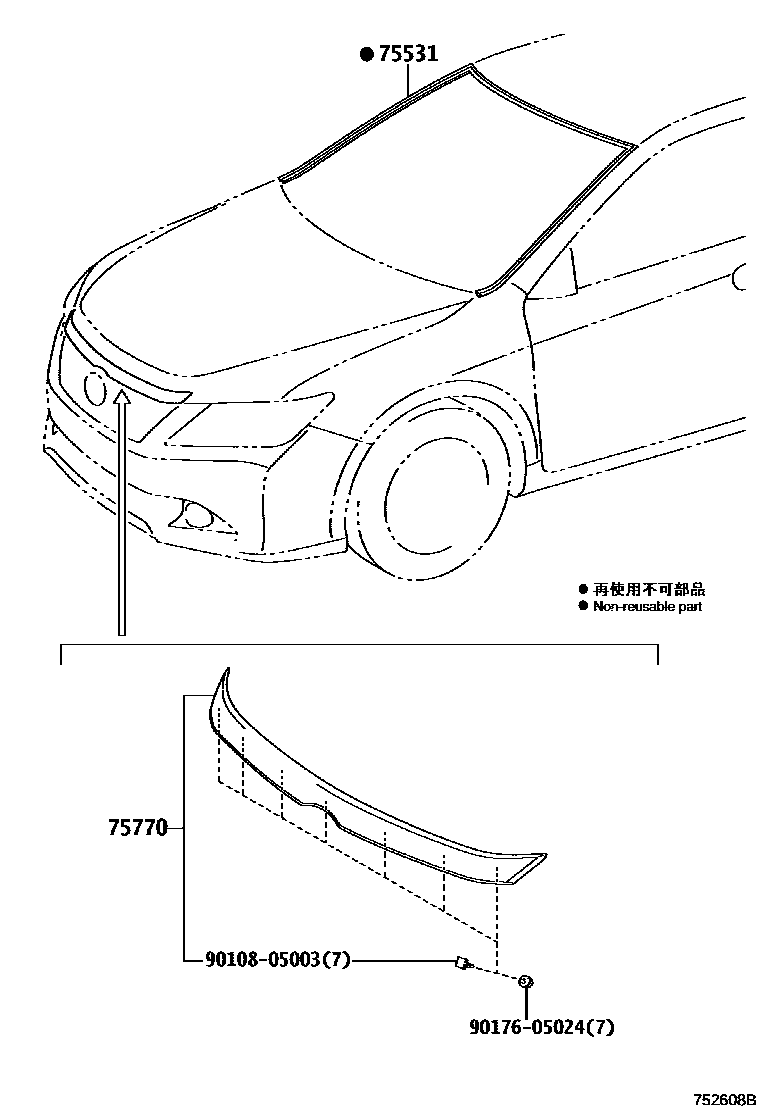

FRONT MOULDING

0001 1 0002 1 0005 1 0006 1

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-06190iASV51,AVV50..TAIW201112-202007

main75531-06200iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main75531-33140iAVV50..TAIW201202-201308

75770MOULDING ASSY, HOOD, FRONT

main75770-06020iACV51,ASV50,AVV50..TAIW201112-201311

PLATED

sub75770-06021

main75770-06021iACV51,ASV50,AVV50..TAIW201312-201503

PLATED

main75770-06070iASV51,AVV50..TAIW201503-202007

9010805003

main90108-05003

9017605024

main90176-05024

4 parts on this diagram · 4 diagrams in section
