EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0004 1

5301

75310AEMBLEM ASSY, RADIATOR GRILLE

main53141-47011iAVV50..V..TAIW¥21,000201712-201809

Q PACKAGE

main53141-47012iAVV50..V..TH¥21,000201502-201711

sub53141-47011¥21,000

main75310-06080iAVV50..TAIW201312-201809

main75310-06090iAVV50..IND;AVV50..RHD..G201402-201811

main75310-47010iAVV50..TAIW¥4,200201202-201402

main90975-02189iACV51,ASV50..TAIW201112-201402

main90975-T2005iACV51,ASV50..IDN,IND,MA,PHL,TH,VN201402-201903

main90975-T2010iASV51..TAIW201402-202007

75361BPLATE, SIDE PANEL NAME

main75443-06A50iACV51..MA,TH,VN201203-201504

VVT-I

main75443-06A70iASV50..IDN,IND,MA,PHL,TH,VN201203-201903

DUAL VVT-I

main75443-06A80iASV51..MA,TH,VN201502-201903

TOYOTA VVT-IW

75374EMBLEM, SIDE PANEL

main75374-06150iAVV50..TAIW201409-201809

RH

main75374-06160iAVV50..TAIW201409-201809

LH

main75374-52050iAVV50..IND,TH¥2,460201202-201811

RH

main75374-52060iAVV50..TAIW¥2,460201202-201811

LH

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main75403-06050iACV51,ASV50..TAIW201402-201503

main75403-06060iACV51,ASV50..IDN,IND,PHL,TH,VN201402-201504

main75403-06070iAVV50..TAIW201402-201809

main75403-06080iAVV50..IND,TH201402-201811

main75403-33050iACV51,ASV50..TAIW201112-201503

main75403-75010iAVV50..RHD¥2,280201202-201402

main75431-02090iASV51;ASV50..IDN,IND,MA,PHL,TH,VN201502-202007

75441APLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-33151iAVV50..IND,TAIW,TH¥2,210201202-201811

main75443-06B70iASV51..MA,TH,VN201502-201903

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-06220iASV51,AVV50..TAIW201112-202007

CAMRY

main75442-06230iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

CAMRY

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-06780iASV51..TAIW201112-201604

2.0

main75443-06790iASV50..TAIW201112-201503

2.5

main75443-06810iACV51..MA,TH,VN201203-201903

2.0

main75443-06820iASV50..IDN,IND,MA,PHL,TH,VN201203-201903

2.5

main75443-06830iAVV50..IND,TH201203-201811

HYBRID

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75444-06340iACV51..N..(MA,VN)201205-201903

E

main75444-06350iASV50..IND;ACV51,ASV50..E..(IDN,MA,PHL,TH,VN)201203-201903

G

main75444-06360iASV50..G..(IDN,MA,PHL)201203-201809

V

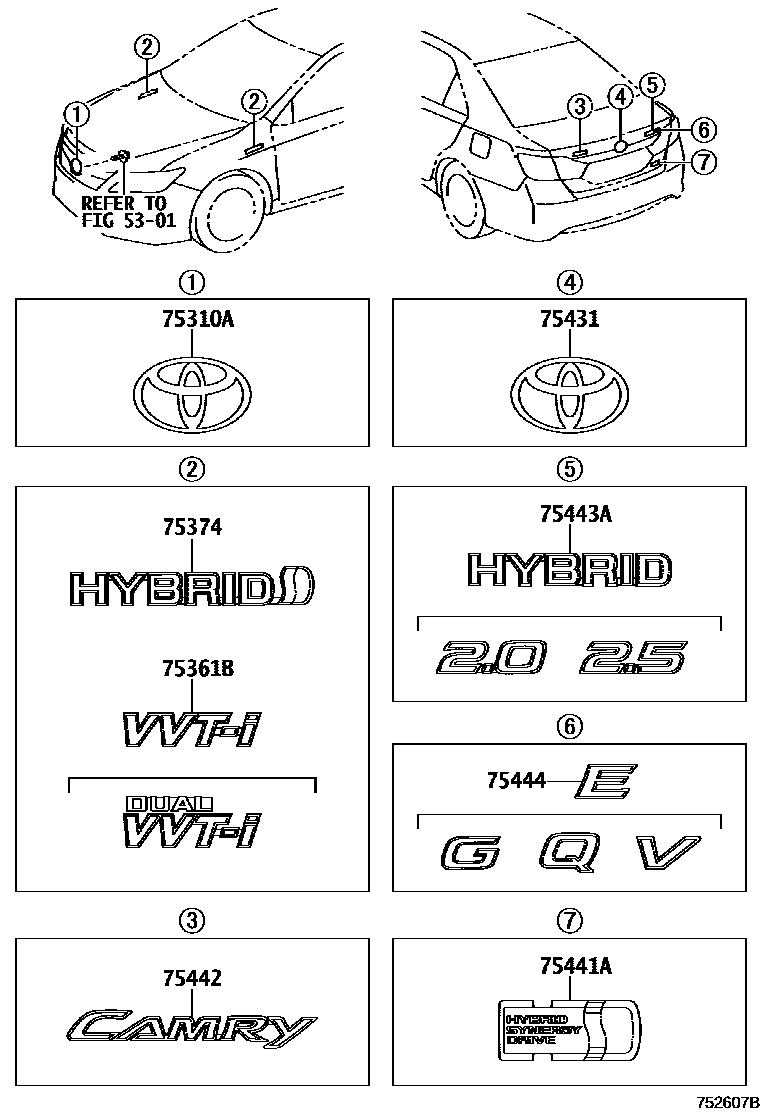

9 parts on this diagram · 2 diagrams in section
