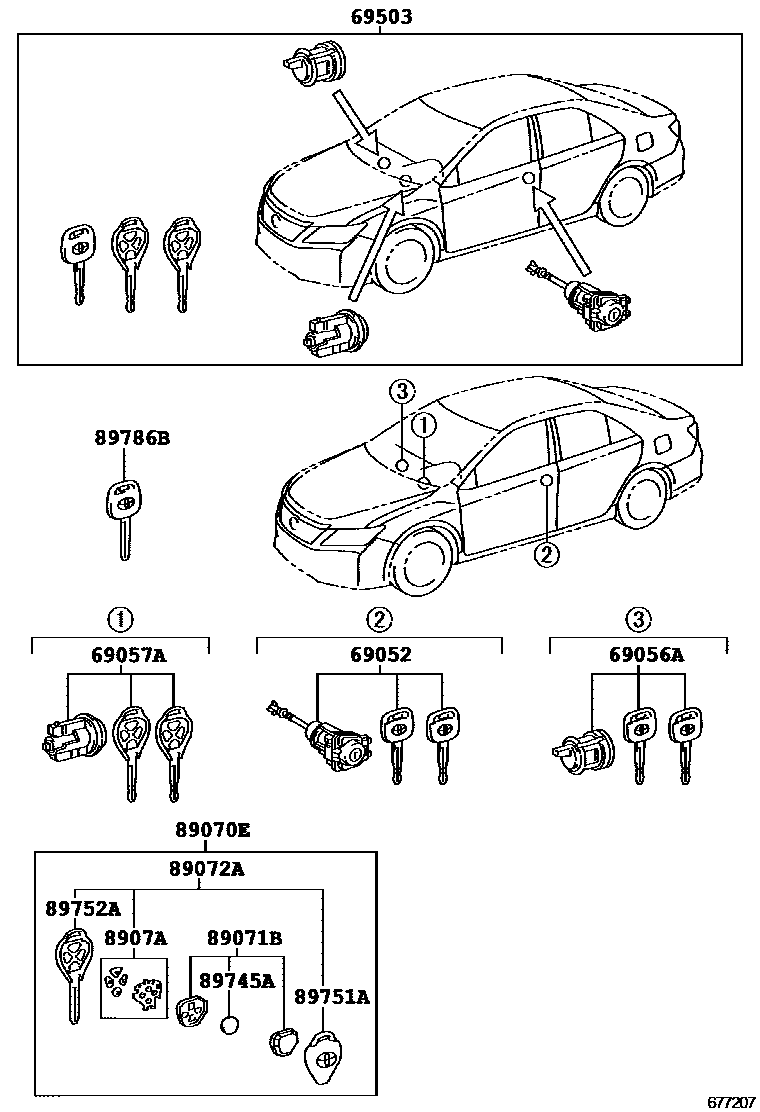

LOCK CYLINDER SET

0001 1W/O(SMART ENTRY) 0004 1W/O(SMART ENTRY) 0005 1W/O(SMART ENTRY) LE PACKAGE 0006 1W/O(SMART ENTRY) 0008 1W/O(SMART ENTRY) 0009 1W(SMART ENTRY) 0012 1W(SMART ENTRY)

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-06061iACV51,ASV50..(E,N)..(PHL,VN)201203-201504

main69052-06111iASV50..G..PHL201203-201502

main69052-06201iACV51,ASV50..N..TAIW201112-201503

main69052-06230iASV51..N..TAIW201503-202007

main69052-06300iASV5#..PHL,VN201502-201903

main69052-33291iASV50,AVV50..(E,G,V)..TAIW201112-201503

main69052-33380iASV51,AVV50..(G,V)..TAIW201503-201809

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-06040iACV51..E..MA201203-201504

sub69056-0E100

main69056-06060iACV51,ASV50..N..TAIW201112-201503

main69056-06100iACV51..E..MA201203-201411

main69056-06140iASV50..E..IDN201502-201809

main69056-06150iASV51..N..TAIW201503-202007

main69056-06160iASV50..VN201411-201504

2.5Q PACKAGE

main69056-06210iASV50..G..IDN;ASV5#,AVV50..IND,MA,PHL,TH,VN201502-201903

main69056-33230iASV50,AVV50..(E,G,V)..TAIW201112-201503

main69056-33240iASV51,AVV50..(G,V)..TAIW201503-201809

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-02580iACV51,ASV50..TH201203-201504

main69057-06190iASV50..E..IDN201502-201809

main69057-06200iASV51..N..TAIW201503-202007

main69057-06320iACV51,ASV50..N..TAIW201112-201503

main69057-06330iACV51..N..MA201305-201503

69503CYLINDER SET, LOCK

main69005-06471iACV51,ASV50..(E,N)..(PHL,VN)201203-201504

main69005-06521iASV50..G..PHL201203-201502

main69005-06531iACV51,ASV50..TH201203-201502

main69005-06541iAVV50..IND,TH;ASV50..RHD..G201203-201504

main69005-06661iACV51,ASV50..N..TAIW201112-201503

main69005-06680iACV51..N..MA201305-201503

main69005-06810iASV5#..PHL,VN201502-201903

main69005-06820iASV50..G..IDN;ASV5#,AVV50..IND,MA,TH201502-201811

main69005-33C51iASV50,AVV50..(E,G,V)..TAIW201112-201503

main69005-33D40iASV51,AVV50..(G,V)..TAIW201503-201809

main89704-06550iASV51..N..TAIW201503-202007

main89704-06560iASV50..E..IDN201502-201809

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-06400iACV51..N..MA201305-201503

sub89070-06401

main89070-06580iACV51,ASV50..TH201203-201402

SINGAPORE SPEC OR BRUNEI SPEC

sub89070-06581

main89070-06580iACV51..MA201203-201504

sub89070-06581

main89070-06600iACV51..TAIW201112-201503

2.0E SPECIAL PACKAGE

sub89070-06601

main89070-06630iASV50..E..IDN201203-201502

sub89070-06631

main89070-06740iASV51..N..TAIW201503-202007

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-33311iACV51,ASV50..(E,N)..(PHL,VN)201203-201504

sub89071-33312

main89071-33311iACV51,ASV50..TH201203-201402

SINGAPORE SPEC OR BRUNEI SPEC

sub89071-33312

main89071-33400iACV51..TAIW201112-201503

2.0E SPECIAL PACKAGE

sub89071-33401

main89071-33490iACV51..N..MA201305-201503

sub89071-33491

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-06270iACV51,ASV50..N..TAIW201112-201503

2.0E SPECIAL PACKAGE

main89072-06290iACV51,ASV50..(E,N)..(IDN,PHL,VN)201203-201504

main89072-06290iACV51,ASV50..TH201203-201402

SINGAPORE SPEC OR BRUNEI SPEC

main89072-06470iACV51..N..MA201305-201503

8907ASWITCH SET, TRANSMITTER

main8907A-33040iACV51,ASV50..LHD..N;ASV50..E..(IDN,PHL,VN)201112-201504

main8907A-33060iACV51..N..MA201305-201503

89745ABATTERY, TRANSMITTER

main89745-02050iASV51..N..TAIW201503-202007

CR1620

main89745-0D040iASV50..E..IDN201502-201809

CR1620

main89745-71010iACV51,ASV50..TH201112-201504

89751ACOVER, TRANSMITTER HOUSING

main89751-02200iASV51..N..TAIW201503-202007

main89751-06080iASV50..E..IDN201502-201809

main89751-0K080iACV51,ASV50..TH201309-201402

SINGAPORE SPEC OR BRUNEI SPEC

main89751-0K080iASV50..VN201309-201504

2.5Q PACKAGE

main89751-0M010iACV51..TAIW201112-201503

2.0E SPECIAL PACKAGE

main89751-52140iACV51..E..MA201203-201305

main89751-52140iACV51,ASV50..TH201203-201308

SINGAPORE SPEC OR BRUNEI SPEC

89752ACASE, TRANSMITTER HOUSING

main89752-02310iACV51,ASV50..TH201203-201402

SINGAPORE SPEC OR BRUNEI SPEC

main89752-02310iACV51..MA201203-201504

main89752-06120iACV51..N..MA201305-201503

main89752-12120iACV51..TAIW201112-201503

2.0E SPECIAL PACKAGE

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-02220iACV51..TAIW201112-201503

2.0E SPECIAL PACKAGE

main89786-06130iASV51..N..TAIW201503-202007

BLANK KEY

main89786-06150iASV50..E..IDN201502-201809

CUT KEY

main89786-06170iASV51..N..TAIW201503-202007

CUT KEY

main89786-06170iASV51..N..TAIW201503-202007

CUT KEY,LE PACKAGE

main89786-08040iACV51,ASV50..TH201203-201504

BLANK KEY

main89786-08040iACV51,ASV50..TH201203-201402

BLANK KEY,SINGAPORE SPEC OR BRUNEI SPEC

12 parts on this diagram · 7 diagrams in section
