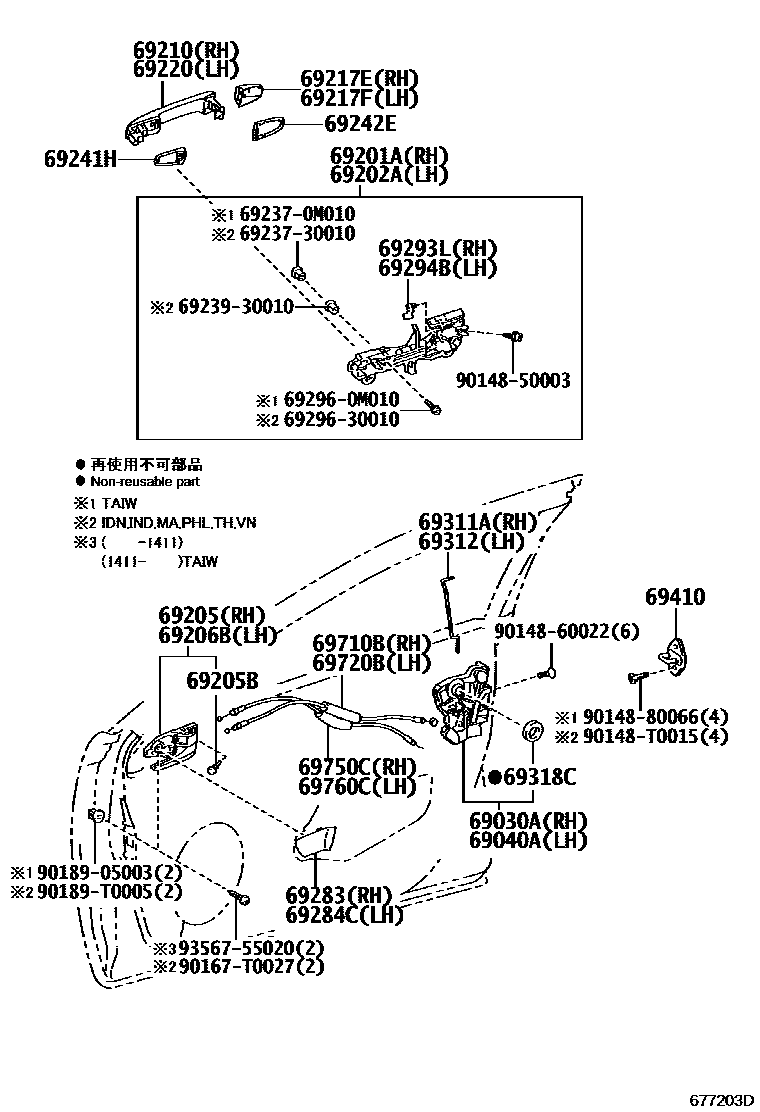

FRONT DOOR LOCK & HANDLE

0001 1 0004 1

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-02470iASV5#,AVV50..IDN,MA,TH201502-201809

main69030-02480iASV5#..PHL,VN201502-201903

main69030-02580iASV51,AVV50..TAIW201503-202007

main69030-02610iASV50,AVV50..IND201504-201811

main69030-06110iAVV50..IND,TH;ACV51,ASV50..RHD201203-201504

main69030-06120iACV51,ASV50..PHL,VN201203-201504

main69030-06130iACV51,ASV50,AVV50..TAIW201112-201503

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-02450iASV5#..PHL,VN201502-201903

main69040-02470iASV5#,AVV50..IDN,MA,TH201502-201809

main69040-02560iASV51,AVV50..TAIW201503-202007

main69040-02570iASV50,AVV50..IND201504-201811

main69040-06100iAVV50..IND,TH;ACV51,ASV50..RHD201203-201504

main69040-06110iACV51,ASV50..PHL,VN201203-201504

main69040-06120iACV51,ASV50,AVV50..TAIW201112-201503

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-06110iACV51,ASV50,AVV50..TAIW201112-202007

main69201-52130iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-06110iACV51,ASV50,AVV50..TAIW201112-202007

main69202-52070iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-06151-C0iASV51,AVV50..TAIW201112-202007

BLACK,TRIM0#,2#

main69205-33111-C0iACV51..E..MA201205-201503

BLACK,TRIM2#

main69205-33111-C0iASV50..E..PHL;ASV50,AVV50..(G,V)..(IND,TH)201203-201504

BLACK,TRIM0#

main69205-33111-C0iAVV50..IND,TH;ASV5#..E..(TH,VN)201203-201903

BLACK,TRIM0#,2#

main69205-33111-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

main69205-33111-C0iASV50..G;ASV51..VN;ASV5#..E..(MA,PHL)201502-201903

BLACK,TRIM0#,2#,4#

main69205-33120-C0iASV50..VN201207-201809

BLACK,TRIM0#,2#

main69205-33120-C0iASV50..E..IDN;ACV51..N..(MA,VN)201203-201809

BLACK,TRIM0#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90080-54005iACV51,ASV50,AVV50..TAIW201112-202007

main90541-04027iASV51..N..MA;ASV50..E..IDN201203-201903

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-06141-C0iASV51,AVV50..TAIW201112-202007

BLACK,TRIM0#,2#

main69206-33121-C0iASV50..G;ASV51..VN;ASV5#..E..(MA,PHL)201502-201903

BLACK,TRIM0#,2#,4#

main69206-33121-C0iACV51..TH;ASV50..MA,TH;ASV50..G..(IDN,PHL)201203-201903

BLACK,TRIM0#,2#

main69206-33121-C0iACV51..E..MA201205-201503

BLACK,TRIM2#

main69206-33121-C0iASV50..E..PHL;ASV50,AVV50..(G,V)..(IND,TH)201203-201504

BLACK,TRIM0#

main69206-33121-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

main69206-33130-C0iASV50..E..IDN201203-201809

BLACK,TRIM0#

main69206-33130-C0iASV51..N..MA201207-201809

BLACK,TRIM0#,2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-06220-A0iACV51,ASV50,AVV50..TAIW201112-201809

SUPER WHITE 2,040

main69210-06220-B0iACV51,ASV50,AVV50..TAIW201112-201809

SILVER ME.,1F7

main69210-06220-B1iACV51,ASV50,AVV50..TAIW201112-201809

GRAY ME.,1G3

main69210-06220-B2iASV51,AVV50..(G,V)..TAIW201112-201809

DK. STEEL MC.,1H2

main69210-06220-C0iACV51,ASV50,AVV50..TAIW201112-201809

ATTITUDE BLACK MC.,218

main69210-06220-J0iACV51,ASV50,AVV50..TAIW201112-201503

BLUE ME.,8N0

main69210-33110-A1iASV5#..PHL,VN201203-201903

WHITE PEARL CS.,070

sub69210-33110

main69210-33110-B1iASV50..PHL201203-201809

GRAY ME.,1G3

sub69210-33110

main69210-33110-B3iASV5#..PHL,VN201203-201903

SILVER ME.,1D4

sub69210-33110

main69210-33110-B4iASV50..PHL201203-201502

MEDIUM SILVER ME.,1F8

sub69210-33110

main69210-33110-C0iASV50..PHL201203-201903

ATTITUDE BLACK MC.,218

sub69210-33110

main69210-33110-E1iASV5#..VN201203-201903

BEIGE ME.,4R0

sub69210-33110

main69210-33110-E5iASV50..PHL201502-201707

DK. BROWN M.M.,4U3

sub69210-33110

main69210-33110-E6iASV5#..PHL,VN201707-201903

PHANTOM BROWN ME.,4W9

sub69210-33110

main69210-33110-J3iASV5#..PHL,VN201502-201811

GRAYISH BLUE M.M.,8V5

sub69210-33110

main69210-33120-A1iACV51..E..MA;AVV50..IND,TH;ASV50..RHD..G201203-201811

WHITE PEARL CS.,070

sub69210-33120

main69210-33120-B1iAVV50..IND,TH;ASV50..G..(IDN,MA)201203-201811

GRAY ME.,1G3

sub69210-33120

main69210-33120-B3iACV51..E..MA;AVV50..IND,TH;ASV50..RHD..G201203-201811

SILVER ME.,1D4

sub69210-33120

main69210-33120-B4iACV51..E..MA;ASV50,AVV50..(G,V)..(IDN,MA,TH)201203-201809

MEDIUM SILVER ME.,1F8

sub69210-33120

main69210-33120-C0iACV51..E..MA;AVV50..IND,TH;ASV50..RHD..G201203-201811

ATTITUDE BLACK MC.,218

sub69210-33120

main69210-33120-E2iACV51,ASV50..TH201203-201504

BEIGE ME.,4R0

sub69210-33120

main69210-33120-E6iASV50..G..IDN;ASV5#,AVV50..IND,TH201502-201707

DK. BROWN M.M.,4U3

sub69210-33120

main69210-33120-E7iASV50..G..IDN;ASV5#,AVV50..IND,TH201707-201811

PHANTOM BROWN ME.,4W9

sub69210-33120

main69210-33120-J2iAVV50..TH201203-201811

TRUE BLUE M.M.,8W1

sub69210-33120

main69210-33120-J6iASV50..IND,TH;ASV50..G..IDN;ASV51,AVV50..TH201502-201811

GRAYISH BLUE M.M.,8V5

sub69210-33120

main69211-52901iASV50..E..IDN;ASV51..N..TAIW201203-202007

PAINT REQ.

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-52901iACV51..N..MA;ASV50..E..IDN201203-201809

LESS COLOR

main69217-52902iACV51,ASV50..VN201207-202007

LESS COLOR

main69250-06190-A0iASV51,AVV50..(G,V)..TAIW201112-201809

SUPER WHITE 2,040

main69250-06190-B0iACV51,ASV50,AVV50..TAIW201112-201809

SILVER ME.,1F7

main69250-06190-B1iACV51,ASV50,AVV50..TAIW201112-201809

GRAY ME.,1G3

main69250-06190-B2iASV51,AVV50..(G,V)..TAIW201112-201809

DK. STEEL MC.,1H2

main69250-06190-C0iACV51,ASV50,AVV50..TAIW201112-201809

ATTITUDE BLACK MC.,218

main69250-06190-J0iACV51,ASV50,AVV50..TAIW201112-201503

BLUE ME.,8N0

main69250-33010-A1iASV50..G..IDN;ASV5#,AVV50..IND,MA,TH201203-201811

WHITE PEARL CS.,070

sub69250-33010

main69250-33010-B1iASV50..MA,TH;ASV50..G..IDN;ACV51,AVV50..IND,TH201203-201811

GRAY ME.,1G3

sub69250-33010

main69250-33010-B3iAVV50..IND,TH;ASV50..G..IDN;ACV51,ASV50..(E,G)..(IND,MA,TH)201203-201811

SILVER ME.,1D4

sub69250-33010

main69250-33010-B4iASV5#,AVV50..MA201203-201809

MEDIUM SILVER ME.,1F8

sub69250-33010

main69250-33010-C0iASV50..G..IDN;ASV5#,AVV50..IND,MA,TH201203-201811

ATTITUDE BLACK MC.,218

sub69250-33010

main69250-33010-E1iASV50..G..IDN;ACV51,AVV50..TH;ASV50..IND,MA,TH201203-201504

BEIGE ME.,4R0

sub69250-33010

main69250-33010-E6iASV50..G..IDN;ASV5#,AVV50..IND,TH201502-201707

DK. BROWN M.M.,4U3

sub69250-33010

main69250-33010-E7iASV50..G..IDN;ASV5#,AVV50..IND,TH201707-201811

PHANTOM BROWN ME.,4W9

sub69250-33010

main69250-33010-J0iAVV50..TH201203-201811

TRUE BLUE M.M.,8W1

sub69250-33010

main69250-33010-J6iASV50..IND,TH;ASV50..G..IDN;ASV51,AVV50..TH201502-201811

GRAYISH BLUE M.M.,8V5

sub69250-33010

main69250-33020-A1iASV50..PHL201203-201903

WHITE PEARL CS.,070

sub69250-33020

main69250-33020-B1iASV50..PHL201203-201809

GRAY ME.,1G3

sub69250-33020

main69250-33020-B3iASV5#..PHL,VN201203-201903

SILVER ME.,1D4

sub69250-33020

main69250-33020-B4iASV50..PHL201203-201502

MEDIUM SILVER ME.,1F8

sub69250-33020

main69250-33020-C0iASV50..PHL201203-201903

ATTITUDE BLACK MC.,218

sub69250-33020

main69250-33020-E1iASV50..PHL201203-201903

BEIGE ME.,4R0

sub69250-33020

main69250-33020-E6iASV50..PHL201502-201707

DK. BROWN M.M.,4U3

sub69250-33020

main69250-33020-E7iASV5#..PHL,VN201707-201903

PHANTOM BROWN ME.,4W9

sub69250-33020

main69250-33020-J5iASV5#..PHL,VN201502-201811

GRAYISH BLUE M.M.,8V5

sub69250-33020

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-52901iACV51,ASV50..VN201207-202007

LESS COLOR

main69217-52902iACV51..N..MA;ASV50..E..IDN201203-201809

LESS COLOR

main69250-06180-A0iACV51,ASV50..N..TAIW201112-201503

SUPER WHITE 2,040

main69250-06180-B0iACV51,ASV50..N..TAIW201112-201503

SILVER ME.,1F7

main69250-06180-B1iACV51,ASV50..N..TAIW201112-201503

GRAY ME.,1G3

main69250-06180-B2iACV51,ASV50..N..TAIW201112-201503

DK. STEEL MC.,1H2

main69250-06180-C0iACV51,ASV50..N..TAIW201112-201503

ATTITUDE BLACK MC.,218

main69250-06180-J0iACV51,ASV50..N..TAIW201112-201503

BLUE ME.,8N0

main69250-33010-A0iASV50,AVV50..(E,G,V)..TAIW201112-201809

SUPER WHITE 2,040

sub69250-33010

main69250-33010-A1iASV5#..PHL,VN201203-201903

WHITE PEARL CS.,070

sub69250-33010

main69250-33010-B0iASV50,AVV50..(E,G,V)..TAIW201112-201809

SILVER ME.,1F7

sub69250-33010

main69250-33010-B1iASV50..PHL;ASV51,AVV50..(G,V)..TAIW201112-201809

GRAY ME.,1G3

sub69250-33010

main69250-33010-B2iASV50,AVV50..(E,G,V)..TAIW201112-201809

DK. STEEL MC.,1H2

sub69250-33010

main69250-33010-B3iASV5#..PHL,VN201203-201903

SILVER ME.,1D4

sub69250-33010

main69250-33010-B4iASV50..PHL201203-201502

MEDIUM SILVER ME.,1F8

sub69250-33010

main69250-33010-C0iASV5#..PHL,VN;ASV51,AVV50..(G,V)..TAIW201112-201903

ATTITUDE BLACK MC.,218

sub69250-33010

main69250-33010-E1iASV5#..VN201203-201903

BEIGE ME.,4R0

sub69250-33010

main69250-33010-E6iASV50..PHL201502-201707

DK. BROWN M.M.,4U3

sub69250-33010

main69250-33010-E7iASV5#..PHL,VN201707-201903

PHANTOM BROWN ME.,4W9

sub69250-33010

main69250-33010-J1iASV50,AVV50..(E,G,V)..TAIW201112-201503

BLUE ME.,8N0

sub69250-33010

main69250-33010-J6iASV5#..PHL,VN201502-201811

GRAYISH BLUE M.M.,8V5

sub69250-33010

main69250-33020-A1iAVV50..IND,TH;ASV50..G..IDN;ACV51,ASV50..(E,G)..(IND,MA,TH)201203-201811

WHITE PEARL CS.,070

sub69250-33020

main69250-33020-B1iASV50..MA,TH;ASV50..G..IDN;ACV51,AVV50..IND,TH201203-201811

GRAY ME.,1G3

sub69250-33020

main69250-33020-B3iAVV50..IND,TH;ASV50..G..IDN;ACV51,ASV50..(E,G)..(IND,MA,TH)201203-201811

SILVER ME.,1D4

sub69250-33020

main69250-33020-B4iASV5#,AVV50..MA201203-201809

MEDIUM SILVER ME.,1F8

sub69250-33020

main69250-33020-C0iASV50..G..IDN;ASV5#,AVV50..IND,MA,TH201203-201811

ATTITUDE BLACK MC.,218

sub69250-33020

main69250-33020-E1iASV50..G..IDN;ACV51,AVV50..TH;ASV50..IND,MA,TH201203-201504

BEIGE ME.,4R0

sub69250-33020

main69250-33020-E6iASV50..G..IDN;ASV5#,AVV50..IND,TH201502-201707

DK. BROWN M.M.,4U3

sub69250-33020

main69250-33020-E7iASV50..G..IDN;ASV5#,AVV50..IND,TH201707-201811

PHANTOM BROWN ME.,4W9

sub69250-33020

main69250-33020-J0iAVV50..IND,TH201203-201811

TRUE BLUE M.M.,8W1

sub69250-33020

main69250-33020-J5iASV50..IND,TH;ASV50..G..IDN;ASV51,AVV50..TH201502-201811

GRAYISH BLUE M.M.,8V5

sub69250-33020

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-06220-A0iACV51,ASV50..N..TAIW201112-201503

SUPER WHITE 2,040

main69210-06220-B0iACV51,ASV50..N..TAIW201112-201503

SILVER ME.,1F7

main69210-06220-B1iACV51,ASV50..N..TAIW201112-201503

GRAY ME.,1G3

main69210-06220-B2iACV51,ASV50..N..TAIW201112-201503

DK. STEEL MC.,1H2

main69210-06220-C0iACV51,ASV50..N..TAIW201112-201503

ATTITUDE BLACK MC.,218

main69210-06220-J0iACV51,ASV50..N..TAIW201112-201503

BLUE ME.,8N0

main69210-33110-A1iAVV50..IND,TH;ASV50..G..IDN;ASV50..E..PHL;ACV51,ASV50..(E,G)..(IND,MA,TH)201203-201811

WHITE PEARL CS.,070

sub69210-33110

main69210-33110-B1iASV50..G..IDN;ASV5#,AVV50..IND,MA,TH201203-201811

GRAY ME.,1G3

sub69210-33110

main69210-33110-B3iASV50..G..IDN;ASV5#,AVV50..IND,MA,TH201203-201811

SILVER ME.,1D4

sub69210-33110

main69210-33110-B4iASV50..G..IDN;ASV50..E..PHL;ACV51,ASV50,AVV50..(E,G,V)..(MA,TH)201203-201809

MEDIUM SILVER ME.,1F8

sub69210-33110

main69210-33110-C0iASV50..G..IDN;ASV5#,AVV50..IND,MA,TH201203-201811

ATTITUDE BLACK MC.,218

sub69210-33110

main69210-33110-E1iASV50..G..IDN;ASV50..E..PHL;ACV51,AVV50..TH;ASV50..IND,MA,TH201203-201504

BEIGE ME.,4R0

sub69210-33110

main69210-33110-E5iASV50..G..IDN;ASV5#,AVV50..IND,TH201502-201707

DK. BROWN M.M.,4U3

sub69210-33110

main69210-33110-E6iASV50..G..IDN;ASV5#,AVV50..IND,TH201707-201811

PHANTOM BROWN ME.,4W9

sub69210-33110

main69210-33110-J0iAVV50..IND,TH201203-201811

TRUE BLUE M.M.,8W1

sub69210-33110

main69210-33110-J3iASV50..IND,TH;ASV50..G..IDN;ASV51,AVV50..TH201502-201811

GRAYISH BLUE M.M.,8V5

sub69210-33110

main69210-33120-A1iASV50..G..PHL201203-201903

WHITE PEARL CS.,070

sub69210-33120

main69210-33120-A2iASV50,AVV50..(E,G,V)..TAIW201112-201809

SUPER WHITE 2,040

sub69210-33120

main69210-33120-B0iASV50,AVV50..(E,G,V)..TAIW201112-201809

SILVER ME.,1F7

sub69210-33120

main69210-33120-B1iASV50..PHL;ASV51,AVV50..(G,V)..TAIW201112-201809

GRAY ME.,1G3

sub69210-33120

main69210-33120-B2iASV50,AVV50..(E,G,V)..TAIW201112-201809

DK. STEEL MC.,1H2

sub69210-33120

main69210-33120-B3iASV5#..PHL,VN201203-201903

SILVER ME.,1D4

sub69210-33120

main69210-33120-B4iASV50..G..PHL201203-201502

MEDIUM SILVER ME.,1F8

sub69210-33120

main69210-33120-C0iASV50..G..PHL;ASV50,AVV50..(E,G,V)..TAIW201112-201903

ATTITUDE BLACK MC.,218

sub69210-33120

main69210-33120-E2iASV50..G..PHL201203-201903

BEIGE ME.,4R0

sub69210-33120

main69210-33120-E6iASV50..PHL201502-201707

DK. BROWN M.M.,4U3

sub69210-33120

main69210-33120-E7iASV5#..PHL,VN201707-201903

PHANTOM BROWN ME.,4W9

sub69210-33120

main69210-33120-J3iASV50,AVV50..(E,G,V)..TAIW201112-201503

BLUE ME.,8N0

sub69210-33120

main69210-33120-J6iASV5#..PHL,VN201502-201811

GRAYISH BLUE M.M.,8V5

sub69210-33120

main69211-52901iASV50..E..IDN;ASV51..N..TAIW201203-202007

PAINT REQ.

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-33030iASV51,AVV50;ASV50..IDN,IND,MA,PHL,TH,VN201502-202007

main69241-52020iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-33040iASV51,AVV50;ASV50..IDN,IND,MA,PHL,TH,VN201502-202007

main69242-52030iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-06080-C0iACV51,ASV50,AVV50..TAIW201112-202007

BLACK,TRIM0#,2#

main69283-47010-C0iACV51..N..(MA,VN);ASV50..E..(IDN,PHL);ASV50,AVV50..(G,V)..(IND,TH)201203-201903

BLACK,TRIM0#,2#

main69283-47010-C0iASV50..G..(IDN,PHL);ACV51,ASV50..(E,G)..(MA,TH,VN)201203-201809

BLACK,TRIM0#

main69283-47010-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

main69283-47010-C0iASV50..G;ASV51..MA,VN;ASV50..E..PHL201502-201903

BLACK,TRIM0#,2#,4#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-06080-C0iACV51,ASV50,AVV50..TAIW201112-202007

BLACK,TRIM0#,2#

main69284-47010-C0iASV50..G..(IDN,PHL);ACV51,ASV50..(E,G)..(MA,TH,VN)201203-201809

BLACK,TRIM0#

main69284-47010-C0iACV51..N..(MA,VN);ASV50..E..(IDN,PHL);ASV50,AVV50..(G,V)..(IND,TH)201203-201903

BLACK,TRIM0#,2#

main69284-47010-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

main69284-47010-C0iAVV50..IND,TH;ASV5#..E..(TH,VN)201502-201903

BLACK,TRIM0#,2#,4#

69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-06131iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

main69311-06141iACV51,ASV50,AVV50..TAIW201112-202007

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-06131iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main69312-06141iACV51,ASV50,AVV50..TAIW201112-202007

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-02040iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-06130iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main69710-06140iACV51,ASV50,AVV50..TAIW201112-201503

main69710-06160iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

main69710-06170iASV51,AVV50..TAIW201503-202007

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-06130iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main69710-06140iACV51,ASV50,AVV50..TAIW201112-201503

main69710-06160iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

main69710-06170iASV51,AVV50..TAIW201503-202007

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-06120iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main69750-06130iACV51,ASV50,AVV50..TAIW201112-201503

main69750-06150iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

main69750-06160iASV51,AVV50..TAIW201503-202007

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-06120iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main69750-06130iACV51,ASV50,AVV50..TAIW201112-201503

main69750-06150iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

main69750-06160iASV51,AVV50..TAIW201503-202007

692370M010RETAINER, DOOR OUTSIDE HANDLE

main69237-0M010

6923730010RETAINER, DOOR OUTSIDE HANDLE

main69237-30010

6923930010PIN, BACK DOOR OUTSIDE HANDLE

main69239-30010

692960M010SCREW, DOOR INSIDE HANDLE

main69296-0M010

6929630010SCREW, DOOR INSIDE HANDLE

main69296-30010

9014850003

main90148-50003

9014860022

main90148-60022

9014880066

main90148-80066

90148T0015

main90148-T0015

90167T0027

main90167-T0027

9018905003

main90189-05003

90189T0005

main90189-T0005

9356755020

main93567-55020

38 parts on this diagram · 2 diagrams in section
