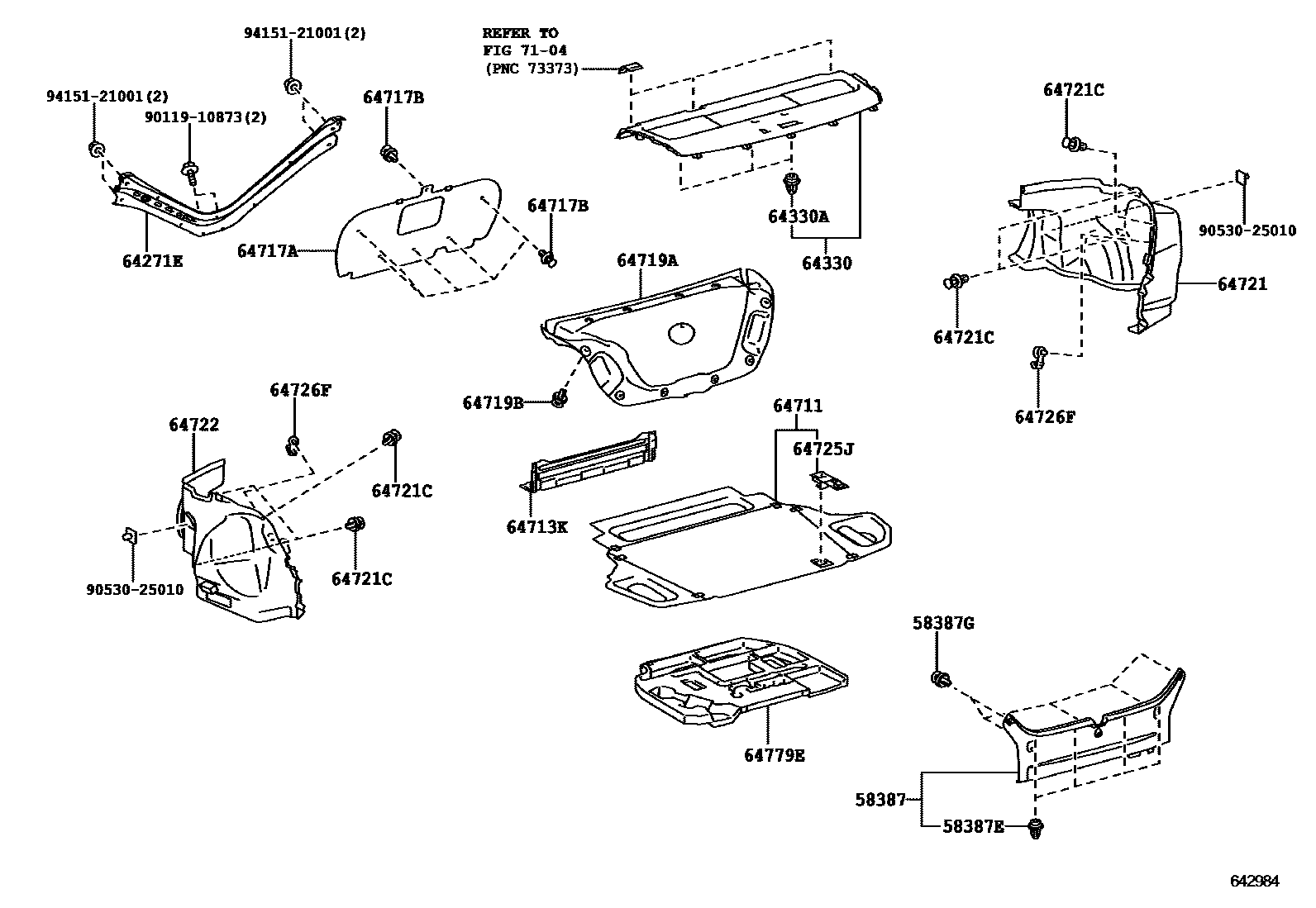

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1 0003 1W/O(REAR SUN SHADE) 0004 1W(REAR SUN SHADE) 0005 1

58387PLATE, REAR FLOOR FINISH

main58387-06171iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

main58387-06181iACV51,ASV50,AVV50..TAIW201112-202007

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-10161iACV51,ASV50,AVV50..TAIW¥90201112-202007

main90467-T0021iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

58387GCLIP(FOR REAR FLOOR FINISH PLATE)

main90467-07201iACV51,ASV50;AVV50..IND,TAIW,TH¥100201306-202007

TYPE A:REFER ILLUST.

main90467-07201iACV51,ASV50,AVV50..TAIW¥100201112-201306

main90467-08186-C0iACV51,ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201203-201306

BLACK

sub90467-08186¥120

main90467-08186-C0iACV51,ASV50;AVV50..IND,TAIW,TH201306-201610

BLACK,TYPE B:REFER ILLUST.

sub90467-08186¥120

main90467-08186-C3iASV5#,AVV50201610-202007

BLACK,TYPE B:REFER ILLUST.

sub90467-08186¥120

64271EPANEL, ROOM PARTITION

main64241-06030iACV51,ASV50..TAIW201112-202007

main64241-06040iACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-06720-A0iACV51..VN;ASV50..E..PHL;ASV50..IDN,IND201203-201504

SHELL,TRIM0#

main64330-06720-C0iASV50..G..IDN201302-201502

BLACK,TRIM2#

main64330-06730-A0iAVV50..IND;ASV50..G..PHL;ACV51,ASV50,AVV50..(E,G)..(TH,VN)201203-201504

SHELL,TRIM0#

main64330-06730-C0iASV50..G..PHL;ACV51,ASV50..E..(TH,VN)201207-201504

BLACK,TRIM2#

main64330-06740-A0iAVV50..V..TH201203-201502

SHELL,TRIM0#

main64330-06750-A0iACV51,ASV50,AVV50..(E,G,N)..TAIW201112-201503

SHELL,TRIM0#

main64330-06750-A1iASV51,AVV50..(G,N)..TAIW201503-201604

FLAXEN,TRIM0#

main64330-06750-C0iACV51,ASV50,AVV50..(E,G,N)..TAIW201112-201604

BLACK,TRIM2#

main64330-06751-A1iASV51,AVV50..(G,N)..TAIW201604-202007

FLAXEN,TRIM0#

main64330-06751-C0iASV51,AVV50..(G,N)..TAIW201604-202007

BLACK,TRIM2#

main64330-06760-A0iAVV50..V..TAIW201202-201503

SHELL,TRIM0#

main64330-06760-C0iAVV50..V..TAIW201202-201503

BLACK,TRIM2#

main64330-06770-A1iAVV50..V..TAIW201503-201604

FLAXEN,TRIM0#

main64330-06770-C0iAVV50..V..TAIW201503-201604

BLACK,TRIM2#

main64330-06771-A1iAVV50..V..TAIW201604-201809

FLAXEN,TRIM0#

main64330-06771-C0iAVV50..V..TAIW201604-201809

BLACK,TRIM2#

main64330-06800-A0iAVV50..G..TH201502-201811

FLAXEN,TRIM0#

main64330-06800-C0iAVV50..IND201502-201811

BLACK,TRIM4#

main64330-06800-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

main64330-06800-C0iAVV50..G..TH201608-201809

AUDIO-AVN PREMIUM 12SP,BLACK,TRIM2#

main64330-06820-A0iASV50,AVV50..IND201502-201903

FLAXEN,TRIM0#

sub64330-06800

main64330-06820-C0iASV50..VN;ASV51..TH201502-201903

BLACK,TRIM2#,4#

sub64330-06800

main64330-06830-A0iASV51..TH201502-201809

BRUNEI SPEC,FLAXEN,TRIM0#

main64330-06830-A0iASV50..IDN;ASV50..E..PHL201502-201809

FLAXEN,TRIM0#

main64330-06830-A0iASV50..IDN;ASV50..E..PHL201502-201809

SINGAPORE SPEC,FLAXEN,TRIM0#

main64330-06830-C0iASV51..TH201502-201809

BRUNEI SPEC,BLACK,TRIM2#,4#

main64330-06830-C0iASV51..TH201502-201809

BLACK,TRIM2#

main64330-06830-C0iASV50..E..PHL201502-201809

SINGAPORE SPEC,BLACK,TRIM2#,4#

main64330-06A20-A0iASV50..MA201205-201305

SHELL,TRIM0#

main64330-06A21-C0iASV50..MA201305-201503

BLACK,TRIM2#

main64330-06A22-C0iASV51..E..MA201609-201809

MY DECONTENT PKG,BLACK,TRIM2#

main64330-06A22-C0iASV50..MA201503-201809

BLACK,TRIM2#

main64330-06A30-A0iACV51..N..MA201205-201305

SHELL,TRIM0#

main64330-06A30-C0iACV51..E..MA201205-201305

BLACK,TRIM2#

main64330-06A31-A0iACV51..N..MA201305-201503

SHELL,TRIM0#

main64330-06A31-C0iACV51..E..MA201305-201503

BLACK,TRIM2#

main64330-06A32-C0iASV51..E..MA201503-201809

BLACK,TRIM2#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161iASV51,AVV50..TAIW¥90201112-202007

main90467-T0021iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-06300-C0iASV50..G..(IDN,PHL);ACV51,ASV50..(E,G)..(MA,TH,VN)201203-201903

BLACK,TRIM0#,2#

main64711-06300-C0iASV50..G;ASV51..MA,VN;ASV50..E..PHL201502-201903

BLACK,TRIM0#,2#,4#

main64711-06300-C0iASV50..G..(IDN,PHL);ACV51,ASV50..(E,G)..(MA,TH,VN)201203-201809

BLACK,TRIM0#

main64711-06310-C0iAVV50..IND,TH201203-201504

BLACK,TRIM0#

main64711-06310-C0iAVV50..IND,TH201502-201811

BLACK,TRIM0#,2#,4#

main64711-06310-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

main64711-06320-C0iASV51..TAIW201112-202007

BLACK,TRIM0#,2#

main64711-06330-C0iAVV50..TAIW201202-201809

BLACK,TRIM0#,2#

64713KCOVER, LUGGAGE COMPARTMENT TRIM, FRONT UPPER

main64713-06050-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

main64713-06050-C0iACV51..E..MA201205-201503

BLACK,TRIM2#

main64713-06050-C0iACV51..TH;ASV50..MA,VN201203-201903

BLACK,TRIM0#,2#

main64713-06050-C0iACV51..TH;ASV50..MA,VN201203-201809

BLACK,TRIM0#

main64713-06050-C0iASV50..G;ASV51..MA,VN;ASV50..E..PHL201502-201903

BLACK,TRIM0#,2#,4#

main64713-06060-C0iACV51,ASV50,AVV50..TAIW201112-202007

BLACK,TRIM0#,2#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-06220-C0iASV50..E..IDN201203-201809

BLACK,TRIM0#

main64717-06220-C0iASV5#..E..(TH,VN)201502-201903

BLACK,TRIM0#,2#,4#

main64717-06220-C0iASV50..G..(IDN,PHL);ACV51,ASV50..(E,G)..(MA,TH,VN)201203-201903

BLACK,TRIM0#,2#

main64717-06230-C0iACV51,ASV50..TAIW201112-202007

BLACK,TRIM0#,2#

main64717-06240-C0iAVV50..TAIW201202-201809

BLACK,TRIM0#,2#

main64717-06260-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

main64717-06260-C0iAVV50..IND,TH201203-201504

BLACK,TRIM0#

main64717-06260-C0iAVV50..IND,TH201502-201811

BLACK,TRIM0#,2#,4#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-07201iAVV50..IND,TAIW,TH¥100201306-202007

TYPE A:REFER ILLUST.

main90467-07201iAVV50..TAIW¥100201112-201306

main90467-08186-C0iACV51,ASV50201306-201610

BLACK,TYPE B:REFER ILLUST.

sub90467-08186¥120

main90467-08186-C0iAVV50..TH201203-201306

BLACK

sub90467-08186¥120

main90467-08186-C3iAVV50201610-202007

BLACK,TYPE B:REFER ILLUST.

sub90467-08186¥120

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-06210-C0iACV51..N..(MA,VN);ASV50..E..(IDN,PHL);ASV50,AVV50..(G,V)..(IND,TH)201203-201504

BLACK,TRIM0#

main64719-06210-C0iASV50..G..(IDN,PHL);ACV51,ASV50..(E,G)..(MA,TH,VN)201203-201504

BLACK,TRIM0#,2#

main64719-06211-C0iASV50..E..PHL201502-201809

BLACK,TRIM0#,2#

main64719-06211-C0iASV5#,AVV50..(E,G)..(TH,VN)201502-201903

BLACK,TRIM0#

main64719-06211-C0iASV5#,AVV50..(E,G)..(TH,VN)201502-201903

BLACK,TRIM0#,2#,4#

main64719-06211-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

main64719-06211-C0iAVV50..MA201503-201809

BLACK,TRIM2#

main64719-06211-C0iAVV50..RHD..V201502-201811

BLACK,TRIM0#,4#

main64719-06220-C0iACV51,ASV50,AVV50..TAIW201112-201503

BLACK,TRIM0#,2#

main64719-06221-C0iASV51,AVV50..TAIW201503-202007

BLACK,TRIM0#,2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07201iACV51,ASV50;AVV50..IND,TAIW,TH¥100201306-202007

TYPE A:REFER ILLUST.

main90467-07201iACV51,ASV50,AVV50..TAIW¥100201112-201306

main90467-08186-C0iASV51,AVV50;ASV50..IDN,IND,MA,PHL,TH,VN201306-201610

BLACK,TYPE B:REFER ILLUST.

sub90467-08186¥120

main90467-08186-C0iACV51,ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201203-201306

BLACK

sub90467-08186¥120

main90467-08186-C3iASV5#,AVV50201610-202007

BLACK,TYPE B:REFER ILLUST.

sub90467-08186¥120

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-06261-C0iACV51..TH;ASV50..MA,VN201203-201903

BLACK,TRIM0#,2#

main64721-06261-C0iACV51..TH;ASV50..MA,VN201203-201809

BLACK,TRIM0#

main64721-06261-C0iASV50..G;ASV51..MA,VN;ASV50..E..PHL201502-201903

BLACK,TRIM0#,2#,4#

main64721-06261-C0iACV51..E..MA201205-201503

BLACK,TRIM2#

main64721-06271-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

main64721-06271-C0iAVV50..IND,TH201203-201504

BLACK,TRIM0#

main64721-06271-C0iAVV50..IND,TH201502-201811

BLACK,TRIM0#,2#,4#

main64721-06281-C0iASV51..TAIW201112-202007

BLACK,TRIM0#,2#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-07201iACV51,ASV50;AVV50..IND,TAIW,TH¥100201306-202007

TYPE A:REFER ILLUST.

main90467-07201iACV51,ASV50,AVV50..TAIW¥100201112-201306

main90467-08186-C0iACV51,ASV50;AVV50..IND,TAIW,TH201306-201610

BLACK,TYPE B:REFER ILLUST.

sub90467-08186¥120

main90467-08186-C0iACV51,ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201203-201306

BLACK

sub90467-08186¥120

main90467-08186-C3iASV5#,AVV50201610-202007

BLACK,TYPE B:REFER ILLUST.

sub90467-08186¥120

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-06271-C0iACV51..N..(MA,VN);ASV50..IDN,IND,PHL,TH201203-201809

BLACK,TRIM0#

main64722-06271-C0iACV51..N..(MA,VN);ASV50..IDN,IND,PHL,TH201203-201903

BLACK,TRIM0#,2#

main64722-06271-C0iASV50..G;ASV51..MA,VN;ASV50..E..PHL201502-201903

BLACK,TRIM0#,2#,4#

main64722-06271-C0iACV51..E..MA201205-201503

BLACK,TRIM2#

main64722-06281-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

main64722-06281-C0iAVV50..IND,TH201203-201504

BLACK,TRIM0#

main64722-06281-C0iAVV50..IND,TH201502-201811

BLACK,TRIM0#,2#,4#

main64722-06291-C0iACV51,ASV50..TAIW201112-202007

BLACK,TRIM0#,2#

main64722-06301-C0iAVV50..TAIW201202-201809

BLACK,TRIM0#,2#

64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-06060iASV51,AVV50..TAIW201112-202007

main64725-06070iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2

main64725-33090-C0iASV50..E..IDN201203-201702

BLACK,TRIM0#

main64725-33090-C0iACV51..E..MA201205-201702

BLACK,TRIM2#

main64725-33090-C0iACV51..TAIW,TH;ASV50..MA,TAIW,TH,VN;ASV50,AVV50..(G,V)..(IDN,PHL,TAIW)201112-201702

BLACK,TRIM0#,2#

main64725-33090-C2iAVV50..MA201702-201809

BLACK,TRIM2#,4#

main64725-33090-C2iAVV50..MA201702-201809

BLACK,TRIM2#

main64725-33090-C2iAVV50..RHD..V201702-201811

BLACK,TRIM0#,4#

main64725-33090-C2iASV50..IDN,IND;ASV5#..(G,N)..(PHL,VN)201702-201903

BLACK,TRIM0#

main64725-33090-C2iASV50..IDN,IND;ASV5#..(G,N)..(PHL,VN)201702-201903

BLACK,TRIM0#,2#,4#

main64725-33090-C2iASV50..E..PHL;ASV51,AVV50..TAIW201702-202007

BLACK,TRIM0#,2#

64779ETRAY, SPARE WHEEL COVER

main64779-06071iACV51,ASV50,AVV50..TAIW201112-202007

main64779-06101iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

7104

9011910873

main90119-10873¥120

9053025010

main90530-25010¥100

9415121001

main94151-21001¥100

22 parts on this diagram · 5 diagrams in section
