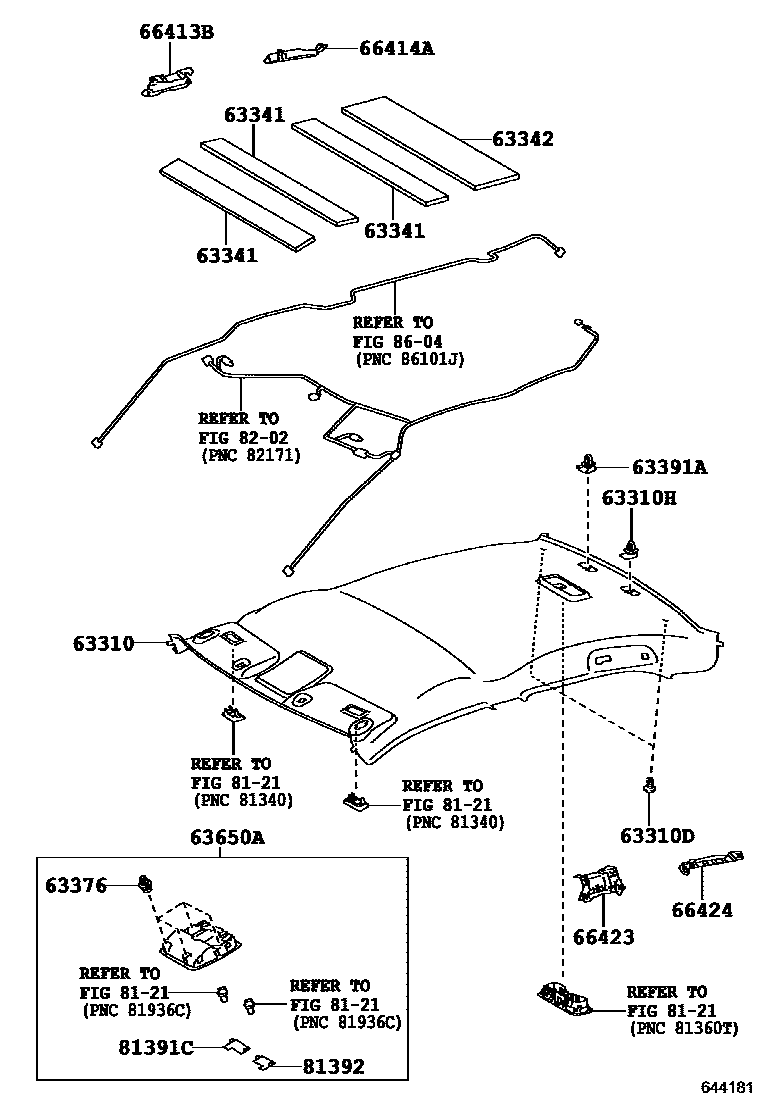

ROOF HEADLINING & SILENCER PAD

0001 1W(CURTAIN SHIELD AIR BAG) 0002 1W(CURTAIN SHIELD AIR BAG) 0003 1 0004 1 0005 1W(MOON ROOF) 0006 1 0007 1W(MOON ROOF&CURTAIN SHIELD AI

63310HEADLINING ASSY, ROOF

main63310-06790-A0iACV51,ASV50,AVV50..(G,N)..TAIW201112-201503

SHELL,TRIM0#

main63310-06790-B0iACV51,ASV50,AVV50..(G,N)..TAIW201112-201503

GRAY,TRIM2#

main63310-06810-A0iAVV50..V..TAIW201202-201503

SHELL,TRIM0#

main63310-06810-B0iAVV50..V..TAIW201202-201503

GRAY,TRIM2#

main63310-06860-A0iASV50..E..TAIW201112-201503

SHELL,TRIM0#

main63310-06860-B0iASV50..E..TAIW201112-201503

GRAY,TRIM2#

main63310-06890-A0iASV51,AVV50..G..TAIW201705-201809

FLAXEN,TRIM0#

main63310-06890-B0iASV51,AVV50..G..TAIW201705-201809

GRAY,TRIM2#

main63310-06B10-A0iASV51,AVV50..G..TAIW201503-201705

FLAXEN,TRIM0#

main63310-06B10-B0iASV51,AVV50..G..TAIW201503-201705

GRAY,TRIM2#

main63310-06B20-A0iAVV50..V..TAIW201503-201809

FLAXEN,TRIM0#

main63310-06B20-B0iAVV50..V..TAIW201503-201809

GRAY,TRIM2#

main63310-06B50-A0iASV51..N..TAIW201503-202007

FLAXEN,TRIM0#

main63310-06B50-B0iASV51..N..TAIW201503-202007

GRAY,TRIM2#

main63311-06070-A0iACV51..VN201207-201504

SHELL,TRIM0#

main63311-06070-A1iASV51..VN201504-201611

FLAXEN,TRIM0#

main63311-06080-A0iASV50..PHL,VN201203-201504

SHELL,TRIM0#

main63311-06080-A1iASV50..VN201502-201611

FLAXEN,TRIM0#

main63311-06080-B0iASV50..VN201207-201611

GRAY,TRIM2#

main63311-06110-A0iACV51,ASV50..MA201203-201504

SHELL,TRIM0#

main63311-06110-B0iACV51,ASV50..(E,G)..MA201205-201502

GRAY,TRIM2#

main63311-06170-A0iASV50,AVV50..(G,V)..(IND,TH)201502-201607

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),FLAXEN,TRIM0#

sub63311-06171

main63311-06170-A0iASV50,AVV50..(G,V)..(IND,TH)201502-201607

VSC-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),FLAXEN,TRIM0#

sub63311-06171

main63311-06170-A0iASV50..G..(IDN,PHL)201502-201607

FLAXEN,TRIM0#

sub63311-06171

main63311-06170-B0iASV50..MA201502-201607

GRAY,TRIM2#

sub63311-06171

main63311-06170-B0iAVV50..MA201502-201607

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),GRAY,TRIM2#

sub63311-06171

main63311-06170-B0iASV50,AVV50..(G,V)..(IND,TH)201502-201607

VSC-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),GRAY,TRIM2#

sub63311-06171

main63311-06171-A0iASV5#,AVV50..IDN,IND,PHL,TH201608-201903

FLAXEN,TRIM0#

main63311-06171-B0iASV50..VN201608-201903

GRAY,TRIM2#,4#

main63311-06171-B0iASV50..E..PHL201608-201809

GRAY,TRIM2#

main63311-06171-B0iAVV50..RHD..V201608-201811

GRAY,TRIM4#

main63311-06190-A0iACV51..N..MA201407-201503

SHELL,TRIM0#

main63311-06190-B0iACV51,ASV50..(E,G)..MA201407-201609

GRAY,TRIM2#

main63311-06210-A0iASV5#..IDN,TH201502-201608

FLAXEN,TRIM0#

main63311-06210-B0iASV5#..TH201502-201608

GRAY,TRIM2#

main63311-06230-A0iACV51..N..MA201401-201407

SHELL,TRIM0#

sub63311-06190

main63311-06230-B0iACV51,ASV50..(E,G)..MA201401-201407

GRAY,TRIM2#

sub63311-06190

main63311-06390-B0iAVV50..MA201504-201809

GRAY,TRIM2#,4#

main63311-06390-B0iASV5#..MA201609-201809

GRAY,TRIM2#

main63311-06390-B0iASV5#..MA201609-201809

MY DECONTENT PKG,GRAY,TRIM2#

63310DCLIP, ROOF HEADLINING

main90467-05164-A4iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

sub90467-05164

main90467-05164-A8iASV51,AVV50..TAIW201503-202007

FLAXEN,TRIM0#

sub90467-05164

main90467-05164-B6iACV51,ASV50,AVV50..TAIW201112-202007

GRAY,TRIM2#

sub90467-05164

main90467-T0004-A1iACV51,ASV50..(E,G)..MA201203-201504

SHELL,TRIM0#

main90467-T0004-A4iASV5#,AVV50..IDN,IND,PHL,TH,VN201502-201903

FLAXEN,TRIM0#

main90467-T0004-B1iASV50..RHD..G;ASV5#..(E,N)..(MA,PHL)201205-201811

GRAY,TRIM2#

main90467-T0004-B1iAVV50..RHD201502-201903

GRAY,TRIM2#,4#

63310HCLIP(FOR ROOF HEADLINING)

main90467-09126iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

63341PAD, ROOF SILENCER, NO.1

main63341-06150iACV51,ASV50,AVV50..(G,N)..TAIW201112-202007

main63341-06160iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

63342PAD, ROOF SILENCER, NO.2

main63342-06150iASV51,AVV50..(G,N)..TAIW201112-202007

main63342-06160iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

63376CLIP, HEADLINING

main90467-10167iACV51;AVV50..IND,TH;ASV50,AVV50..(G,N)..TAIW;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

main90467-10167iAVV50..G..TAIW201503-201809

S PACKAGE

main90467-10167iAVV50..G..TAIW201503-201809

2.0G SPECIAL PACKAGE

63391ACLIP(FOR ROOF HEADLINING TRIM)

main90467-10181iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

63650ABOX ASSY, ROOF CONSOLE

main63650-06570-A0iACV51..TAIW,TH,VN;ASV50..E..(IDN,PHL,VN);ASV50,AVV50..LHD..(G,N)201112-201504

SHELL,TRIM0#,*299

sub63650-06690

main63650-06570-B0iASV50..VN;ACV51..TAIW,TH;ASV50,AVV50..LHD..(G,N)201112-201504

GRAY,TRIM2#,*299

sub63650-06690

main63650-06580-A0iASV50..G..IDN;ASV50,AVV50..IND,TH201203-201504

SHELL,TRIM0#,*299

sub63650-06700

main63650-06600-A0iASV50..E..TAIW201112-201503

SHELL,TRIM0#,*299

sub63650-06720

main63650-06600-B0iASV50..E..TAIW201112-201503

GRAY,TRIM2#,*299

sub63650-06720

main63650-06610-A0iAVV50..V..TAIW201202-201204

SHELL,TRIM0#,*300

sub63650-06730

main63650-06610-A0iAVV50..V..TAIW201202-201503

SHELL,TRIM0#,*299

sub63650-06730

main63650-06610-B0iAVV50..V..TAIW201202-201204

GRAY,TRIM2#,*300

sub63650-06730

main63650-06610-B0iAVV50..V..TAIW201202-201503

GRAY,TRIM2#,*299

sub63650-06730

main63650-06620-A0iACV51..MA201205-201503

SHELL,TRIM0#,*299

sub63650-06740

main63650-06620-B0iACV51..E..MA201205-201503

GRAY,TRIM2#,*299

sub63650-06740

main63650-06630iASV50..MA201205-201503

*299

sub63650-06750

main63650-06630-A0iASV50..MA201205-201305

SHELL,TRIM0#,*299

sub63650-06750

main63650-06630-B0iASV50..MA201305-201503

GRAY,TRIM2#,*299

sub63650-06750

main63650-06690-A0iAVV50..G..TH201502-202007

FLAXEN,TRIM0#

main63650-06690-B0iASV50..TH201502-201809

GRAY,TRIM2#,4#

main63650-06690-B0iAVV50..G..TH201502-202007

GRAY,TRIM2#

main63650-06690-B0iASV51..TH201502-201809

SINGAPORE SPEC,GRAY,TRIM2#,4#

main63650-06690-B0iASV51..TH201502-201809

BRUNEI SPEC,GRAY,TRIM2#,4#

main63650-06700-A0iAVV50..G..TH201502-201811

FLAXEN,TRIM0#

main63650-06700-B0iASV50..G..(IDN,IND)201502-201811

GRAY,TRIM2#,4#

main63650-06700-B0iASV50..G..(IDN,IND)201502-201811

GRAY,TRIM2#

main63650-06730-A0iAVV50..V..TAIW201503-201809

FLAXEN,TRIM0#

main63650-06730-B0iAVV50..V..TAIW201503-201809

GRAY,TRIM2#

main63650-06740-B0iASV51..MA201503-201809

GRAY,TRIM2#

main63650-06750-B0iAVV50..MA201503-201809

GRAY,TRIM2#,4#

main63650-06750-B0iASV50..MA201503-201809

GRAY,TRIM2#

main63650-33580-A0iACV51;ASV50..E..(IDN,PHL);ASV50,AVV50..LHD..(G,N)201112-201204

SHELL,TRIM0#,*300

sub63650-06570

main63650-33580-B0iACV51;ASV50,AVV50..(G,N)..TAIW201112-201204

GRAY,TRIM2#,*300

sub63650-06570

main63650-33590-A0iASV50..G..IDN;ASV50,AVV50..TH201203-201204

SHELL,TRIM0#,*300

sub63650-06580

main63650-33610-A0iASV50..E..TAIW201112-201204

SHELL,TRIM0#,*300

sub63650-06600

main63650-33610-B0iASV50..E..TAIW201112-201204

GRAY,TRIM2#,*300

sub63650-06600

66413BSPACER, SIDE RAIL, FRONT RH

main66413-06130iACV51,ASV50,AVV50..TAIW201112-202007

main66413-06140iASV5#..VN201203-201611

main66415-06140iASV51,AVV50..(G,V)..TAIW201705-201809

main66415-06160iASV50..IND;AVV50..RHD201502-201903

66414ASPACER, SIDE RAIL, REAR RH

main62495-06040iASV51,AVV50..(G,V)..TAIW201705-201809

main62495-06050iASV50..IND;AVV50..RHD201502-201903

main66414-06060iASV51,AVV50..(G,V)..TAIW201112-202007

main66414-06070iASV5#..VN201203-201611

66423SPACER, SIDE RAIL, FRONT LH

main66423-06070iACV51,ASV50,AVV50..TAIW201112-202007

main66423-06130iASV5#..MA201203-201611

main66425-06120iASV51,AVV50..(G,V)..TAIW201705-201809

main66425-06130iASV5#..IDN,PHL,TH201502-201903

66424SPACER, SIDE RAIL, REAR LH

main62496-06040iASV51,AVV50..(G,V)..TAIW201705-201809

main62496-06050iASV5#..VN201502-201903

main66424-06060iASV51..N..TAIW201112-202007

main66424-06070iASV5#..VN201203-201611

81391CHOLDER, LENS, FRONT RH

main81391-06020iASV51;AVV50..G..TAIW;ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201502-202007

main81391-06020iACV51;AVV50..IND,TH;ASV50,AVV50..(G,N)..TAIW;ASV50..IDN,IND,MA,PHL,TH,VN201112-201504

*299

main81391-06030iAVV50..V..TAIW201503-201809

S PACKAGE

main81391-06030iASV50,AVV50..(E,V)..TAIW201112-201503

*299

main81391-06030iAVV50..V..TAIW201503-201809

2.0G SPECIAL PACKAGE

main81391-33010iACV51;AVV50..IND,TH;ASV50,AVV50..(G,N)..TAIW;ASV50..IDN,IND,MA,PHL,TH,VN201112-201504

*300

main81391-33020iASV50,AVV50..(E,V)..TAIW201112-201503

*300

81392HOLDER, LENS, FRONT LH

main81392-06010iASV51;AVV50..G..TAIW;ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201502-202007

main81392-06010iACV51;AVV50..IND,TH;ASV50,AVV50..(G,N)..TAIW;ASV50..IDN,IND,MA,PHL,TH,VN201112-201504

*299

main81392-06020iASV51..G201503-201809

2.0G SPECIAL PACKAGE

main81392-06020iAVV50..G..TAIW201503-201809

S PACKAGE

main81392-06020iASV50,AVV50..(E,V)..TAIW201112-201503

*299

main81392-33010iACV51;AVV50..IND,TH;ASV50,AVV50..(G,N)..TAIW;ASV50..IDN,IND,MA,PHL,TH,VN201112-201504

*300

main81392-33020iASV50,AVV50..(E,V)..TAIW201112-201503

*300

14 parts on this diagram · 7 diagrams in section
