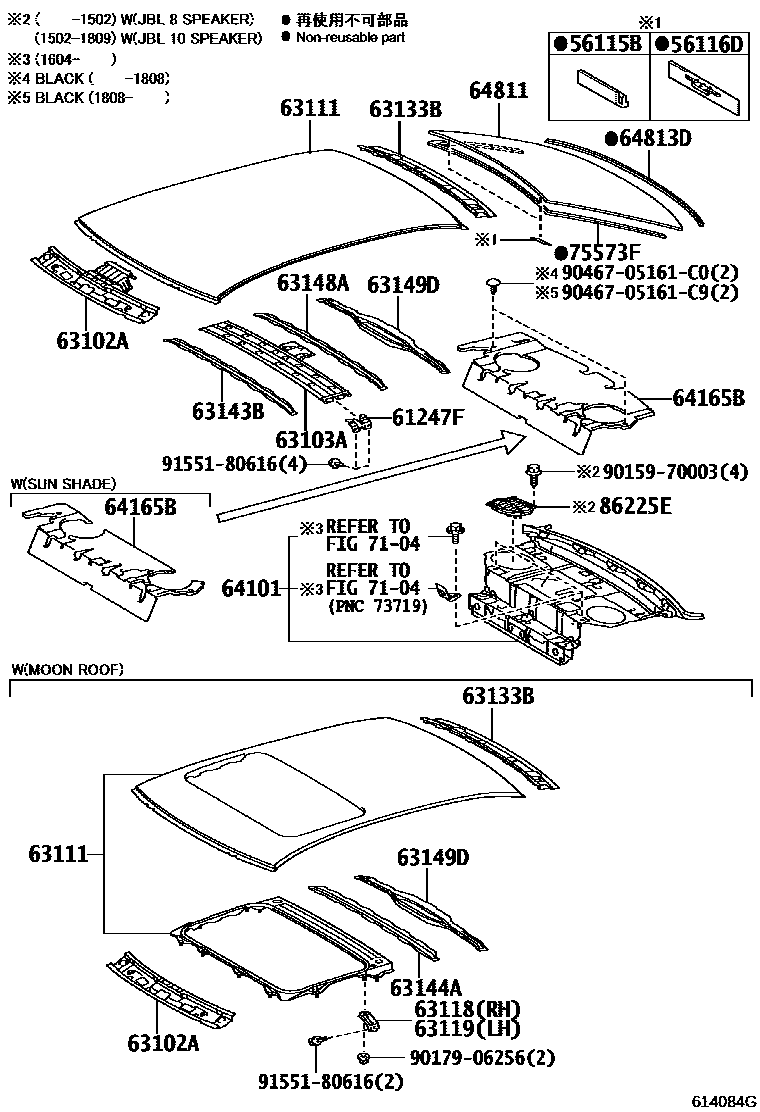

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1ROOF PANEL 0003 1ROOF PANEL 0004 1ROOF PANEL 0005 1SLIDING ROOF

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-06100iASV51,AVV50..(G,N)..TAIW201112-202007

main61247-06110iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-06910iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main63102-06913iASV51,AVV50..(G,N)..TAIW201112-202007

main63102-06914iASV51..G201503-201809

S PACKAGE

main63102-06914iAVV50..G..TAIW201503-201809

2.0G SPECIAL PACKAGE

main63102-06914iASV50,AVV50..(E,V)..TAIW201112-201503

main63102-06914iAVV50..G..TAIW201309-201503

MOON ROOF-WITH MOONROOF(TILT & SLIDE)

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-06110iACV51,ASV50,AVV50..(G,N)..TAIW201112-202007

main63103-06120iACV51,ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201203-201410

sub63103-06121

main63103-06121iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201411-201903

63111PANEL, ROOF

main63111-06500iASV51,AVV50..(G,N)..TAIW201112-202007

main63111-06520iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

main63111-06916iAVV50..V..TAIW201503-201809

S PACKAGE

main63111-06916iASV51..G201503-201809

2.0G SPECIAL PACKAGE

main63111-06916iAVV50..G..TAIW201309-201503

MOON ROOF-WITH MOONROOF(TILT & SLIDE)

main63111-06916iASV50,AVV50..(E,V)..TAIW201112-201503

63118SUPPORT, ROOF PANEL, RH

main63118-06100iAVV50..G..TAIW201503-201809

S PACKAGE

main63118-06100iASV50,AVV50..(E,V)..TAIW201112-201503

main63118-06100iAVV50..G..TAIW201309-201503

MOON ROOF-WITH MOONROOF(TILT & SLIDE)

main63118-06100iAVV50..V..TAIW201503-201809

2.0G SPECIAL PACKAGE

63119SUPPORT, ROOF PANEL, LH

main63118-06100iAVV50..G..TAIW201309-201503

MOON ROOF-WITH MOONROOF(TILT & SLIDE)

main63118-06100iAVV50..V..TAIW201503-201809

2.0G SPECIAL PACKAGE

main63118-06100iAVV50..V..TAIW201503-201809

S PACKAGE

main63118-06100iASV50,AVV50..(E,V)..TAIW201112-201503

63133BFRAME, BACK WINDOW

main63133-06130iACV51,ASV50,AVV50..TAIW201112-202007

main63133-06140iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-06100iASV51,AVV50..(G,N)..TAIW201112-202007

main63143-06110iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-06210iAVV50..G..TAIW201503-201809

S PACKAGE

main63144-06210iASV50,AVV50..(E,V)..TAIW201112-201503

main63144-06210iAVV50..G..TAIW201309-201503

MOON ROOF-WITH MOONROOF(TILT & SLIDE)

main63144-06210iAVV50..V..TAIW201503-201809

2.0G SPECIAL PACKAGE

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-06110iACV51,ASV50,AVV50..(G,N)..TAIW201112-202007

main63148-06120iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-06060iASV51,AVV50..TAIW201112-202007

main63149-06070iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

64101PANEL SUB-ASSY, UPPER BACK

main64101-06320iACV51,ASV50,AVV50..TAIW201112-201604

main64101-06321iASV51,AVV50..TAIW201604-202007

main64101-06330iACV51,ASV50..MA201203-201504

main64101-06340iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201305-201903

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-06260iACV51,ASV50..TH201203-201302

SUN SHADE-WITHOUT

sub64165-06261

main64165-06260iACV51..MA,VN;ASV50..E..PHL;ASV50..IDN,IND201203-201304

sub64165-06261

main64165-06260iACV51..TH201302-201304

SINGAPORE SPEC OR BRUNEI SPEC

sub64165-06261

main64165-06261iASV50..IDN;ASV51..N..MA;ASV50..E..PHL201402-201809

BRUNEI SPEC

main64165-06261iACV51..TH201305-201402

SINGAPORE SPEC OR BRUNEI SPEC

main64165-06261iACV51..TH201402-201809

SINGAPORE SPEC

main64165-06261iACV51..MA,VN;ASV50..E..PHL;ASV50..IDN,IND201305-201609

main64165-06270iASV51,AVV50..(G,N)..TAIW201112-201603

sub64165-06271

main64165-06271iASV51,AVV50..(G,N)..TAIW201604-202007

main64165-06300iASV50..G..PHL;ASV50..MA,TH,VN;ACV51,AVV50..TH201203-201304

sub64165-06301

main64165-06301iASV51..TH,VN;ASV50..G..PHL;ASV50,AVV50..IND,MA,TH,VN201305-201903

main64165-06301iACV51..E..MA201402-201503

2.0G X PACKAGE

main64165-06310iAVV50..V..TAIW201202-201603

sub64165-06311

main64165-06311iAVV50..V..TAIW201604-201809

64811GLASS, BACK WINDOW

main64801-06905iASV5#,AVV50..MA201503-201809

main64801-06905iACV51,ASV50..MA201205-201503

*EHHSEAT,T=3.5,GREEN

main64801-06906iASV5#,AVV50..PHL,TH201502-201702

sub64801-06909

main64801-06906iACV51,ASV50,AVV50..PHL,TH201203-201502

*EHT,T=3.5,GREEN

sub64801-06909

main64801-06907iAVV50..V..TH201502-201702

INDONESIA SPEC

sub64801-06910

main64801-06907iACV51,ASV50,AVV50..IDN,IND,VN201203-201504

*EHHSEAT,T=3.5,GREEN

sub64801-06910

main64801-06907iAVV50..V..TH201203-201502

*EHHSEAT,T=3.5,GREEN,INDONESIA SPEC

sub64801-06910

main64801-06909iASV5#,AVV50..PHL,TH201702-201809

sub64801-06910

main64801-06910iAVV50..V..TH201702-201809

INDONESIA SPEC

main64801-06910iASV5#,AVV50..IDN,IND,VN201702-201903

main64811-06340iASV51,AVV50..TAIW201503-202007

main64811-06340iACV51,ASV50,AVV50..TAIW201112-201503

*EHT,T=3.5,GREEN

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140iASV51,AVV50..TAIW201112-202007

main64813-06090iAVV50..IND;ACV51,ASV50..IND,MA,VN201205-201903

7104

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-06100iACV51,ASV50,AVV50..TAIW201112-202007

main75573-06110iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

86225ECOVER, SPEAKER, RH

main86225-33010iASV51..TH201502-201608

SPECIAL PACKAGE

main86225-33010iASV51..TH201502-201608

AUDIO-AVN PREMIUM SYSTEM,10SPEAKER

main86225-33010iASV50..TH;AVV50..MA;AVV50..V..(TAIW,TH)201502-201809

SINGAPORE & BRUNEI SPEC

main86225-33010iASV50..TH;AVV50..MA;AVV50..V..(TAIW,TH)201502-201809

AUDIO-CD 6SPEAKER

main86225-33010iASV50..TH;AVV50..MA;AVV50..V..(TAIW,TH)201502-201809

AUDIO-RADIO LESS

main86225-33010iAVV50..MA201503-201809

MY DECONTENT PKG

main86225-33010iAVV50..G..TH201608-201809

AUDIO-AVN PREMIUM 12SP

main86225-33010iASV50,AVV50..IND201203-201811

main86225-33010iAVV50..V..TAIW201202-201309

Q PACKAGE

main86225-33010iAVV50..V..TAIW201309-201503

AUDIO-AVN PREMIUM SYSTEM,8SPEAKER

main86225-33010iAVV50..G..TH201502-201608

SINGAPORE SPEC

9015970003

main90159-70003

9017906256

main90179-06256

9046705161C0

main90467-05161C0

9046705161C9

main90467-05161C9

9155180616

main91551-80616

25 parts on this diagram · 5 diagrams in section
