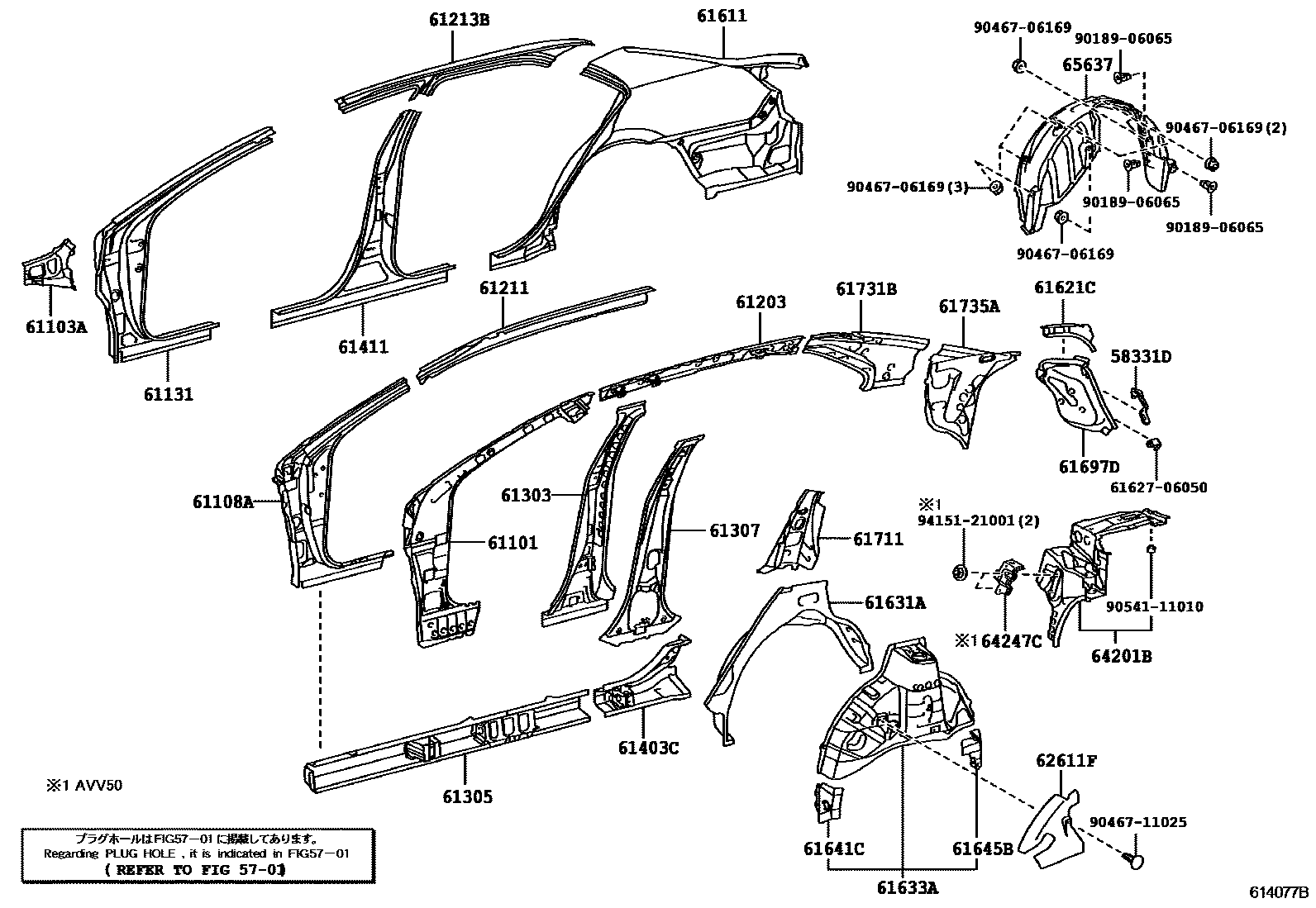

SIDE MEMBER

0001 1RH 0002 1LH 0003 1RH 0006 1RH 0009 1LH 0012 1LH

5701

58331DBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1

main58331-06090iACV51,ASV50,AVV50..TAIW201112-202007

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-06180iASV51,AVV50..TAIW201112-202007

main61101-06190iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH

main61103-06050iACV51,ASV50,AVV50..TAIW201112-202007

main61103-06060iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-06130iASV51,AVV50..TAIW201112-202007

main61108-06140iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-06130iACV51,ASV50,AVV50..TAIW201112-202007

main61131-06140iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-06160iACV51,ASV50,AVV50..TAIW201112-202007

main61203-06170iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

61211RAIL, ROOF SIDE, OUTER RH

main61201-06100iACV51,ASV50,AVV50..TAIW201112-202007

main61201-06110iACV51,ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201203-201410

sub61201-06111

main61201-06111iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201411-201903

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-06110iACV51,ASV50,AVV50..TAIW201112-202007

main61213-06120iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-06110iACV51,ASV50,AVV50..TAIW201112-202007

main61303-06120iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-06120iACV51,ASV50,AVV50..TAIW201112-202007

main61305-06130iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-06120iACV51,ASV50,AVV50..TAIW201112-202007

main61307-06130iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-06060iACV51,ASV50,AVV50..TAIW201112-202007

main61403-06070iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

61411PANEL, ROCKER, OUTER RH

main61411-06170iASV51,AVV50..TAIW201112-202007

main61411-06180iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

61611PANEL, QUARTER, RH

main61601-06200iACV51,ASV50,AVV50..TAIW201112-202007

main61601-06210iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-06110iACV51,ASV50,AVV50..TAIW201112-202007

main61621-06910iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-06140iASV51,AVV50..TAIW201112-202007

main61631-06150iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-06907iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main61633-06909iACV51,ASV50,AVV50..TAIW201112-202007

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-06110iASV51,AVV50..TAIW201112-202007

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-06110iACV51,ASV50,AVV50..TAIW201112-202007

main61645-06120iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

61697DHOUSING, QUARTER PANEL END, RH

main61697-06140iACV51,ASV50,AVV50..TAIW201112-202007

61711PANEL, ROOF SIDE, OUTER RH

main61711-06130iACV51,ASV50,AVV50..TAIW201112-202007

main61711-06140iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

61731BPANEL, ROOF SIDE, INNER RH

main61731-06160iASV51,AVV50..TAIW201112-202007

main61731-06170iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-06130iASV51,AVV50..TAIW201112-202007

main61735-06140iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

62611FINSULATOR, QUARTER WHEEL HOUSE, RH

main62611-06120iACV51,ASV50,AVV50..TAIW201112-202007

main62611-06130iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

64201BSTRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH

main64201-06150iASV51,AVV50..TAIW201112-202007

main64201-06160iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

64247CBRACKET, ROOM PARTITION, RH

main64247-06040iAVV50..TAIW201202-201809

main64247-06050iAVV50..IND,TH201203-201811

65637LINER, REAR WHEEL HOUSE, RH

main65637-06090iACV51,ASV50,AVV50..TAIW201112-201503

main65637-06100iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main65637-06190iASV51,AVV50..TAIW201503-202007

main65637-06200iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

6162706050RETAINER, QUARTER TRIM, LOWER

main61627-06050

9018906065

main90189-06065

9046706169

main90467-06169

9046711025

main90467-11025

9054111010

main90541-11010

9415121001

main94151-21001

34 parts on this diagram · 6 diagrams in section
