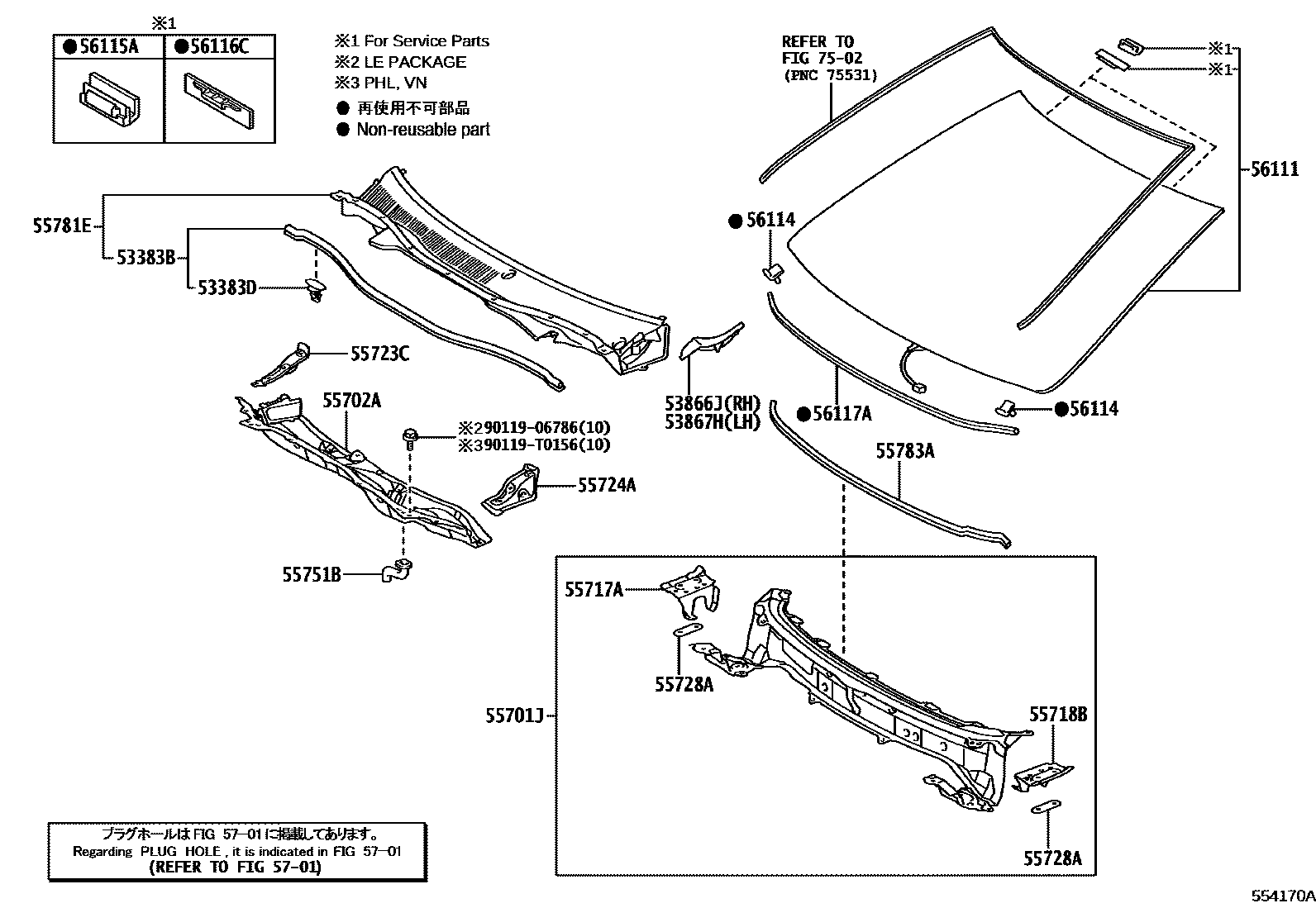

COWL PANEL & WINDSHIELD GLASS

0001 1 0003 1 0004 1 0005 1

53383BSEAL, HOOD TO COWL TOP

main53383-06150iACV51,ASV50,AVV50..LHD201112-202007

main53383-06160iAVV50..IND,TH;ACV51,ASV50..RHD201203-201811

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-48030iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-06090iACV51,ASV50,AVV50..TAIW201112-202007

main53866-06100iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-06090iACV51,ASV50,AVV50..TAIW201112-202007

main53867-06100iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-06230iACV51,ASV50,AVV50..TAIW201112-202007

main55701-06240iAVV50..IND,TH;ACV51,ASV50..RHD201203-201504

sub55701-06280

main55701-06250iASV5#..PHL,VN201203-201903

main55701-06280iASV5#,AVV50..RHD201502-201811

55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT

main55702-06180iACV51,ASV50..LHD201112-201205

sub55702-06181

main55702-06181iACV51,ASV50..LHD201206-201501

sub55702-06182

main55702-06182iACV51,ASV50..TAIW,VN201502-202007

main55702-06190iAVV50..TAIW201202-201205

sub55702-06191

main55702-06191iAVV50..TAIW201206-201501

sub55702-06192

main55702-06192iAVV50..TAIW201502-201809

main55702-06200iACV51,ASV50..RHD201203-201501

sub55702-06201

main55702-06201iACV51,ASV50..IND,MA201502-201811

main55702-06210iAVV50..RHD201203-201501

sub55702-06211

main55702-06211iAVV50..IND201502-201811

55717APANEL, COWL TOP SIDE, INNER RH

main55717-06150iACV51,ASV50,AVV50..TAIW201112-202007

main55717-06160iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-06150iASV51,AVV50..TAIW201112-202007

main55718-06160iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-06150iACV51,ASV50,AVV50..TAIW201112-202007

main55723-06160iAVV50..IND,TH;ACV51,ASV50..RHD201203-201811

main55723-06170iACV51,ASV50..PHL,VN201203-201903

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-06160iASV51,AVV50..TAIW201112-202007

main55724-06170iASV5#,AVV50..RHD201203-201811

main55724-06180iACV51,ASV50..PHL,VN201203-201903

55728AREINFORCEMENT, HOOD STOPPER

main55728-06120iASV51,AVV50..TAIW201112-202007

main55728-06130iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

55751BHOSE, COWL WATER EXTRACT, NO.1

main55751-06140iASV51..TAIW201112-202007

main55751-06160iASV5#,AVV50..RHD201203-201811

main55751-06170iAVV50..TAIW201202-201809

main55751-33040iACV51,ASV50..PHL,VN201203-201903

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-06180iACV51,ASV50,AVV50..LHD201112-202007

main55708-06190iASV5#,AVV50..RHD201203-201811

55783APAD, COWL TOP SILENCER

main55783-06120iASV51,AVV50..TAIW201112-202007

main55783-06130iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

56111GLASS, WINDSHIELD

main56101-06943iACV51,ASV50..MA201205-201503

*HSEAL,T=4.76,GREEN

main56101-06944iACV51,ASV50..PHL,TH201203-201502

*LAM,T=4.76,GREEN

sub56101-06974

main56101-06944iASV5#..TH;ASV50..G..PHL201502-201708

sub56101-06974

main56101-06945iASV5#..TH201608-201708

sub56101-06975

main56101-06946iASV5#..(E,N)..(IDN,VN)201502-201708

sub56101-06976

main56101-06946iACV51,ASV50..(E,N)..(IDN,VN)201203-201504

*HSEAL,T=4.76,GREEN

sub56101-06976

main56101-06947iASV50..G..(IDN,IND)201502-201708

sub56101-06977

main56101-06947iASV50..G..(IDN,IND)201203-201504

*HSEAL,T=4.76,GREEN

sub56101-06977

main56101-06948iAVV50..V..TH201502-201708

INDONESIA SPEC

sub56101-06978

main56101-06948iAVV50..IND,TH201203-201504

*HSEAL,T=4.56,GREEN

sub56101-06978

main56101-06949iACV51,ASV50..TAIW201112-201503

*LAM,T=4.76,GREEN

main56101-06949iASV51..TAIW201503-202007

main56101-06958iAVV50..TAIW201309-201503

*HSEAL,T=4.56,GREEN

main56101-06958iAVV50..G..TAIW201503-201809

main56101-06960iAVV50..V..TAIW201503-201809

main56101-06962iAVV50..V..TH201502-201708

sub56101-06979

main56101-06963iASV5#..MA201503-201809

main56101-06964iAVV50..MA201503-201809

main56101-06970iASV50..G..PHL201608-201708

sub56101-06980

main56101-06974iASV50..E..PHL201708-201809

sub56101-06976

main56101-06975iASV5#..TH201708-201809

sub56101-06978

main56101-06976iASV5#..(E,N)..(IDN,VN)201708-201903

main56101-06977iASV50..G..(IDN,IND)201708-201811

sub56101-06978

main56101-06978iAVV50..IND;AVV50..G..TH201708-201811

main56101-06979iAVV50..V..TH201708-201809

main56101-06980iASV50..G..PHL201708-201809

main56101-33915iAVV50..TAIW201202-201309

*HSEAL,T=4.56,GREEN

56114RETAINER, WINDSHIELD GLASS

main56114-33050iASV51,AVV50;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iASV51,AVV50;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

56117ADAM, WINDOW GLASS ADHESIVE

main56117-06150iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

*L=1358

main56117-50140iACV51,ASV50,AVV50..TAIW201112-202007

*D,L=1358

5701

7502

9011906786

main90119-06786

90119T0156

main90119-T0156

23 parts on this diagram · 4 diagrams in section
