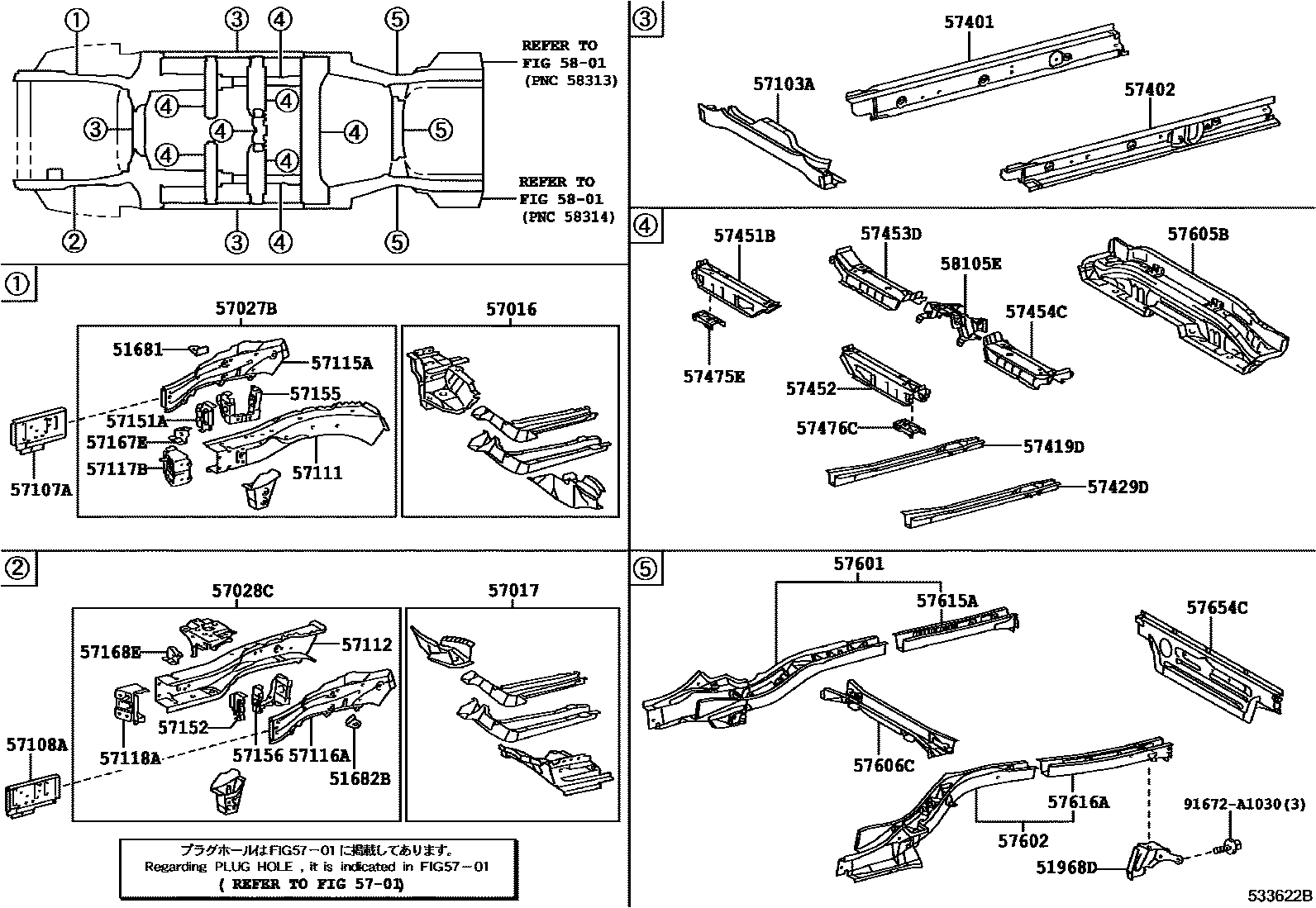

FLOOR SIDE MEMBER

0001 1 0002 1

51681BRACKET, FLEXIBLE HOSE

main51681-06050iASV51,AVV50..TAIW201112-202007

51682BBRACKET, FLEXIBLE HOSE, LH

main51682-06050iACV51,ASV50,AVV50..TAIW201112-202007

51968DHOOK, TRANSPORT, REAR LH

main51968-06030iACV51,ASV50,AVV50..TAIW201112-202007

main51968-06040iAVV50..IND,TH;ACV51,ASV50..IND,MA,PHL,TH,VN201203-201903

sub51968-33020¥2,710

main51968-06050iAVV50..V..TH201203-201809

INDONESIA SPEC

sub51968-33030¥4,650

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-06100iASV51,AVV50..TAIW201112-202007

main57016-06120iAVV50..IND,TH;ACV51,ASV50..RHD201203-201811

main57016-06130iASV5#..PHL,VN201203-201903

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-06090iACV51,ASV50,AVV50..TAIW201112-202007

main57017-06110iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-06061iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main57027-06903iACV51,ASV50,AVV50..TAIW201112-202007

57028CMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-06141iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

main57028-06903iASV51,AVV50..TAIW201112-202007

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-06041iACV51,ASV50,AVV50..TAIW201112-202007

main57103-06100iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-06051iACV51,ASV50,AVV50..TAIW201112-202007

main57107-06061iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-06051iACV51,ASV50,AVV50..TAIW201112-202007

main57108-06061iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

57111MEMBER, FRONT SIDE, RH

main57111-33021iACV51,ASV50,AVV50..TAIW¥19,100201112-202007

57112MEMBER, FRONT SIDE, LH

main57112-33031iACV51,ASV50,AVV50..TAIW¥19,100201112-202007

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-33030iASV51,AVV50..TAIW¥10,800201112-202007

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-33020iACV51,ASV50,AVV50..TAIW¥10,800201112-202007

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-06070iASV51,AVV50..TAIW201112-202007

main57117-33050iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN¥3,270201203-201903

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-06070iACV51,ASV50,AVV50..TAIW201112-202007

main57118-33050iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN¥3,270201203-201903

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-33020iACV51,ASV50,AVV50..TAIW¥1,150201112-202007

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-33030iACV51,ASV50,AVV50..TAIW¥1,140201112-202007

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-33030iACV51,ASV50,AVV50..TAIW¥1,940201112-202007

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-33030iASV51,AVV50..TAIW¥2,110201112-202007

57167EGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-33020iACV51,ASV50;AVV50..IND,TAIW,TH¥370201112-202007

57168EGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-33020iASV51,AVV50;ASV50..IDN,IND,MA,PHL,TH,VN¥370201112-202007

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-06241iASV51,AVV50..TAIW201112-202007

main57401-06251iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-06231iACV51,ASV50,AVV50..TAIW201112-202007

main57402-06241iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

57419DREINFORCEMENT, FRONT FLOOR UNDER, REAR RH

main57419-06060iACV51,ASV50,AVV50..TAIW201112-202007

main57419-06070iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

57429DREINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57429-06030iACV51,ASV50,AVV50..TAIW201112-202007

main57429-06040iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

57451BMEMBER, FRONT FLOOR CROSS, RH

main57451-06090iACV51,ASV50,AVV50..TAIW201112-202007

main57451-06100iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-06061iACV51,ASV50,AVV50..TAIW201112-202007

main57452-06071iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

57453DMEMBER, FRONT FLOOR CROSS SIDE, RH

main57453-06090iACV51,ASV50,AVV50..TAIW201112-202007

main57453-06100iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

57454CMEMBER, FRONT FLOOR CROSS SIDE, LH

main57454-06090iACV51,ASV50,AVV50..TAIW201112-202007

main57454-06100iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

57475EPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-06050iACV51,ASV50,AVV50..TAIW201112-202007

main57475-33010iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN¥1,710201203-201903

57476CPLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-06040iACV51,ASV50,AVV50..TAIW201112-202007

main57476-33010iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN¥1,710201203-201903

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-06352iACV51,ASV50..TAIW201112-202007

main57601-06361iACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main57601-06372iAVV50..TAIW201202-201809

main57601-06381iAVV50..IND,TH201203-201811

main57601-06410iAVV50..MA201503-201809

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-06160iACV51,ASV50,AVV50..TAIW201112-202007

main57602-06170iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-06181iACV51,ASV50,AVV50..TAIW201112-202007

main57605-06190iACV51,ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201203-201407

sub57605-06191

main57605-06191iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201408-201903

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-06130iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main57606-06160iASV51,AVV50..TAIW201112-202007

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-06928iASV51..TAIW201112-202007

main57615-06929iAVV50..TAIW201202-201305

sub57615-06930

main57615-06930iAVV50..TAIW201305-201809

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-06920iACV51,ASV50,AVV50..TAIW201112-202007

57654CMEMBER, REAR FLOOR CROSS, NO.3

main57654-06030iACV51,ASV50,AVV50..TAIW201112-202007

main57654-06040iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

5801

58105EPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-06020iACV51,ASV50,AVV50..TAIW201112-202007

main58105-06030iACV51,ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201203-201401

main58105-06031iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201402-201903

91672A1030

main91672-A1030¥120

43 parts on this diagram · 2 diagrams in section
