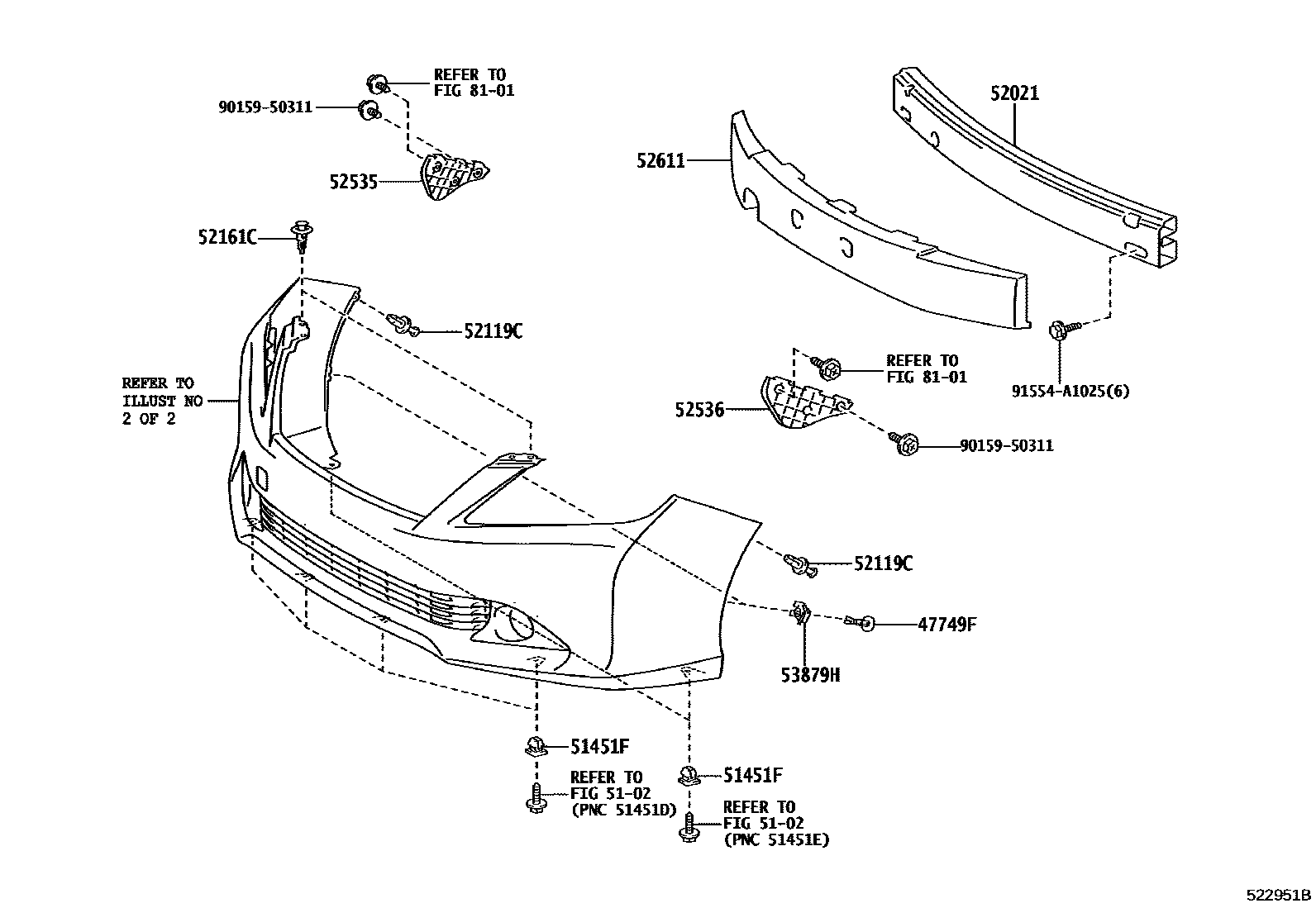

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0006 1 0009 1 0011 1 0013 1 0016 1 0019 1 0022 1 0025 1 0026 1 0027 1 0028 1 0029 1 0030 1

47749FCLIP, PIN HOLD

main47749-50090iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

5102

51451FGROMMET, NO.1

main90189-06193iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-06090iACV51,ASV50,AVV50..TAIW201112-201304

sub52021-06091

main52021-06091iACV51,ASV50,AVV50..TAIW201305-202007

main52021-06100iACV51,ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201203-201304

sub52021-06101

main52021-06101iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201305-201903

52119CCLIP, FRONT BUMPER COVER

main90467-05063-C0iAVV50201502-201810

BLACK

sub90467-05063

main90467-05063-C4iASV5#,AVV50..(E,N,V)..(IND,VN)201810-201903

BLACK

sub90467-05063

main90467-05090-B1iASV51,AVV50;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

DK.GRAY

sub90467-05090

52161CPIECE, FRONT BUMPER

main52161-0K040iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

main52161-0K040iACV51..TH,VN;ASV50..IDN,PHL,VN201211-201504

(L)

main52161-0K060iASV51,AVV50..TAIW201503-202007

main52161-16010iAVV50..TAIW;ACV51,ASV50..IND,MA,TAIW201112-201504

sub52161-0K040

main52161-16010iACV51..TH,VN;ASV50..IDN,PHL,VN201211-201504

(J)

sub52161-0K040

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-06160iACV51,ASV50,AVV50..TAIW201112-202007

main52535-06170iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-06150iACV51,ASV50,AVV50..TAIW201112-202007

main52536-06160iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

52611ABSORBER, FRONT BUMPER ENERGY

main52611-06310iACV51,ASV50,AVV50..TAIW201112-201503

main52611-06320iACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main52611-06340iAVV50..IND,TH201203-201504

main52611-06410iASV51,AVV50..TAIW201503-202007

main52611-06420iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

53879HRETAINER, FRONT FENDER LINER

main53879-30040iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

main53879-30050iASV51,AVV50;ASV50..IDN,IND,MA,PHL,TH,VN201502-202007

8101

9015950311

main90159-50311

91554A1025

main91554-A1025

13 parts on this diagram · 16 diagrams in section
