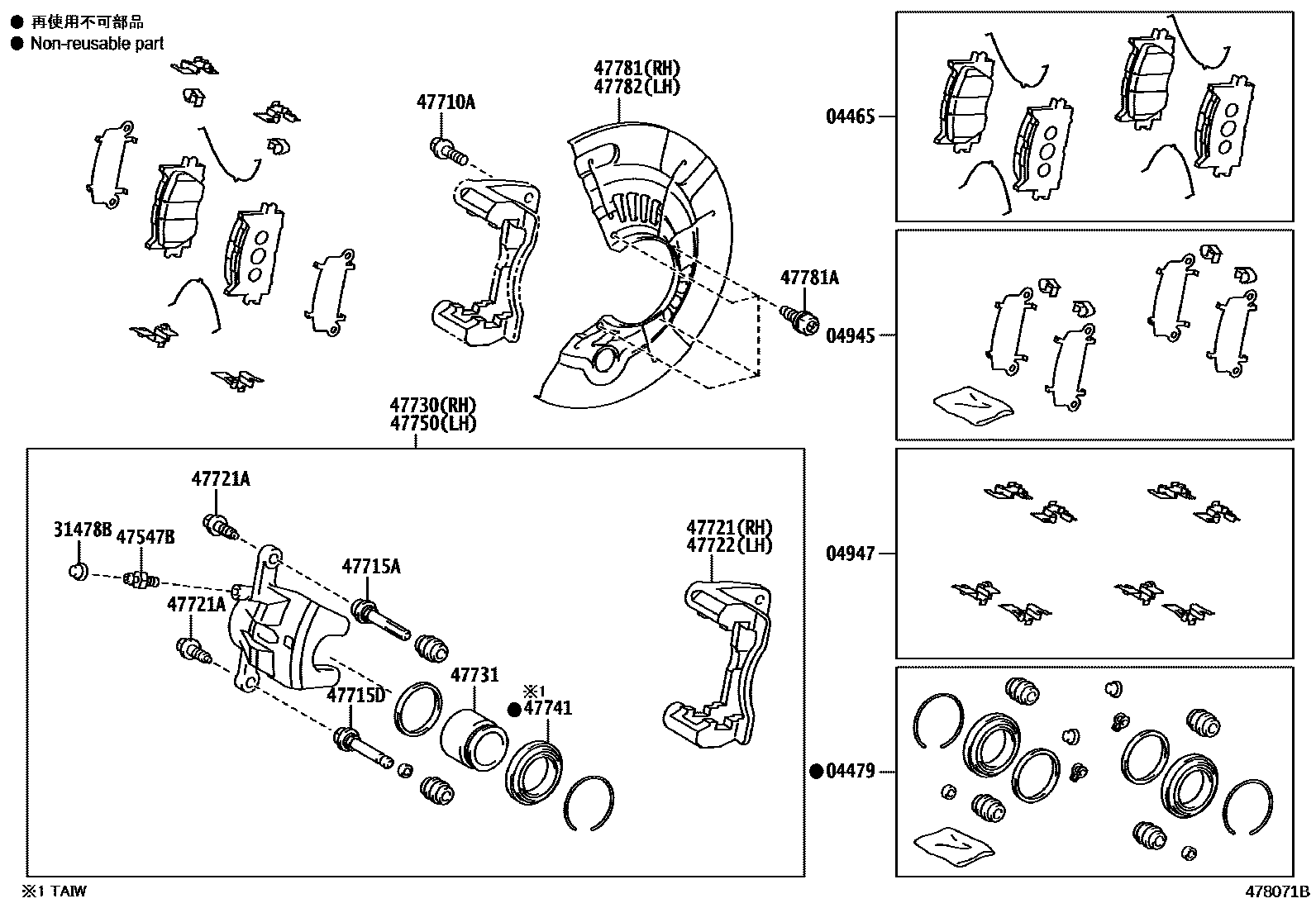

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0004 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-06131iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

MARK NBK D6911H

main04465-06140iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

MARK NBK D6911H

main04465-33471iACV51,ASV50,AVV50..TAIW201112-202007

MARK NBK D6911H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-06260iASV51,AVV50..TAIW201112-202007

main04478-06270iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

sub04478-06271

main04478-06300iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

sub04478-06301

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-06110iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main04945-06160iACV51,ASV50,AVV50..TAIW201112-202007

main04945-06170iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

04947FITTING KIT, DISC BRAKE, FRONT

main04947-06070iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

main04947-33240iACV51,ASV50,AVV50..TAIW201112-202007

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D040iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

main31478-30010iASV51,AVV50..TAIW201112-202007

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-0D030iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main47547-20010iASV51,AVV50..TAIW201112-202007

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iASV50..E..PHL201502-201809

*12-1.25PX29.5-23,2.0G S PACKAGE

main90105-12208iASV51..TH201502-201809

*12-1.25PX29.5-23,2.5G S PACKEGE

main90105-12208iASV50..VN201504-201903

*12-1.25PX29.5-23,2.5Q PACKAGE

main90105-12208iASV51,AVV50;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-06300iACV51,ASV50,AVV50..TAIW201112-202007

main47714-33361iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-06250iACV51,ASV50,AVV50..TAIW201112-202007

main47715-33340iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-06281iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main47721-06300iASV51,AVV50..TAIW201112-202007

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA603iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

*8-1.00PX23-15

main90105-08164iASV51,AVV50..TAIW201112-202007

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-06281iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main47722-06300iACV51,ASV50,AVV50..TAIW201112-202007

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-06281iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main47730-06300iACV51,ASV50,AVV50..TAIW201112-202007

47731PISTON, FRONT DISC BRAKE

main47731-06260iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main47731-33340iASV51,AVV50..TAIW201112-202007

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-06060iASV51,AVV50..TAIW201112-202007

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-06281iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main47750-06300iACV51,ASV50,AVV50..TAIW201112-202007

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-06160iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

sub47781-33050

main47781-06170iASV51,AVV50..TAIW201112-202007

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iACV51,ASV50,AVV50..TAIW201112-202007

main90119-T0005iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-06160iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

sub47782-33050

main47782-06170iASV51,AVV50..TAIW201112-202007

19 parts on this diagram · 3 diagrams in section
