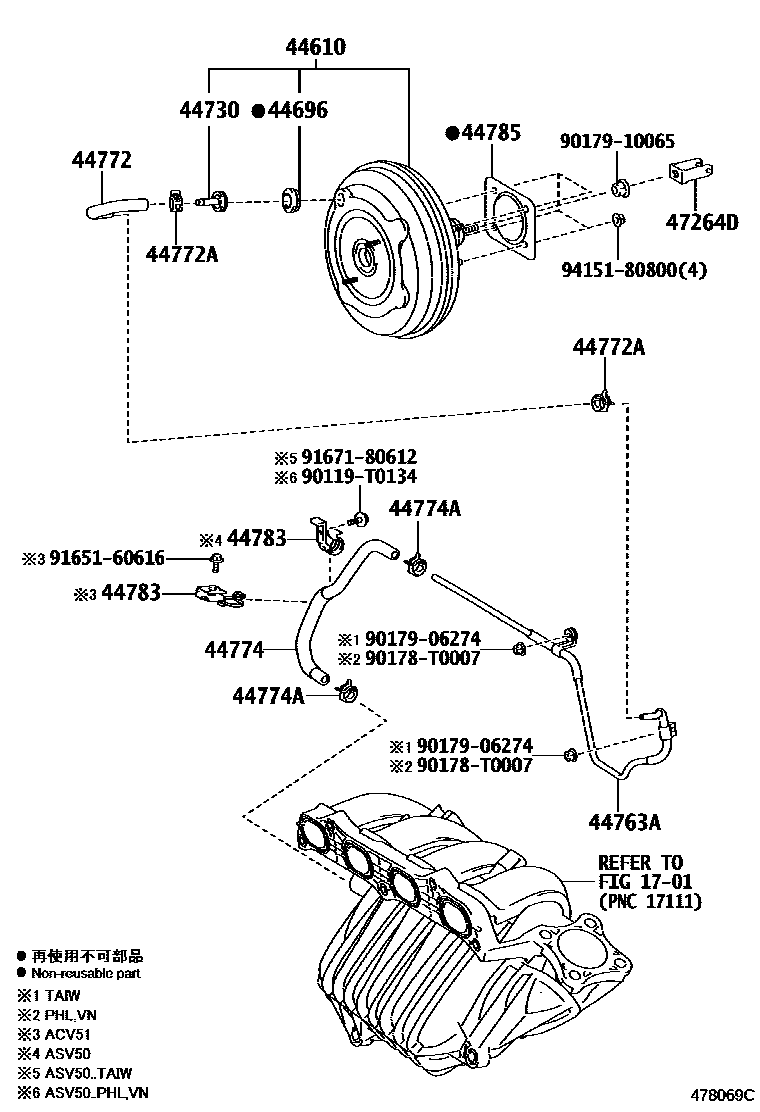

BRAKE BOOSTER & VACUUM TUBE
1701
44610BOOSTER ASSY, BRAKE
2.0G S PACKAGE
44696GROMMET, CHECK VALVE
NO.1
NO.2 & BLUE
NO.2
LE PACKAGE,NO.2
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44763ATUBE, HOSE TO HOSE, NO.1
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
44774HOSE, UNION TO CONNECTOR TUBE
44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)
44785GASKET, BRAKE BOOSTER
(L)
(J)
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
90119T0134
90178T0007
9017906274
9017910065
9165160616
9167180612
9415180800
19 parts on this diagram · 6 diagrams in section
