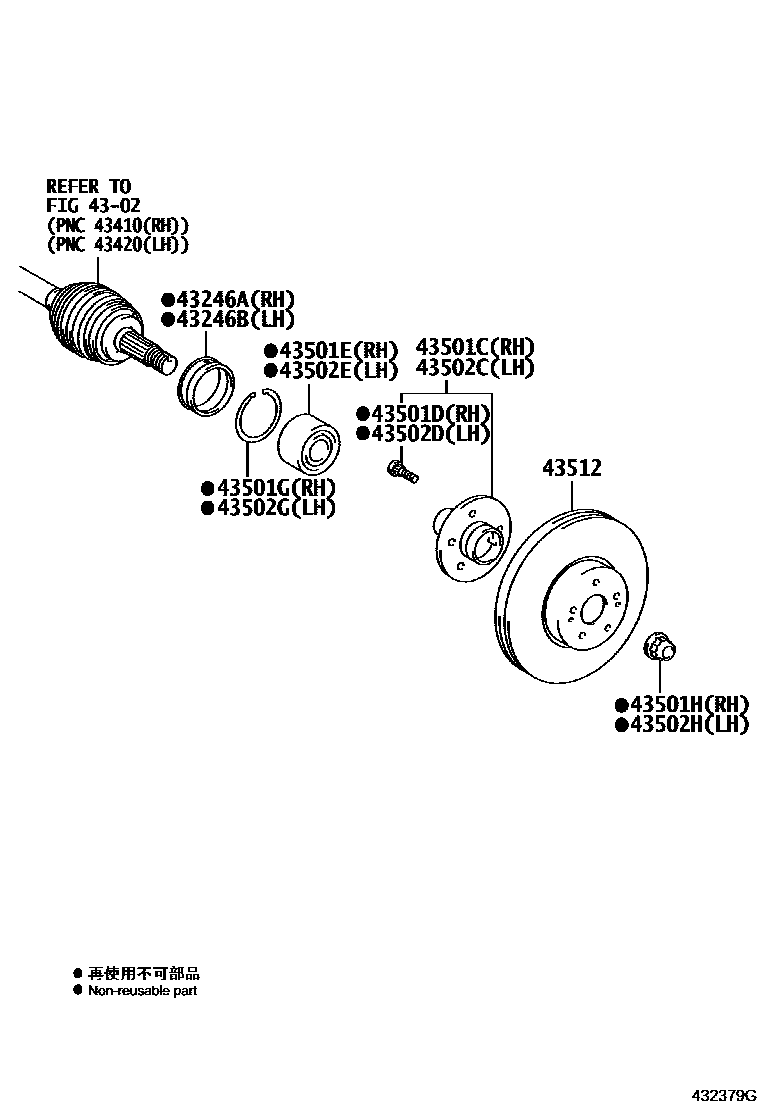

FRONT AXLE HUB

4302

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-73010iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-73010iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-06070iACV51,ASV50..TAIW201112-202007

main43502-06080iAVV50..TAIW201202-201809

main43502-06120iACV51,ASV50..IDN,IND,MA,PHL,TH201203-201811

main43502-06130iAVV50..RHD201203-201811

main43502-28090iASV5#..VN201207-201903

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iASV5#,AVV50..IND,TAIW201112-202007

main90942-02081iAVV50..TH;ACV51,ASV50..IDN,MA,PHL,TH,VN201203-201903

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-45005iASV51,AVV50..TAIW201503-202007

(J)

main90369-45005iACV51,ASV50,AVV50..TAIW201112-201503

main90369-T0007iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main90369-T0007iASV51,AVV50..TAIW201503-202007

(L)

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-77001iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iASV51,AVV50;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-06070iASV51..TAIW201112-202007

main43502-06080iAVV50..TAIW201202-201809

main43502-06120iACV51,ASV50..IDN,IND,MA,PHL,TH201203-201811

main43502-06130iAVV50..RHD201203-201811

main43502-28090iACV51,ASV50..VN201207-201903

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iASV5#,AVV50..IND,TAIW201112-202007

main90942-02081iAVV50..TH;ACV51,ASV50..IDN,MA,PHL,TH,VN201203-201903

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-45005iACV51,ASV50,AVV50..TAIW201112-202007

main90369-T0007iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-77001iASV51,AVV50;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

43512DISC, FRONT

main43512-06111iACV51,ASV50,AVV50..TAIW201112-202007

main43512-06121iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

14 parts on this diagram · 1 diagram in section
