TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

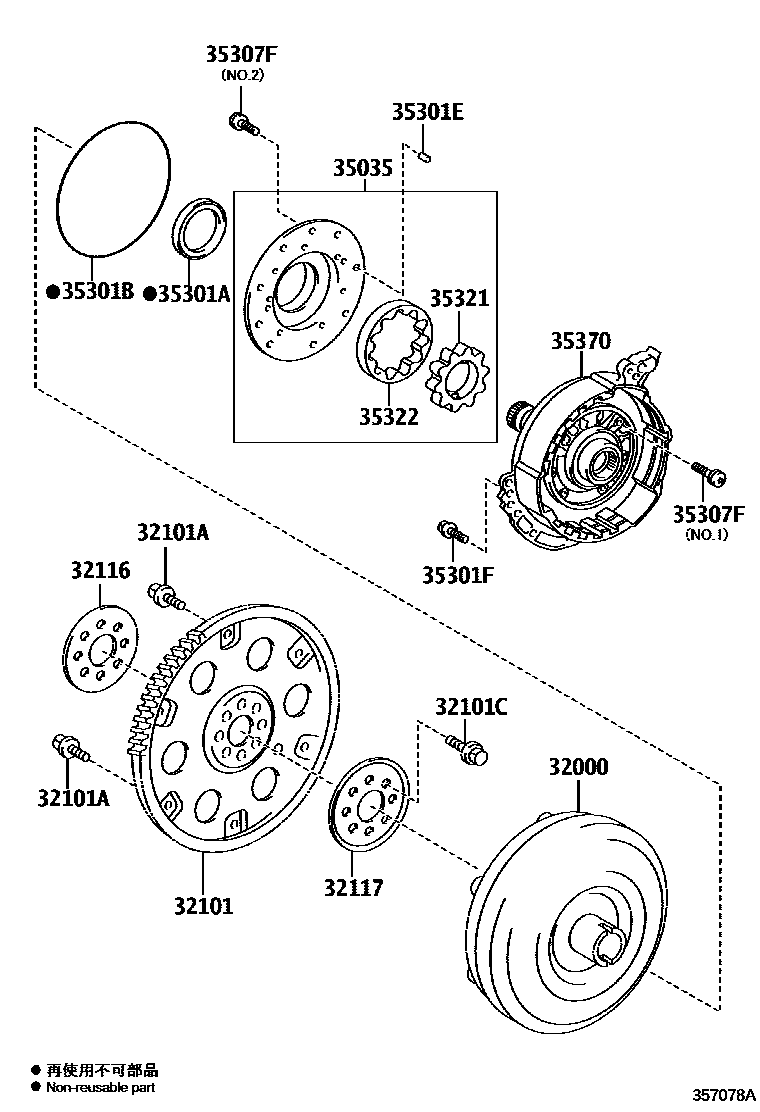

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-33141i201112-201402
TRANSAXLE NO.=XXAXXX
sub32000-33142
main32000-33142i201403-201504
TRANSAXLE NO.=XXAXXX
sub32000-33143
main32000-33143i201811-201903
TRANSAXLE NO.=XXAXXX
main32000-33150i201502-201505
sub32000-33151
main32000-33151i201506-202007
main32000-44040i201112-201504
sub32000-42040
main32000-73011i201112-201402
TRANSAXLE NO.=XXTXXX
sub32000-73012
main32000-73012i201403-201506
TRANSAXLE NO.=XXTXXX
sub32000-73013
main32000-73013i201507-201811
TRANSAXLE NO.=XXTXXX
sub32000-33143
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-06060i201112-202007
(L)
main32101-28040i201112-201504
main32101-73010i201112-202007
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-09001i201112-202007
*9-1.25PX12.4-7.3,BLACK
main90119-09025i201112-202007
*9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-12184i201112-201504
*12-1.25PX22-16
sub90105-12384
main90105-12384i201112-202007
*12-1.25PX21-15
32116SPACER, DRIVE PLATE, FRONT
main32116-20050i201112-202007
32117SPACER, DRIVE PLATE, REAR
main32117-06010i201112-202007
(L)
main32117-20060i201112-202007
(J)
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-12070i201310-201504
main35035-28010i201112-201310
sub35035-12070
main35035-33042i201112-201312
TRANSAXLE NO.=XXAXXX
main35035-33043i201312-201903
TRANSAXLE NO.=XXAXXX
main35035-33050i201502-202007
main35035-73012i201112-201301
TRANSAXLE NO.=XXTXXX
sub35035-33042
main35035-73013i201301-201811
TRANSAXLE NO.=XXTXXX
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38083i201112-201504
main90311-43010i201112-202007
35301BRING, O (FOR FRONT OIL PUMP BODY)
main35697-33010i201112-202007
main90301-99099i201112-201308
main90301-99203i201308-201504
35301EPIN, STRAIGHT (FOR FRONT OIL PUMP)
main90250-08052i201112-202007
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08050i201112-201504
*8-1.25PX28-28
main91551-80835i201112-202007
*8-1.25PX35-22
35307FBOLT (FOR STATOR SHAFT)
main90148-60027i201112-201504
main90148-60067i201112-202007
NO.1
main90148-60068i201112-202007
NO.2
35321GEAR, FRONT OIL PUMP DRIVE
main35321-28060i201112-201504
T=10.715,MARK 1
main35321-28070i201112-201504
T=10.715,MARK 2
main35321-28080i201112-201504
T=10.715,MARK 3
main35321-28090i201112-201504
T=10.715,MARK 4
main35321-28100i201112-201504
T=10.715,MARK 5
main35321-33111i201112-201312
T=11.567,MARK 1,TRANSAXLE NO.=XXAXXX
main35321-33111i201112-201301
T=11.567,MARK 1,TRANSAXLE NO.=XXTXXX
main35321-33121i201112-201312
T=11.567,MARK 2,TRANSAXLE NO.=XXAXXX
main35321-33121i201112-201301
T=11.567,MARK 2,TRANSAXLE NO.=XXTXXX
main35321-33131i201112-201301
T=11.567,MARK 3,TRANSAXLE NO.=XXTXXX
main35321-33131i201112-201312
T=11.567,MARK 3,TRANSAXLE NO.=XXAXXX
main35321-33141i201112-201301
T=11.567,MARK 4,TRANSAXLE NO.=XXTXXX
main35321-33141i201112-201312
T=11.567,MARK 4,TRANSAXLE NO.=XXAXXX
main35321-33151i201112-201301
T=11.567,MARK 5,TRANSAXLE NO.=XXTXXX
main35321-33151i201112-201312
T=11.567,MARK 5,TRANSAXLE NO.=XXAXXX
main35321-33160i201502-202007
T=11.567,MARK A
main35321-33170i201502-202007
T=11.567,MARK B
main35321-33180i201502-202007
T=11.567,MARK C
main35321-33190i201502-202007
T=11.567,MARK D
main35321-73010i201312-201903
T=11.567,MARK 1,TRANSAXLE NO.=XXAXXX
main35321-73010i201301-201811
T=11.567,MARK 1,TRANSAXLE NO.=XXTXXX
main35321-73020i201312-201903
T=11.567,MARK 2,TRANSAXLE NO.=XXAXXX
main35321-73020i201301-201811
T=11.567,MARK 2,TRANSAXLE NO.=XXTXXX
main35321-73030i201301-201811
T=11.567,MARK 3,TRANSAXLE NO.=XXTXXX
main35321-73030i201312-201903
T=11.567,MARK 3,TRANSAXLE NO.=XXAXXX
main35321-73040i201312-201903
T=11.567,MARK 4,TRANSAXLE NO.=XXAXXX
main35321-73040i201301-201811
T=11.567,MARK 4,TRANSAXLE NO.=XXTXXX
main35321-73050i201312-201903
T=11.567,MARK 5,TRANSAXLE NO.=XXAXXX
main35321-73050i201301-201811
T=11.567,MARK 5,TRANSAXLE NO.=XXTXXX
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-28060i201112-201504
T=10.715,MARK 1
main35322-28070i201112-201504
T=10.715,MARK 2
main35322-28080i201112-201504
T=10.715,MARK 3
main35322-28090i201112-201504
T=10.715,MARK 4
main35322-28100i201112-201504
T=10.715,MARK 5
main35322-33110i201112-201312
T=11.567,MARK 1,TRANSAXLE NO.=XXAXXX
main35322-33110i201112-201301
T=11.567,MARK 1,TRANSAXLE NO.=XXTXXX
main35322-33120i201112-201312
T=11.567,MARK 2,TRANSAXLE NO.=XXAXXX
main35322-33120i201112-201301
T=11.567,MARK 2,TRANSAXLE NO.=XXTXXX
main35322-33130i201112-201301
T=11.567,MARK 3,TRANSAXLE NO.=XXTXXX
main35322-33130i201112-201312
T=11.567,MARK 3,TRANSAXLE NO.=XXAXXX
main35322-33140i201112-201312
T=11.567,MARK 4,TRANSAXLE NO.=XXAXXX
main35322-33140i201112-201301
T=11.567,MARK 4,TRANSAXLE NO.=XXTXXX
main35322-33150i201112-201312
T=11.567,MARK 5,TRANSAXLE NO.=XXAXXX
main35322-33150i201112-201301
T=11.567,MARK 5,TRANSAXLE NO.=XXTXXX
main35322-33160i201502-202007
T=11.567,MARK A
main35322-33170i201502-202007
T=11.567,MARK B
main35322-33180i201502-202007
T=11.567,MARK C
main35322-33190i201502-202007
T=11.567,MARK D
main35322-73010i201301-201811
T=11.567,MARK 1,TRANSAXLE NO.=XXTXXX
main35322-73010i201312-201903
T=11.567,MARK 1,TRANSAXLE NO.=XXAXXX
main35322-73020i201301-201811
T=11.567,MARK 2,TRANSAXLE NO.=XXTXXX
main35322-73020i201312-201903
T=11.567,MARK 2,TRANSAXLE NO.=XXAXXX
main35322-73030i201301-201811
T=11.567,MARK 3,TRANSAXLE NO.=XXTXXX
main35322-73030i201312-201903
T=11.567,MARK 3,TRANSAXLE NO.=XXAXXX
main35322-73040i201312-201903
T=11.567,MARK 4,TRANSAXLE NO.=XXAXXX
main35322-73040i201301-201811
T=11.567,MARK 4,TRANSAXLE NO.=XXTXXX
main35322-73050i201301-201811
T=11.567,MARK 5,TRANSAXLE NO.=XXTXXX
main35322-73050i201312-201903
T=11.567,MARK 5,TRANSAXLE NO.=XXAXXX
35370SHAFT ASSY, STATOR
main35370-12110i201310-201504
main35370-28010i201112-201310
sub35370-12110
main35370-33042i201112-201312
TRANSAXLE NO.=XXAXXX
main35370-33043i201312-201903
TRANSAXLE NO.=XXAXXX
main35370-33060i201502-202007
main35370-73012i201112-201301
TRANSAXLE NO.=XXTXXX
sub35370-33042
main35370-73013i201301-201811
TRANSAXLE NO.=XXTXXX
