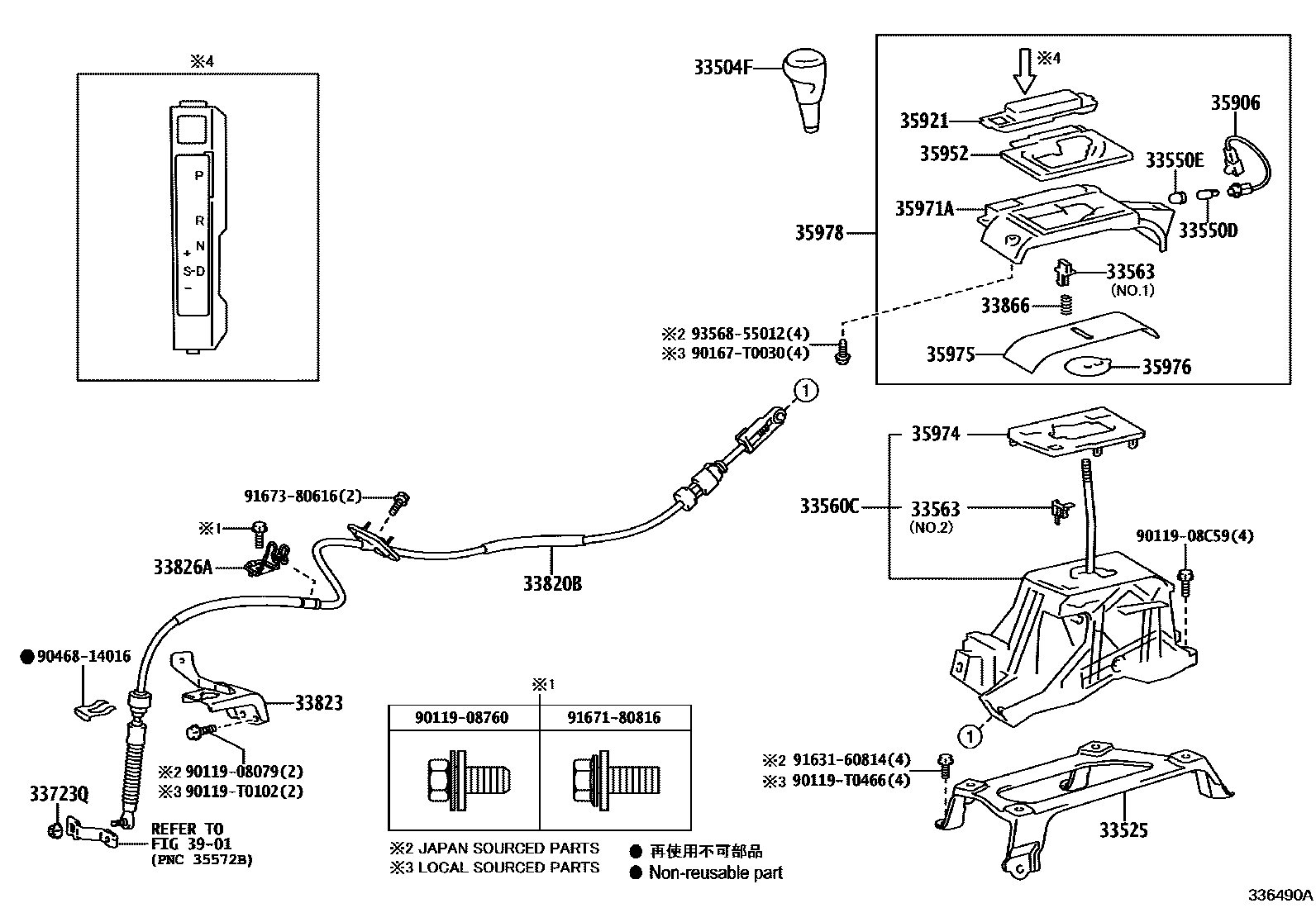

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
LE PACKAGE,BLACK,TRIM2#
BLACK,TRIM0#,2#
SHELL & BLACK,TRIM0#,2#
SHELL & BLACK,TRIM0#,2#
BROWN & BLACK,TRIM0#,2#
SHELL,TRIM0#,2#
sub33504-33121
SHELL,TRIM0#
sub33504-33121
TYPE A:REFER ILLUST.
SHELL & BLACK,TRIM0#,2#
SHELL & BLACK,TRIM0#
SHELL & BLACK,TRIM2#
SHELL & BLACK,TRIM0#,TYPE A:REFER ILLUST.
SHELL & BLACK,TRIM2#,TYPE A:REFER ILLUST.
SHELL & BLACK,TRIM0#,2#,TYPE A:REFER ILLUST.
SHELL & BLACK,TRIM0#
SHELL & BLACK,TRIM00,2#,TYPE A:REFER ILLUST.
SHELL & BLACK,TRIM00,20,TYPE A:REFER ILLUST.
SHELL & BLACK,TRIM20,TYPE A:REFER ILLUST.
SHELL & BLACK,TRIM00,TYPE A:REFER ILLUST.
BROWN & BLACK,TRIM20,TYPE A:REFER ILLUST.
BROWN & BLACK,TRIM00,TYPE A:REFER ILLUST.
BROWN & BLACK,TRIM00,20,TYPE A:REFER ILLUST.
BROWN & BLACK,TRIM0#,4#,TYPE B:REFER ILLUST.
BROWN & BLACK,TRIM2#,TYPE B:REFER ILLUST.
BROWN & BLACK,TRIM2#,4#,TYPE B:REFER ILLUST.
BROWN & BLACK,TRIM0#,TYPE B:REFER ILLUST.
BROWN & BLACK,TRIM0#,2#,TYPE B:REFER ILLUST.
BROWN & BLACK,TRIM00,4#,TYPE B:REFER ILLUST.
BROWN & BLACK,TRIM20,4#,TYPE B:REFER ILLUST.
BROWN & BLACK,TRIM4#,TYPE B:REFER ILLUST.
BROWN & BLACK,TRIM00,TYPE B:REFER ILLUST.
BROWN & BLACK,TRIM20,TYPE B:REFER ILLUST.
BROWN & BLACK,TRIM21,4#,TYPE B:REFER ILLUST.
BROWN & BLACK,TRIM00,21,TYPE B:REFER ILLUST.
SHELL & BLACK,TRIM0#,20,21,TYPE B:REFER ILLUST.
SHELL & BLACK,TRIM0#,2#,TYPE B:REFER ILLUST.
SHELL & BLACK,TRIM00,21,TYPE B:REFER ILLUST.
SHELL & BLACK,TRIM00,2#,TYPE B:REFER ILLUST.
SHELL & BLACK,TRIM20,TYPE B:REFER ILLUST.
SHELL & BLACK,TRIM00,TYPE B:REFER ILLUST.
BROWN & BLACK,TRIM00,TYPE B:REFER ILLUST.
BROWN & BLACK,TRIM20,TYPE B:REFER ILLUST.
BROWN & BLACK,TRIM0#,TYPE B:REFER ILLUST.
BROWN & BLACK,TRIM0#,2#,TYPE B:REFER ILLUST.
BLACK,TRIM0#,2#
33525SUPPORT, SHIFT LEVER
33550DBULB, POSITION INDICATOR LAMP
12V 2.0W
12V 2.0W,LE PACKAGE
12V 1.2W W/O SOCKET
33550ECAP, POSITION INDICATOR LAMP
LE PACKAGE
33560CLEVER ASSY, SHIFT, LOWER
LE PACKAGE
2.0E SPECIAL PACKAGE
SINGAPORE SPEC OR BRUNEI SPEC
2.5Q PACKAGE
33563BUTTON, SHIFT LOCK RELEASE
LE PACKAGE,NO.2
NO.2
NO.2
NO.1
LE PACKAGE,NO.1
NO.1
NO.2
2.5Q PACKAGE
NO.2
NO.1
33723QNUT (FOR CONNECTING ROD SWIVEL)
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33826ABRACKET, TRANSMISSION CONTROL CABLE, NO.2
33866SPRING, SHIFT LOCK RELEASE
LE PACKAGE
35906WIRE SUB-ASSY, INDICATOR LAMP
LE PACKAGE
35921PLATE, CONTROL POSITION INDICATOR
LE PACKAGE
35952LENS, POSITION INDICATOR
LE PACKAGE
35971AHOUSING, POSITION INDICATOR, UPPER
LE PACKAGE
35974HOUSING, POSITION INDICATOR, LOWER
LE PACKAGE
35975COVER, SLIDE (FOR POSITION INDICATOR)
LE PACKAGE
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
LE PACKAGE
35978INDICATOR, SHIFT POSITION
LE PACKAGE
SINGAPORE SPEC
BRUNEI SPEC
SINGAPORE SPEC
2.0G S PACKAGE
sub35978-33300
S PACKAGE
2.5G S PACKEGE
2.5Q PACKAGE
3901
9011908079
main90119-08079
9011908760
main90119-08760
9011908C59
main90119-08C59
90119T0102
main90119-T0102
90119T0466
main90119-T0466
90167T0030
main90167-T0030
9046814016
main90468-14016
9163160814
main91631-60814
9167180816
main91671-80816
9167380616
main91673-80616
9356855012
main93568-55012
31 parts on this diagram · 8 diagrams in section
