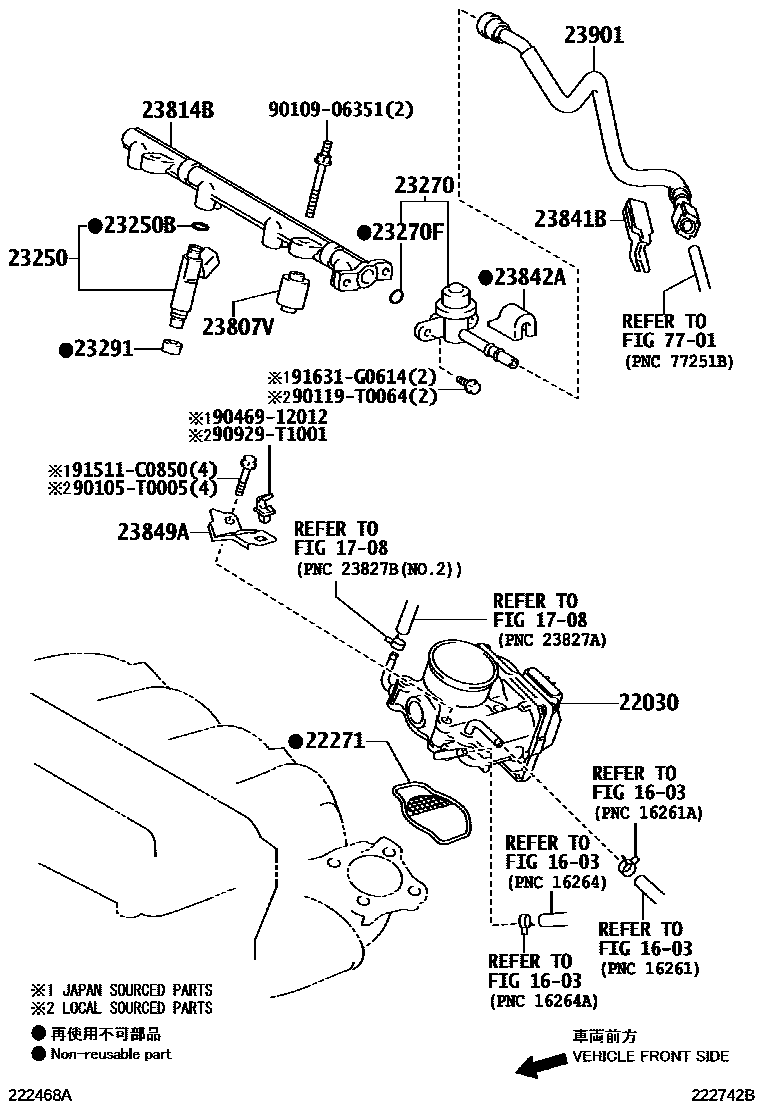

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1603

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0V010i2ARFE..ASV50..IDN,MA,PHL,TH201303-201809

(L),*286

main22030-0V020i6ARFSE..ASV51201502-202007

main22030-0V030i2ARFXE..AVV50..TAIW201202-201809

main22030-0V040i2ARFE..ASV50..TAIW201112-201503

main22030-28071i1AZFE..ACV51201112-201504

main22030-36010i2ARFE..ASV50..IND,VN201203-201903

*107

main22030-36010i2ARFE..ASV50..IDN,MA,PHL,TH201303-201809

(J),*286

main22030-36020i2ARFXE..AVV50..MA,TH201504-201811

*107

main22030-36020i2ARFXE..AVV50..IND201203-201504

main22030-36020i2ARFXE..AVV50..MA,TH201303-201809

*286

22271GASKET, THROTTLE BODY

main22271-0T010i6ARFSE..ASV51201502-202007

main22271-0V020i2ARFE..ASV50..TAIW201112-201309

main22271-28020i1AZFE..ACV51201112-201504

main22271-36010i2ARFE..ASV50..IDN,MA,PHL201203-201903

*107

main22271-36010i2ARFE..ASV50..IDN,MA,PHL,TH201303-201809

*286

main22271-36010i2ARFE..ASV50..TAIW201309-201503

main22271-36020i2ARFXE..AVV50..TAIW201202-201809

main22271-36020i2ARFXE..AVV50..TH201303-201809

*286

main22271-36020i2ARFXE..AVV50..IND201504-201811

*107

23250INJECTOR ASSY, FUEL

main23209-09175i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201303-201809

(L),*286

main23209-09230i2AR#..ASV50,AVV50..TAIW201112-201809

main23209-0H070i1AZFE..ACV51201112-201504

main23209-39175i2AR#..ASV50,AVV50..IND,VN201203-201903

*107

main23209-39175i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201303-201809

(J),*286

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i2AR#..ASV50,AVV50..IND,VN201203-201903

*107

main90301-07037i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201303-201809

(J),*286

main90301-07037i1AZFE..ACV51;2AR#..ASV50,AVV50..TAIW201112-201512

main90301-07037i6ARFSE..ASV51;2ARFXE..AVV50..TAIW201512-202007

(J)

main90301-A0036i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201303-201809

(L),*286

main90301-C0072i6ARFSE..ASV51;2ARFXE..AVV50..TAIW201512-202007

(L)

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28052i1AZFE..ACV51..MA,TAIW,VN201112-201504

main23270-36031i2ARFE..ASV50..IDN,MA,PHL,TH201203-201903

*107

main23270-36031i2ARFE..ASV50..TAIW201112-201503

main23270-36031i2ARFE..ASV50..IDN,MA,PHL,TH201303-201809

*286

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2ARFE..ASV50..IDN,MA,PHL,TH201303-201809

*286

main90301-07037i1AZFE..ACV51;2ARFE..ASV50..TAIW201112-201504

main90301-07037i2ARFE..ASV50..IDN,MA,PHL201203-201903

*107

23291INSULATOR, INJECTOR VIBRATION

main23291-0H020i1AZFE..ACV51201112-201208

(L)

main23291-0V010i2AR#..ASV50,AVV50..TAIW201112-201809

(L)

main23291-0V010i6ARFSE..ASV51201502-202007

main23291-23010i1AZFE..ACV51201208-201504

main23291-28020i2AR#..ASV50,AVV50..TAIW201112-201809

(J)

main23291-28020i2ARFE..ASV50..TH201303-201809

*286

main23291-28020i2AR#..ASV50,AVV50..IND,VN201203-201903

*107

main23291-41010i1AZFE..ACV51201112-201208

(J)

23807PIPE SUB-ASSY, FUEL DELIVERY

main23800-0V010i6ARFSE..ASV51201502-202007

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08053i1AZFE..ACV51201112-201504

23814BPIPE, FUEL DELIVERY

main23814-0V010i6ARFSE..ASV51201502-202007

main23814-28031i1AZFE..ACV51..MA,TAIW,VN201112-201504

sub23814-28060

main23814-36010i2ARFE..ASV50..TAIW201112-201503

sub23814-36040

main23814-36010i2ARFE..ASV50..IDN,IND,MA,PHL,VN201203-201501

*107

sub23814-36040

main23814-36010i2ARFE..ASV50..IDN,MA,PHL201303-201501

*286

sub23814-36040

main23814-36040i2ARFE..ASV50..IDN,MA,PHL201501-201809

*286

main23814-36040i2ARFE..ASV50..IND,VN201504-201903

*107

main23814-36040i2ARFE..ASV50..IND,VN201501-201504

main23814-36050i2ARFXE..AVV50..TH201202-201809

main23814-36050i2ARFXE..AVV50..TH201303-201809

*286

main23814-36050i2ARFXE..AVV50..IND201504-201811

*107

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31070i2ARFXE..AVV50;2ARFE..ASV50..IDN,IND,MA,PHL,TH,VN201112-201903

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-31070i6ARFSE..ASV51201502-202007

main23842-28010i2ARFXE..AVV50;2ARFE..ASV50..IDN,IND,MA,PHL,TH,VN201112-201903

23849ASUPPORT, FUEL PIPE

main23849-28050i1AZFE..ACV51201112-201504

23901TUBE SUB-ASSY, FUEL

main23901-0H170i1AZFE..ACV51201112-201504

main23901-0V080i2ARFXE..AVV50..IND,TH201203-201811

main23901-0V090i2ARFE..ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main23901-0V210i6ARFSE..ASV51201502-202007

main23901-36050i2ARFXE..AVV50..TAIW201202-201809

main23901-36060i2ARFE..ASV50..TAIW201112-201503

7701

90105T0005

main90105-T0005

9010906351

main90109-06351

90119T0064

main90119-T0064

9046912012

main90469-12012

90929T1001

main90929-T1001

91511C0850

main91511-C0850

91631G0614

main91631-G0614

24 parts on this diagram · 4 diagrams in section
