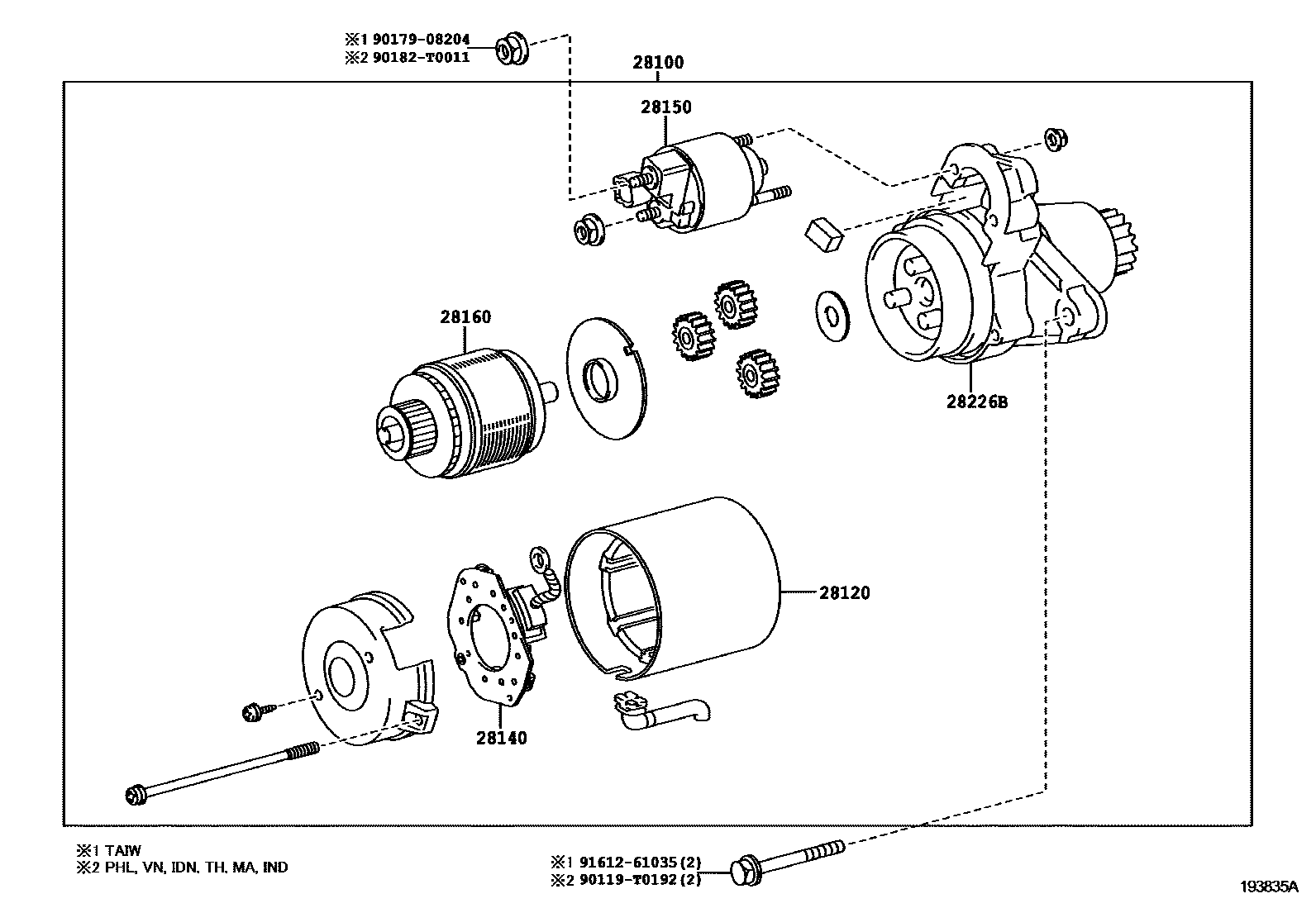

STARTER

28100STARTER ASSY

main28100-31090i1AZFE,2ARFE..ACV51,ASV50201112-202007

12V 1.6KW

28120YOKE ASSY, STARTER

main28120-31090i1AZFE,2ARFE..ACV51,ASV50201112-202007

28140HOLDER ASSY, STARTER BRUSH

main28140-31090i1AZFE,2ARFE..ACV51,ASV50201112-202007

28150SWITCH ASSY, MAGNET STARTER

main28150-31090i1AZFE,2ARFE..ACV51,ASV50201112-202007

28160ARMATURE ASSY, STARTER

main28160-37050i1AZFE,2ARFE..ACV51,ASV50201112-201907

sub28160-75210

main28160-75210i6ARFSE..ASV51201907-202007

28226BSTARTER KIT, REPAIR SERVICE

main28226-31090i1AZFE,2ARFE..ACV51,ASV50201112-202007

90119T0192

main90119-T0192

9017908204

main90179-08204

90182T0011

main90182-T0011

9161261035

main91612-61035

10 parts on this diagram · 1 diagram in section
